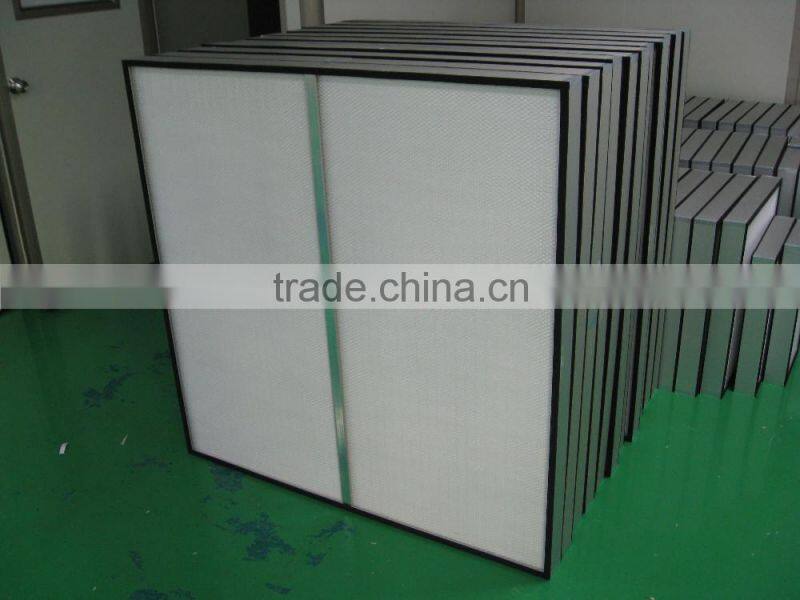

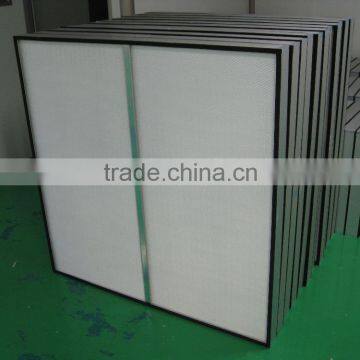

H13 Hepa Filter/Mini-Pleat Panel Air Filter for air filtration equipment
Frame: aluminium alloy frame or galvanized iron.
Separator: hot melt adhesive
Sealant: polyurethane
Max. operating temperature: 70℃
Max. relative humidity: 100% RH
Final resistance: 600Pa(suggested)
Efficiency:H11(EN1822)≥95% at MPPS
H13(EN1822)≥99.5% at MPPS
H14(EN1822)≥99.995% at MPPS
Model | L (mm) | W (mm) | H (mm) | Filter area (m2) | Rate air flow /Initial pressure | Efficiency | ||
0.45 m/s | 0.75 m/s | EN1822 | ||||||
F302-1 | 305 | 610 | 69 | 4.8 | 300 / 115 | 500 / 195 | H13 | |
F302-2 | 610 | 610 | 69 | 9.7 | 600 / 115 | 1000 / 195 | H13 | |
F302-3 | 762 | 610 | 69 | 12.2 | 750 / 115 | 1250 / 195 | H13 | |
F302-4 | 915 | 610 | 69 | 14.6 | 900 / 115 | 1500/ 195 | H13 | |
F302-5 | 1220 | 610 | 69 | 19.5 | 1200 / 115 | 2000 / 195 | H13 | |
F302-6 | 305 | 610 | 90 | 6.6 | 300 / 85 | 500 / 145 | H13 | |
F302-7 | 610 | 610 | 90 | 13.2 | 600 / 85 | 1000 / 145 | H13 | |
F302-8 | 762 | 610 | 90 | 15.2 | 750/85 | 1250/145 | H13 | |
F302-9 | 915 | 610 | 90 | 19.9 | 900/85 | 1500 / 145 | H13 | |
F302-10 | 1220 | 610 | 90 | 26.6 | 1200/85 | 2000 / 145 | H13 | |
F302-11 | 305 | 610 | 110 | 8.7 | 300/50 | 500 / 85 | H13 | |
F302-12 | 610 | 610 | 110 | 17.5 | 600 /50 | 1000 / 85 | H13 | |
F302-13 | 762 | 610 | 110 | 21.9 | 750/50 | 1250/ 85 | H13 | |
F302-14 | 915 | 610 | 110 | 26.3 | 900 /50 | 1500 / 85 | H13 | |
F302-15 | 1220 | 610 | 110 | 35.2 | 1200 /50 | 2000 / 85 | H13 | |
High efficiency
Low resistence
Light weight and energy efficient
Large dust capacity
High air flow rate
Easy install
Reliable construction strength
1. Biopharmaceutical industry, hospital, electronics, semiconductor and the locale required the high cleanliness air.
2. The terminal air vent of cleaning room and purification equipment.
| Packing & Shipping |
| Office and Exhibition |

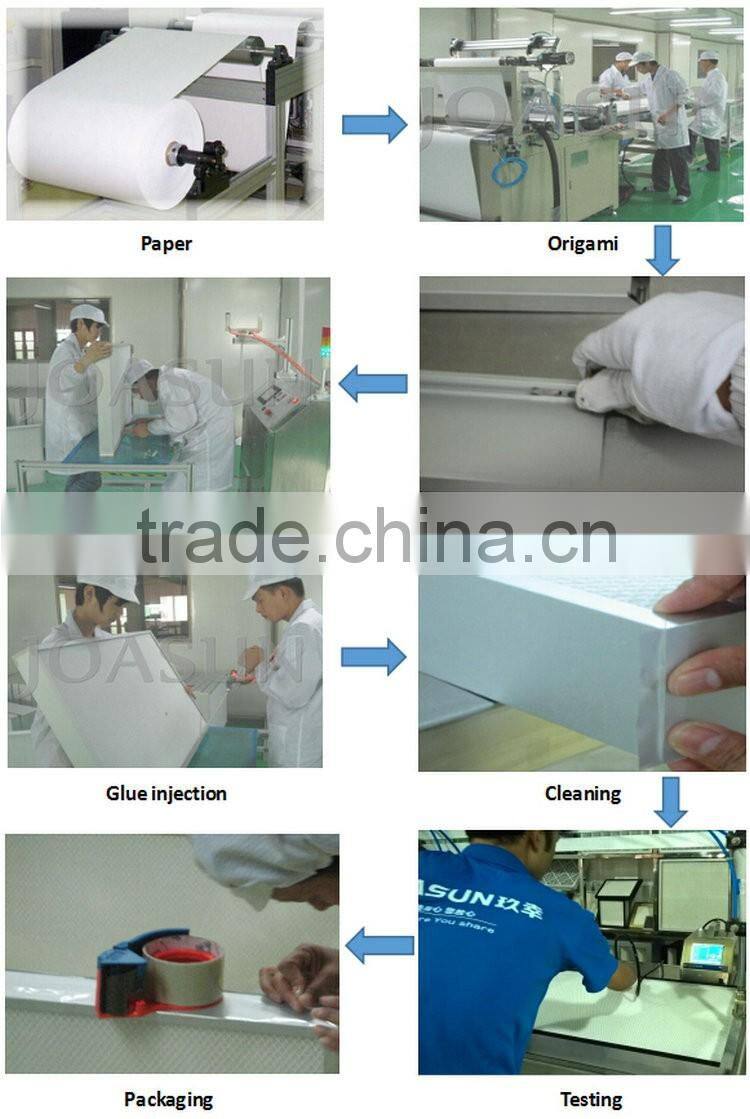

| Production Process |
