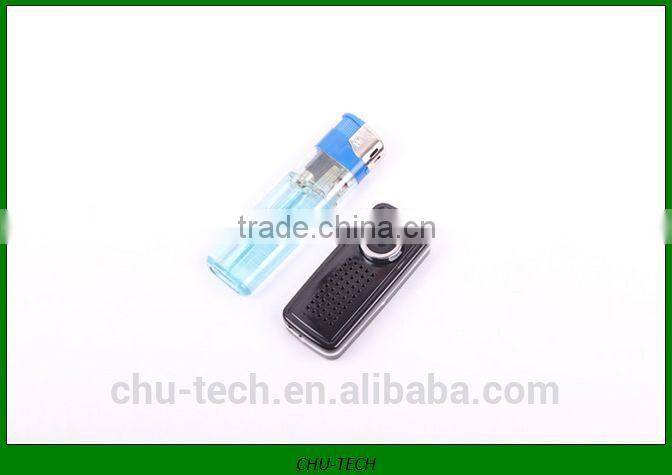

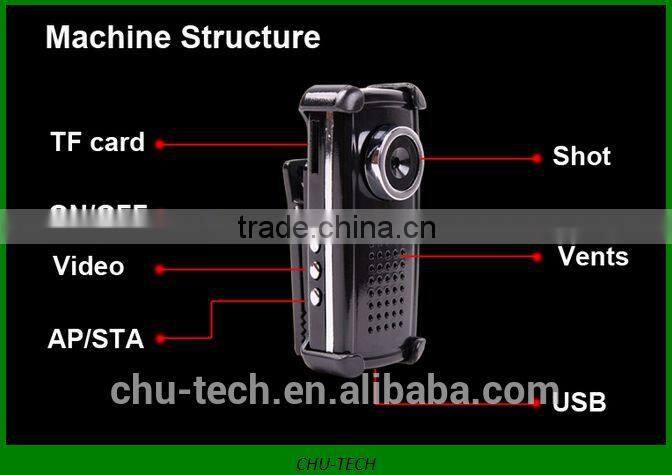

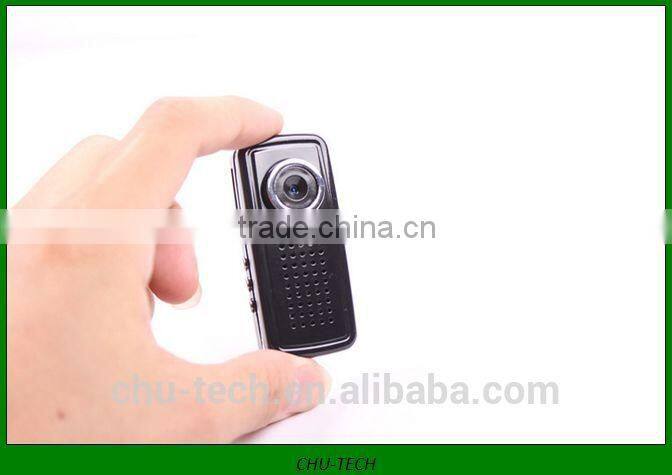

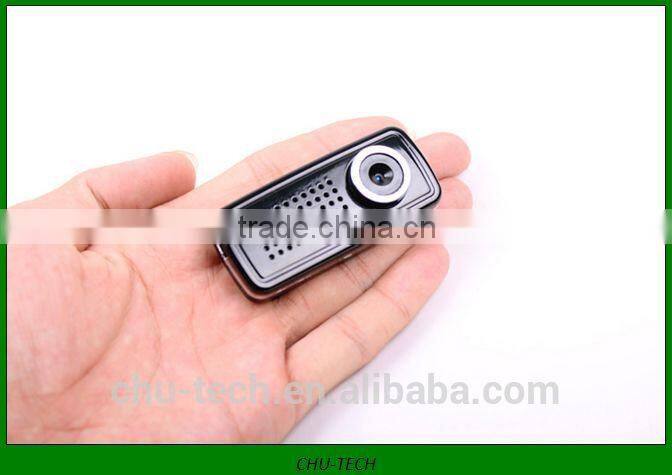

1080P WIFI REMOTE WIRELESS HIDDEN CAMERA WIFI MINI DV

Pickup device

1/4″Progressive Scan CMOS

 Resolution

1920*1080 1280*720 640*480

minimum illumination

0.1LUX

SNR

≥50db

gain control

auto

WB

auto

 Board Mount

 Board Mount

video

AVC

H.264

Video resolution

Main stream  1920*1080   Secondary stream  1280*720, 640*480, 320*240

Frame rate/bit rate

Main stream:1-30frame/sec  Secondary stream 1-30frame/sec 256Kbps - 4Mbps custom

Audio

Audio Compression

PCM/MP3

Network

IP

TCP/IP  HTTP   DHCP  DNS  PPPoE  NTP  SNMP  DDNS  SMTP  RTP

NI

 WIFI 802.11b/g/n

RS-485port

1 way, half-duplex RS-485, supports transparent channel connection

port

Audio input

1 way Line In    3.5mmaudio port

Audio output

1 way Line Out   3.5mmaudio port

I/0port

6pin Screwless terminals, One alarm input ports, one alarm output interface, RS485 interface

Local Storage

1 TF card slot, support TF memory card standard, maximum support 32GB capacity

Function

Motion detector

Supports hardware multi-window, multi-zone, do not take up system resources

Dual-stream

support

Video block

Support video area shelter

DNS

Online free dynamic DNS service

Alarm Detection

Motion detection, video loss, network disconnection, screen shield, sensors linkage

Alarm function

Linkage alarm output, the client alerts

General Specifications

Operating Temperature

-10  ~ +50

Humidity

less90%(Non-condensing)

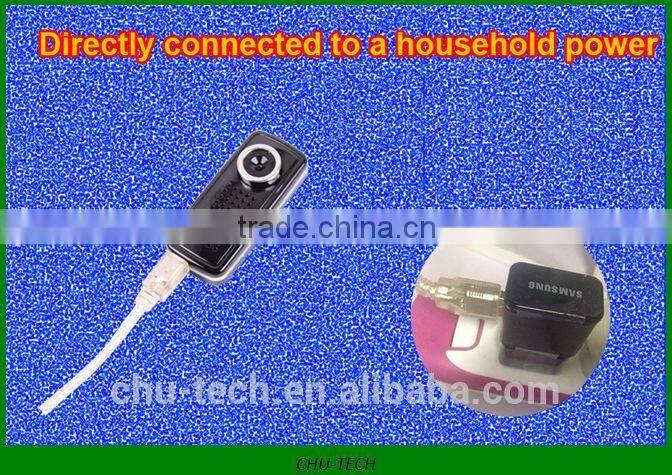

Power Supply

DC5V/2A adapter

Power consumption

≤5W

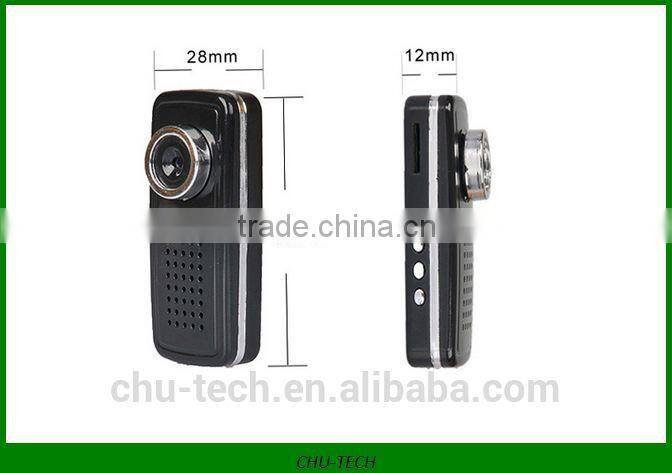

Size

60mm×25mm×12mm

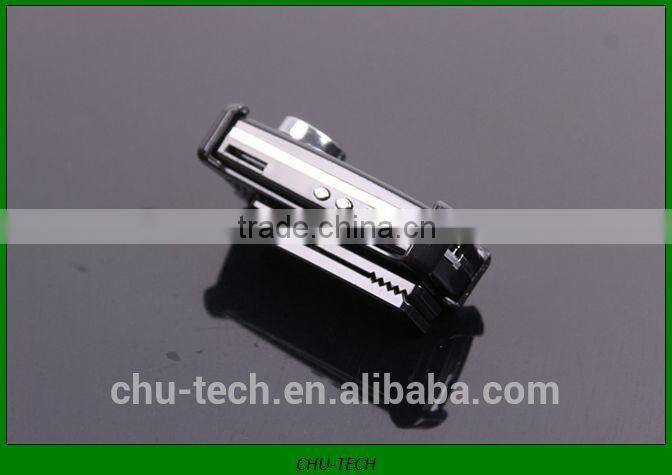

Installation

Clip portable indoor installation
