Help CenterDual Cone Verticle Bead Mill
Related Products
Specifications
1.dual cone verticle bead mill2.dynamic fence discharging
3.spiral cooling
4.German Burgmann mechanical seal
ESZ Dual-cone Verticle Bead Mill
| Model | ESZ Verticle Dual-Cone Bead Mill | ||||||
| Power Supply | 380v, 50Hz(can be customized) | ||||||
| Power | 18.5~55kw | ||||||
| Rotation Speed | 1500rpm | ||||||
| Type | Open & Closed | ||||||
| Material of Driver | Special high abrasion-resistance steel | ||||||
| Application | Paint, Ink, Pigment,color paste, dye, | ||||||
| Features | 1.Germann Burgmann machenical seal, it can bear more than 10kgs pressure,but usually the pressure of the grinding material is less 4kgs,successfully avoids the leaking problem | ||||||
| 2. ELE machine use dynamic fence booms discharge,solve the traditional problems, such as discharge slowly,stuck the grinding mediums and so on. | |||||||
| 3. Spiral cooling, take most of the heat produced by the high viscosity materia | |||||||
| 4. The verticle dual-cone bead mill designed with unique structure, high grinding efficiency. | |||||||
More Parameters
| Model | Volume of Grinding Tank /L | Main Power/kw | Rotation/rpm | CapacityL/h | Dimention /mm | Weight /kg |
| ESZ-8 | 8 | 18.5 | 1500 | 60-140 | 950X650X600 | 1050 |
| ESZ-12 | 12 | 22 | 1500 | 80-160 | 1300X750X700 | 1150 |
| ESZ-15 | 15 | 30 | 1500 | 90-180 | 1600X850X800 | 1300 |
| ESZ-30 | 30 | 55 | 960 | 120-260 | 1950X1150X1000 | 1750 |

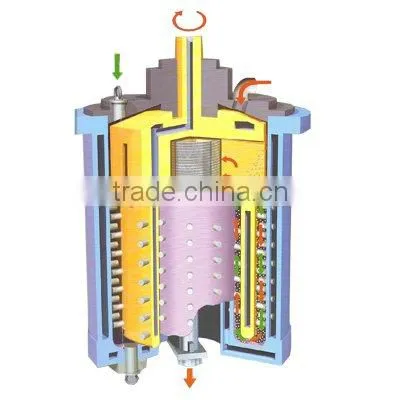

Working Principle
Remarks: The red arrow in stead of materials working in the grinding tank.
The green arrow in stead of media circulate in the tank.
Working Process:
The material is input by pump, the outer rotor is ring division. The gap between stator and rotor is very narrow, the slot on the rotor make turbulence by the materials and the media that separate by the centrifugal force, that make effective pre-disperse. The materials and media circulate together in the cone grinding area. The interaction of the rotor and pin on the stator, the material is continuously shocked by the media, the material with media down to the bottom and then fold to the inner grinding area, the materials is deeper even dispersed after sheared in the inner narrow gap, that can ensure the materials stay longer time in the Bead Mill within a time.
Because of the wide proportion gap between material and media, the media and material is separated by the centrifugal force, then the media pass through the trough mouth into the guidance area then remix with the material, this ensure the media circulate between the inner and outer narrow gap.
