Specifications
three roller milling machineexcellent grinding effect
high production effeciency
rich bending shape
best service

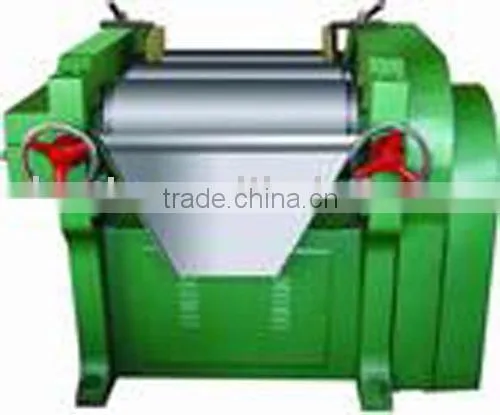

Three Roller Milling Machine
Application
This machine apply to materials with high viscosity or paste whih is poor mobility and need high requirement of final fineness. After our constantly improvement and optimize, ELE developed EGM Series three roller milling machine with uniqued performance in production.
Features
- Unique even roller ensure the excellent grinding effect.
- Flexible and stable performance
- Roller is made of cold cast alloy
- Three rollers have 3 working conditions:
1. break away from each other, easy to clean
2. two rollers tightly together and one roller break away to grind the material
3.Three rollers tightly together to disperse and discharge product.
- with automated device, effectively preventing the wrong side of the ocurrence
- use direct pressure on the end of materials, it is convenient to control the remaining straight edge.
- use the rear bending process, eliminate curved toward the front of the dorsal hom
- rolling products straightness, upper roll set drum-shaped, with side roller regulation, produts straightness control within 1/2000, it is particular beneficial to small-diameter cylinders, ensure the following operations welding smoothly, guarantee welding quality.
Parameters
|
Model |
Diameter of Roller /mm |
Main Power/kw |
Length of Roller/mm |
Low Speed /rpm |
Medium -Speed /rpm |
High Speed /rpm |
Height of discharge port /mm |
EGM-65 |
65 |
0.75 |
136 |
26 |
70 |
145 |
220 |
EGM-150 |
150 |
2.2 |
300 |
34 |
78 |
181 |
530 |
EGM-260 |
260 |
7.5 |
675 |
23 |
64 |
183 |
530 |
EGM-405 |
405 |
15 |
810 |
14 |
42 |
130 |
760 |
EGM-405II |
405 |
22 |
1000 |
14 |
42 |
130 |
760 |
We also have other grinding machines:
