Specifications
Mixer Type: Powder MixerWorking: Shear Mixer
Additional Capabilities: Drying
Application: Powder
Lead Time: 30-45days

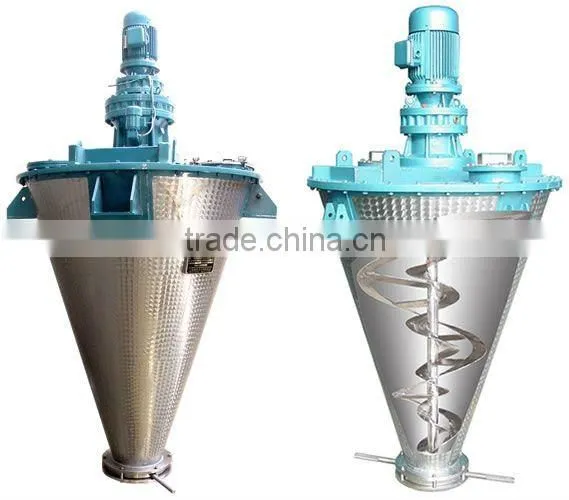

EGS Nauta Mixer/Blender, Powder Mixer, Mixing Machine, Mixing Blender
General Introduction
Conical screw mxier is suitable for powder-powder and powder with moisture product, especially good for mixing two or more than two powders with similar gravity specific. It is widely used for putty and sand, dyestuff and pigment, battery materials, pharmaceutical, food, chemical industrial, etc.
Working Principle
Conical screw mixer uses two asymmetric cantilever spirals to mix. The two spirals are different in length, and rotate on their own axis (rotation) while rotating on the central axis of the conical container. Also, they make planetary movement (revolution) near the wall of the conical container with the help of gyration of swiveling jib. Repeated lift of materials in the conical container, caused by revolution and rotation of spirals, coupled with shearing, convection, proliferation and other complex movement, could have materials mixed.
Feature
1) Double-motor or Single -motor for option
2) Material: Carbon Steel, ss304 or 316 stainless steel
3) Discharge: bottom discharge, completely discharge.
Technical Parameters
Model |
Total Volume (M³) |
Loading Ratio |
Power (kw) |
Dimension (mm) Diameter* Height |
Weight (kg) |
EGS-0.06 |
0.06 |
0.4-0.6 |
1.5 |
φ630×1451 |
150 |
EGS -0.1 |
0.1 |
0.4-0.6 |
1.5 |
φ715×1569 |
250 |
EGS -0.3 |
0.3 |
0.4-0.6 |
2.2 |
φ920×1960 |
550 |
EGS -0.5 |
0.5 |
0.4-0.6 |
3 |
φ1140×2320 |
600 |
EGS -1 |
1 |
0.4-0.6 |
4 |
φ1480×2895 |
1200 |
EGS -1.5 |
1.5 |
0.4-0.6 |
5.5 |
φ1633×3210 |
1350 |
EGS -2 |
2 |
0.4-0.6 |
5.5 |
φ1816×3495 |
1500 |
EGS -3 |
3 |
0.4-0.6 |
7.5 |
φ2040×3760 |
2300 |
EGS -4 |
4 |
0.4-0.6 |
11 |
φ2250×4425 |
2520 |
EGS -6 |
6 |
0.4-0.6 |
15 |
φ2548×4940 |
3000 |
EGS -8 |
8 |
0.4-0.6 |
18.5 |
φ2780×5360 |
4500 |
EGS -10 |
10 |
0.4-0.6 |
22 |
φ3018×5815 |
5500 |
EGS -12 |
12 |
0.4-0.6 |
22 |
φ3204×6100 |
5900 |
EGS -15 |
15 |
0.4-0.6 |
30 |
φ3442×6540 |
6600 |
EGS -20 |
20 |
0.4-0.6 |
37 |
φ3805×7420 |
9800 |
