Plough Powder Grinding Mixers

Plough Powder Grinding Mixers photo-1
US$ 2,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Mixer Type:
Other, Plough Shear
Application:
Liquid with Suspended Solids
Additional Capabilities:
Drying
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Mixer Type Other, Plough Shear
Application Liquid with Suspended Solids
Additional Capabilities Drying
Place of Origin Shanghai, China
Brand Name ELE
Model Number EGL
Certification CE,ISO
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Plough Shear Mixer, Powder Mixer, Powder Blender,

Mixing Machine, Paddle Mixer, Ribbon Mixer







General Intruduction

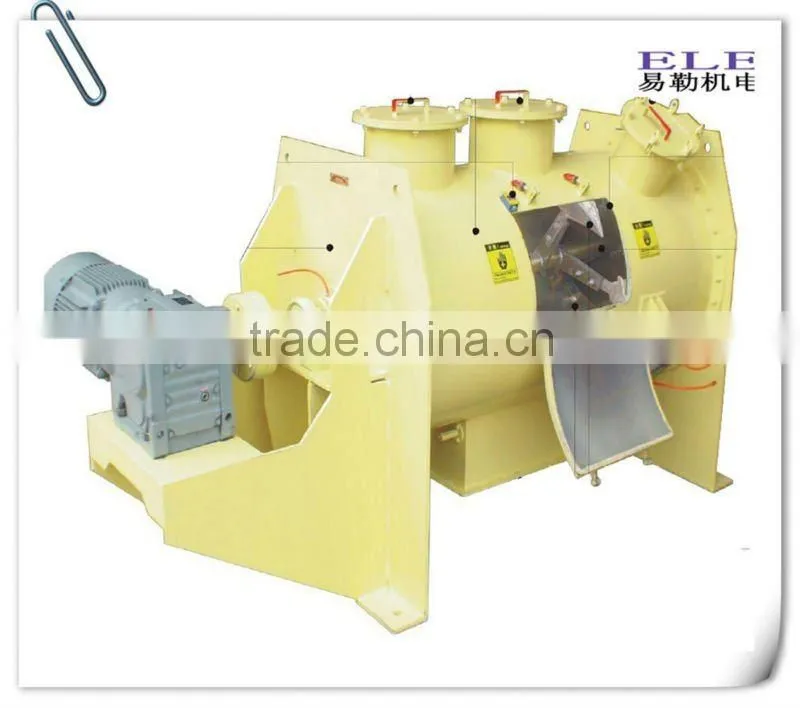

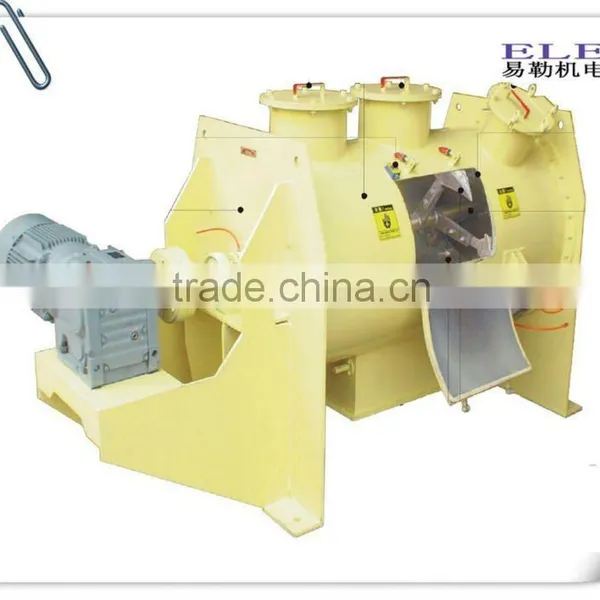

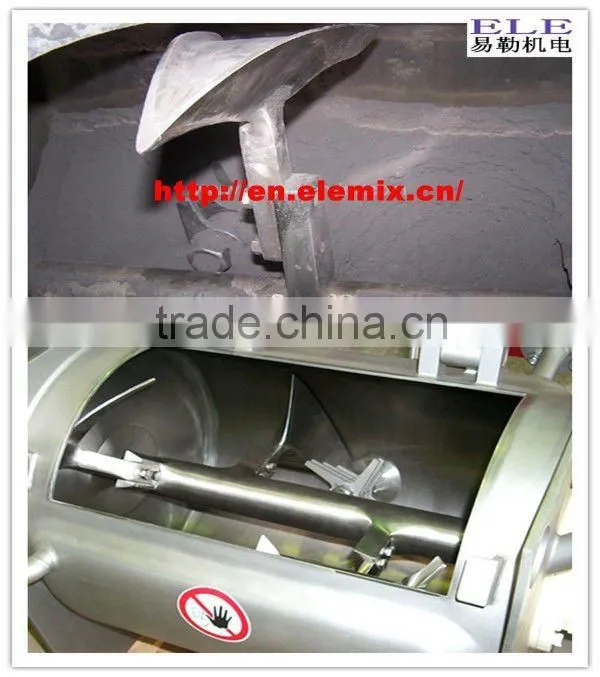

This kind of powder mixer/blender consists of transmission mechanism, horizontal cylinder,

coulter and flying cutter. Under the coulter's role, the material makes convection movement along with the cylinder and cast by flying cutter with high speed rotation when passingby it, achieving

uniform mixing in the shorter time. It can apply to much mix of solid and liquid and some

compound process such as creating wet powder and drying, especially to the mix of viscosity or

colloid additive.



 Total Volume(M³):0.1-15



 Plough Powder grinding Mixers



Application

EGL plough shear mixer can be used for complex processes such as solid-solid (powder-powder) mixing, solid-liquid(adding small amounts of water to powder), making wet granules, and drying in the chemical, medicine, pesticide, veterinary medicine, food, feedstuff, feedstuff additive and plastic industries; especially for the mixing of sticky or glutinous additives.



 Plough Powder grinding Mixers



Technical Parameters

Model

Total Volume

(M³)

  Loads

Coefficient



Power

(KW)

Size(mm): Max-diameter ×Height

Weight

(kg)

EGL-o.1

0.1

0.4-0.6

3

1270×865×850

430

EGL -0.3

0.3

0.4-0.6

4

2070×1050×1150

950

EGL -0.5

0.5

0.4-0.6

5.5

2180×1200×1300

1100

EGL -1

1

0.4-0.6

11

2830×1620×1550

1800

EGL -2

2

0.4-0.6

18.5

3420×1810×1758

2520

EGL -3

3

0.4-0.6

18.5

3420×2045×1983

3200

EGL -4

4

0.4-0.6

22

4200×2140×2123

4836

EGL -6

6

0.4-0.6

30

4680×2290×2448

8775

EGL -8

8

0.4-0.6

45

5560×2390×2608

9360

EGL -10

10

0.4-0.6

55

5140×2390×2850

9750

EGL -12

12

0.4-0.6

55

5720×3110×2960

10660

EGL -15

15

0.4-0.6

75

5920×3280×3140

11050











Other Kinds of Powder Mixers







 Plough Powder grinding Mixers









Plough Powder grinding Mixers



Plough Powder grinding Mixers
