Wate in Oil Emulsifier

US$ 500 - 900 MOQ: 1 Set

Key Specifications

Mixer Type:

Homogenizer

Application:

Viscous Fluid

Additional Capabilities:

Other, Mixing

Shanghai ELE Mechanical & Electrical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Mixer Type Homogenizer

Application Viscous Fluid

Additional Capabilities Other, Mixing

Place of Origin Shanghai, China

Brand Name ELE

Model Number ESR-500

Specifications

1.lab homogeneous mixer
2.rotation:0-28000rpm
3.capacity 10-1000ml
4.power supply 200w,50Hz
5.manual lift

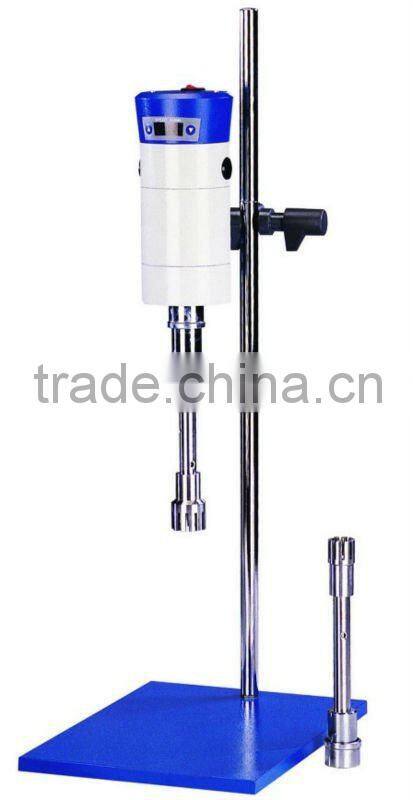

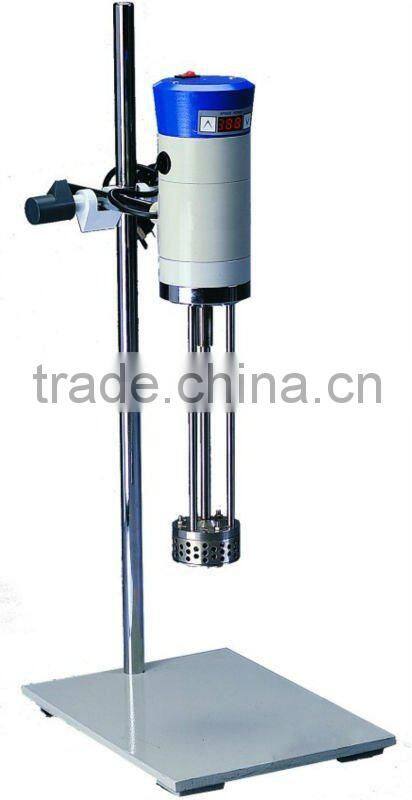

ESR-300/500 Lab High Shear Emulsifier, Lab Homogenizer

Description

The lab high shear homogenizer/emulsifier is widely used in the lab experimentation, to test or

develop new product. With small size, high price-quality ratio and easy to operate.

Technical Parameters

Model	ESR-300
Motor	Force cool wind, precision motor
Power	300W
Power Supply	220V 50Hz
Capacity	300-8000ml
Rotation Speed	200~15000rp/min
Speed Control	Stepless speed regulation
Working Head	Φ70 (three kinds of statos,srectangle,round and mesh)
Lift Model	Manual lifting
Material	Contact parts SUS304/ SUS316L
Axle Sleeve	PTFE
Falsework	Stainless steel or carbon steel
Dimension	28×36×73cm
Weight	18kgs

Model	ESR-500
Motor	Force cool wind, precision motor
Power	500W
Power Supply	220V 50Hz
Capacity	300-8000ml
Rotation Speed	200~15000rp/min
Speed Control	Stepless speed regulation
Working Head	Φ70(three kinds of stator,rectangle,round,mesh)
Lift Model	Manual lifting
Material	Contact parts SUS304/ SUS316L
Axle Sleeve	PTFE
Falsework	Stainless steel or carbon steel
Dimension	28×36×73cm
Weight	18kgs

Other similar models of Lab Homogenizers

Model		ESB-300 Lab Homogenizer
Power Supply		220v, 50Hz(can be customized)
Power		300W
Rotation Speed		0-28000rpm
Process Capacity		10-1000mL
Control		stepless speed control, with digital display, can work longtime
Lift		Manu lift
Dispersing Head		each of Φ18,Φ25
Material		the part contact with the material is SUS304,SUS316L
Falsework		stainless steel, carbon steel
Axle Sleeve		PTFE
Dimention		253572cm
Weight		14kgs
Package		Carton
Application		To disperse,emulsify and homogenize slight materials.Widely used in the lab to do the experimentation,produce the model,and develope new product.
Features		Claw-type structure,two-way suction,low noise,it can work long hours,the dispersing tool can be take-down quickly and convenient to clean.
