Home > Products > High Speed Disperser Mixer > high quality paint machine
high quality paint machine
- 200 Set / Sets per Month
- Shanghai Guangzhou etc.
- T/T Credit Card
Product Details
Condition: | New | Mixer Type: | Other, Dispersing Disc | Product Type: | Paint |
Application: | Other, Viscous Fluid, Paint, Coating, Ink, Pigment and so on | Additional Capabilities: | Other, Dispersing and Mixing | Place of Origin: | Shanghai, China |
Brand Name: | ELE | Model Number: | EBF-11 paint machine | Max. Loading Capacity: | Depends on the Capacity |
Voltage: | 380V,220V or 415V | Power(W): | 11KW | Dimension(L*W*H): | 1100*500*1014()MM0 |
Certification: | CE | Warranty: | One Year |
Product Description
Specifications
1.Paint making machine2.Hydraulic or Pneumatic Lift
3.Ex-proof or Non ex-proof
4. Used for paint, ink, coating, pigment
EBF Series High Speed Disperser, High Speed Dissolver, Mixing Machine for Paint, Coating, Ink, Pigment, Paste, Slurry, High Speed Disperser,
Paint Making Machine, paint machine
Description
High speed disperser applies to all kinds of liquid to premix, disperse, dissolve or color match etc. When it is mixing and dispersing, there is little air suction which can dissolve materials quickly and make the particle more smaller. It is widely used in coating, oil paint, ink, resin, papermaking, adhesive, medicine, pigment, color paste, food, beverage etc. to mix, disperse and dissolve two or more kinds of liquids and solid powders.
Features
1. to premixing, ready mixing or dissolving all kind of liquid processing
2. Hydraulic lift or Pneumatic lift for your option
3. hydraulic lift frame with built-in hydraulic cylinder uses little oil and will not cause oil leakage; flexible and easy to control
4. less air suction during dissolving, blending quickly and dispersing big particles to smaller ones
5. high efficiency, stable performance to rise and fall
Technical Parameters
Model | Power(kw) | Speed (rpm) | Capacity (L) | Diameter of Disc (mm) | Lifting Height (mm) | Weight (kg) |
EBF-4 | 4 | 1500 | 50-200 | 100-200 | 700 | 700 |
EBF-7.5 | 7.5 | 1500 | 100-400 | 200-300 | 900 | 1000 |
EBF-11 | 11 | 1440 | 100-500 | 200-300 | 900 | 1000 |
EBF-15 | 15 | 1440 | 150-700 | 200-300 | 900 | 1000 |
EBF-18.5 | 18.5 | 1440 | 200-800 | 300-400 | 1200 | 1500 |
EBF-22 | 22 | 1440 | 200-1000 | 300-400 | 1200 | 1500 |
EBF-30 | 30 | 1440 | 250-1500 | 300-400 | 1200 | 1600 |
EBF-37 | 37 | 1440 | 300-2000 | 300-400 | 1200 | 1800 |
EBF-45 | 45 | 1440 | 300-2500 | 400-500 | 1500 | 1800 |
EBF-55 | 55 | 1440 | 350-4000 | 400-500 | 1500 | 2000 |

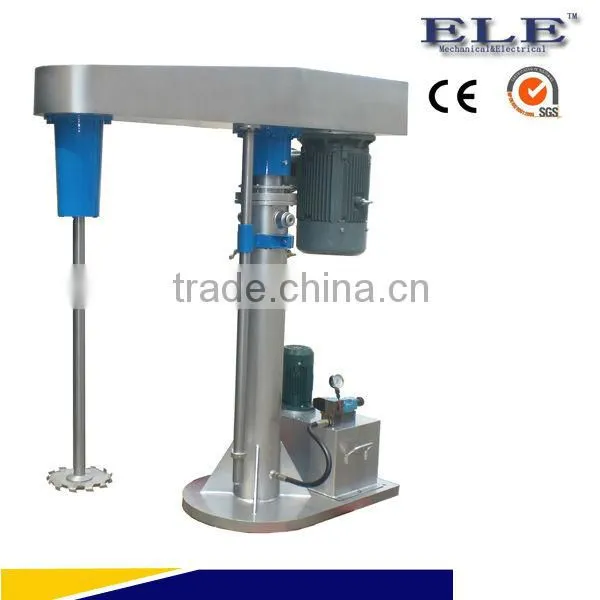

Pictures for Reference
