Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Reactor > High Speed Material Disperser

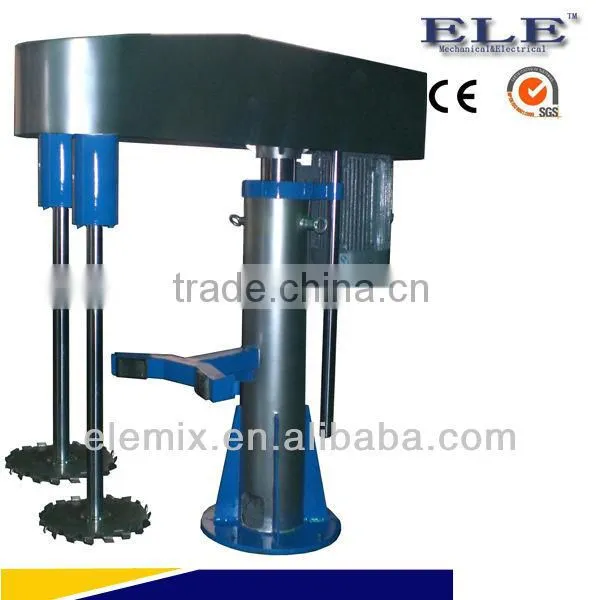

High Speed Material Disperser
US$ 800 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Product Type:
Paint
Place of Origin:
Shanghai, China
Brand Name:
ELE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dual Shaft Disperser-high EfficiencyUS$ 800 - 50,000MOQ: 1 Set -
High Speed High Efficiency DisperserUS$ 1,500 - 15,000MOQ: 1 Set
-
High Speed Dispersion MachineUS$ 1,500 - 15,000MOQ: 1 Set
-
Painting Industial High Speed DisperserUS$ 800 - 10,000MOQ: 1 Set
-
High Speed Liquid Disperser,dissolverUS$ 800 - 50,000MOQ: 1 Set
Product Type
Paint
Place of Origin
Shanghai, China
Brand Name
ELE
Model Number
EBF
Specifications
1.High Speed Dissolver2.apply to paint,ink,cosmetic, food, beverage,etc.
3.hydraulic lift
4.ss304 or 316L
5.disc stirrer
Paint Equipment
Introduction:
The high speed disperser applies to all kind of liquid to pre-mix, disperse, color matching, etc.
Features:
- hydraulic lifting, the frame can turn around flexible
- one shaft with two disc, (aso can with on disc), suitable for large production
- can match with cover, incase of material splashing or flying and volatilization of solvent based product during working.
- less air absorption during working
- it can blend and dissolve product quickly
- with inverter, various speed control, low noise and long-time continuous production
- stable performance, high efficiency
- according to requirement, can with clamp or belt
- motor can be explosion-proof, and the dispersing tank can be vacuum or seal
- it can be hydraulic lift or pneumatic lift
- Type: floor type and platform type
- one machine can serve several tanks
Specifications:
Model |
Main Power (kw) |
Rotation Speed (rpm) |
Diameter of Disc (mm) |
Stroke (mm) |
Pump Power (kw) |
Weight (kgs) |
EBF-4 |
4 |
1440 |
100-200 |
700 |
0.75 |
700 |
EBF-7.5 |
7.5 |
1440 |
200-300 |
900 |
1.1 |
1000 |
EBF-11 |
11 |
1440 |
200-300 |
900 |
1.1 |
1000 |
EBF-15 |
15 |
1440 |
200-300 |
900 |
1.1 |
1000 |
EBF-18.5 |
18.5 |
1250 |
300-400 |
1200 |
2.2 |
1500 |
EBF-22 |
22 |
1250 |
300-400 |
1200 |
2.2 |
1500 |
EBF-37 |
37 |
1250 |
300-400 |
1200 |
2.2 |
1800 |
EBF-45 |
45 |
1250 |
400-500 |
1500 |
2.2 |
1800 |
EBF-55 |
55 |
1250 |
400-500 |
1500 |
2.2 |
2000 |
Remarks
1.If oil product, the motor can be explosion-proof, with on-spot expolsion-proof control box.
2. The machine can be customized according to practicle condition and specific requirment.
