Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > High Speed Paint Mixer With Clamps

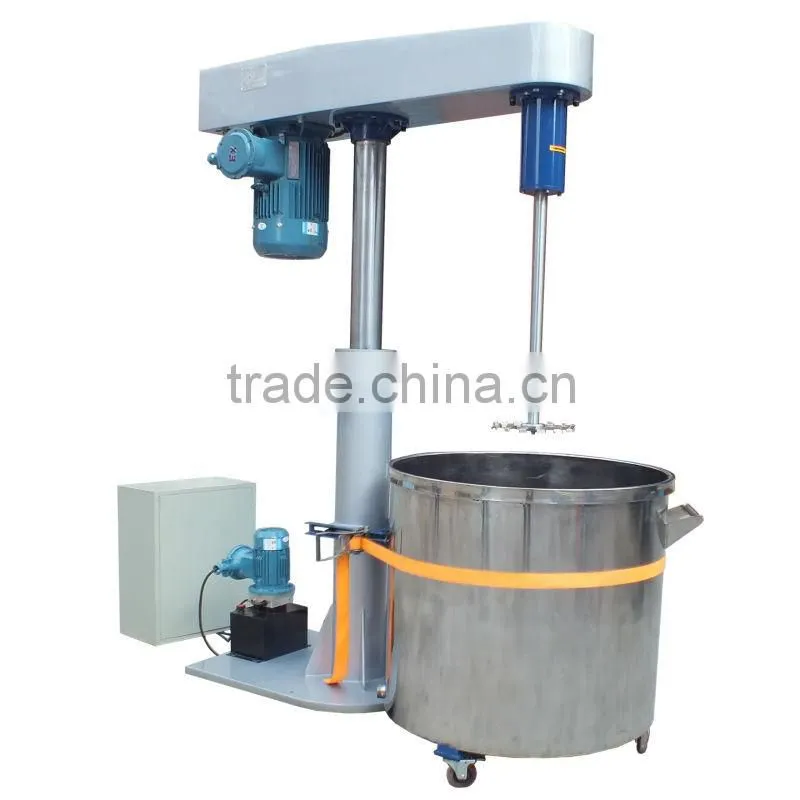

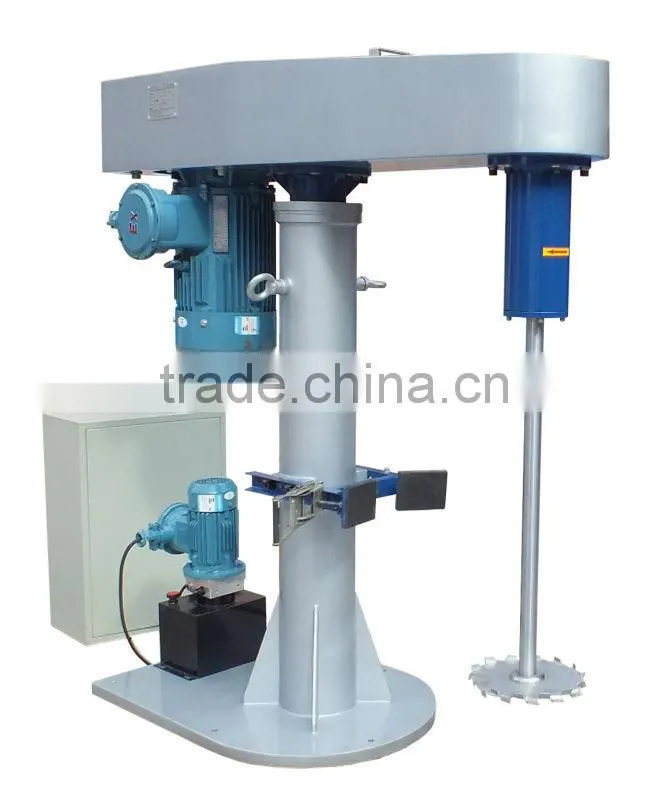

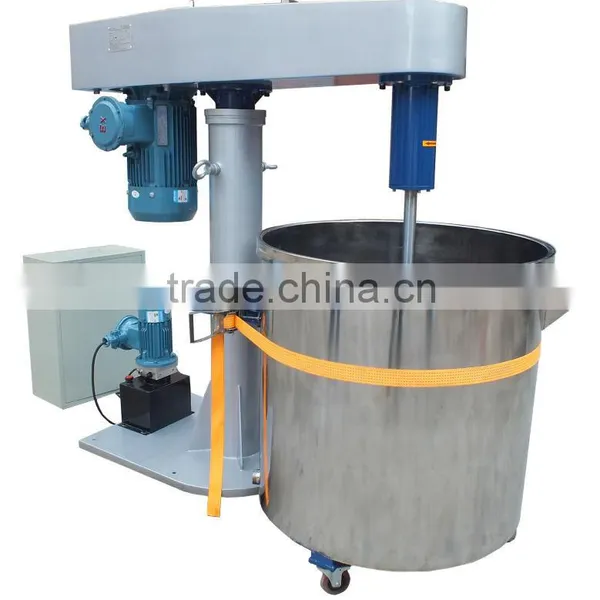

High Speed Paint Mixer With Clamps

US$ 1,500 - 15,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Mixer Type:

Other, Dispersing Disc

Product Type:

Paint

Contact Supplier Request Quote Chat Now

Shanghai ELE Mechanical & Electrical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Guangzhou etc.

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Mixer Type Other, Dispersing Disc

Product Type Paint

Application Other, Viscous Fluid, Paint, Coating, Ink, Pigment and so on

Additional Capabilities Other, Dispersing and Mixing

Place of Origin Shanghai, China

Brand Name ELE

Model Number EBF-18.5

Max. Loading Capacity Depends on the Capacity

Voltage 380V,220V or 415V

Power(W) 18.5KW

Dimension(L*W*H) 2020*900*2085(MM)

Certification CE

Warranty One Year

Specifications

1.High Speed Dissolver
2.Hydraulic or Pneumatic Lift

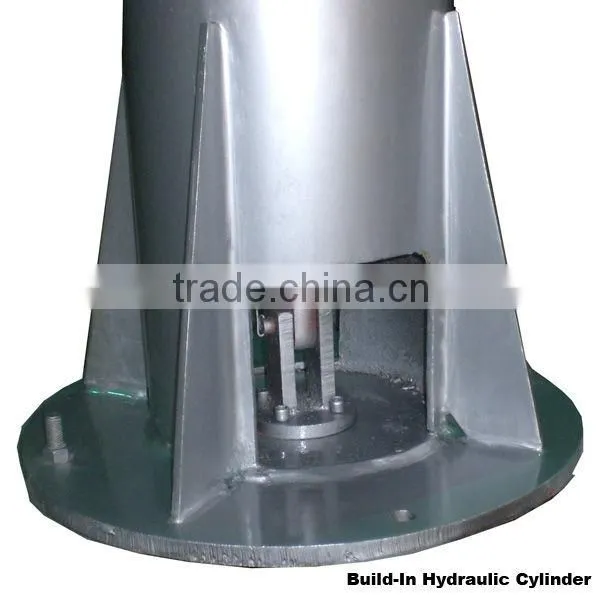

3. Build-in Cylinder
4.Ex-proof or Non ex-proof
5. Applied in paint,ink

EBF Series High Speed Disperser, High Speed Mixer

Mixing Machine for Paint, Coating, Ink, Pigment, Slurry

Description

High speed disperser applies to all kinds of liquid to premix, disperse, dissolve or color match etc. When it is mixing and dispersing, there is little air suction which can dissolve materials quickly and make the particle more smaller. It is widely used in coating, oil paint, ink, resin, papermaking, adhesive, medicine, pigment, color paste, food, beverage etc. to mix, disperse and dissolve two or more kinds of liquids and solid powders.

Features

1. to premixing, ready mixing or dissolving all kind of liquid processing

2. Hydraulic lift or Pneumatic lift for your option

3. hydraulic lift frame with built-in hydraulic cylinder uses little oil and will not cause oil leakage; flexible and easy to control

4. less air suction during dissolving, blending quickly and dispersing big particles to smaller ones

5. high efficiency, stable performance to rise and fall

Technical Parameters

Model	Power(kw)	Speed (rpm)	Capacity (L)	Diameter of Disc (mm)	Lifting Height (mm)	Weight (kg)
EBF-4	4	1500	50-200	100-200	700	700
EBF-7.5	7.5	1500	100-400	200-300	900	1000
EBF-11	11	1440	100-500	200-300	900	1000
EBF-15	15	1440	150-700	200-300	900	1000
EBF-18.5	18.5	1440	200-800	300-400	1200	1500
EBF-22	22	1440	200-1000	300-400	1200	1500
EBF-30	30	1440	250-1500	300-400	1200	1600
EBF-37	37	1440	300-2000	300-400	1200	1800
EBF-45	45	1440	300-2500	400-500	1500	1800
EBF-55	55	1440	350-4000	400-500	1500	2000
