EC,EG,SC,AC,OL Pesticide High Speed Dissolver

EC,EG,SC,AC,OL Pesticide High Speed Dissolver thumbnail-1
EC,EG,SC,AC,OL Pesticide High Speed Dissolver photo-1
US$ 800 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Other, Disperser
Application:
Viscous Fluid
Contact Supplier Request Quote Chat Now
Shanghai ELE Mechanical & Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Mixer Type Other, Disperser
Application Viscous Fluid
Additional Capabilities Other, Dispersing & Milling
Place of Origin Shanghai, China
Brand Name ELE
Model Number EBF
Voltage Customized
Power(W) Customized
Certification CE,ISO
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

Mixing Equipment/ Mixing Machine/High Speed Disperser/High Speed Dissolver





Description

High speed disperser  suitable for batch production, it is apply to all kind of liquid to pre-mix, disperse,

color matching, etc.



Features



  • Hydraulic lifting, the frame can turn around flexible,

  • With inverter, various speed control, low noise and long-time continuous production,
  • Stable performance, high efficiency,
  • According to requirement, can with clamp or belt,
  • Motor: Siemens, explosion-proof and no ex-proof optional
  • One machine can serve several tanks,

Specifications



Model

Power(kw)

Speed(rpm)

Diameter of Disc(mm)

Stroke(mm)

Pump Power(kw)

Weight

  (kgs)

EBF-4

4

1440

100-200

700

0.75

700

EBF-7.5

7.5

1440

200-300

900

1.1

1000

EBF-11

11

1440

200-300

900

1.1

1000

EBF-15

15

1440

200-300

900

1.1

1000

EBF-18.5

18.5

1250

300-400

1200

2.2

1500

EBF-22

22

1250

300-400

1200

2.2

1500

EBF-37

37

1250

300-400

1200

2.2

1800

EBF-45

45

1250

400-500

1500

2.2

1800

EBF-55

55

1250

400-500

1500

2.2

2000



Remarks

1.If solvent-based product, the motor can be explosion-proof, with on-spot expolsion-proof control box.

2. The machine can be customized according to practicle condition and specific requirment.





    EC,EG,SC,AC,OL pesticide High Speed Dissolver                                   EC,EG,SC,AC,OL pesticide High Speed Dissolver

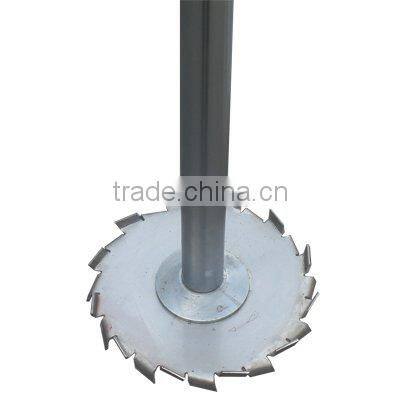

                    Dispersing Disc

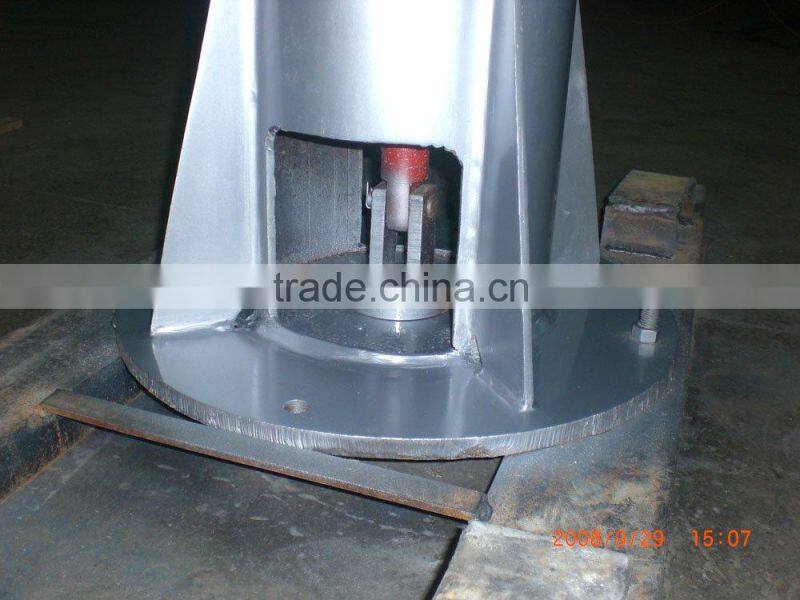

                                                                                                                                      Hydraulic Lifting System



EC,EG,SC,AC,OL pesticide High Speed Dissolver





 EC,EG,SC,AC,OL pesticide High Speed Dissolver
