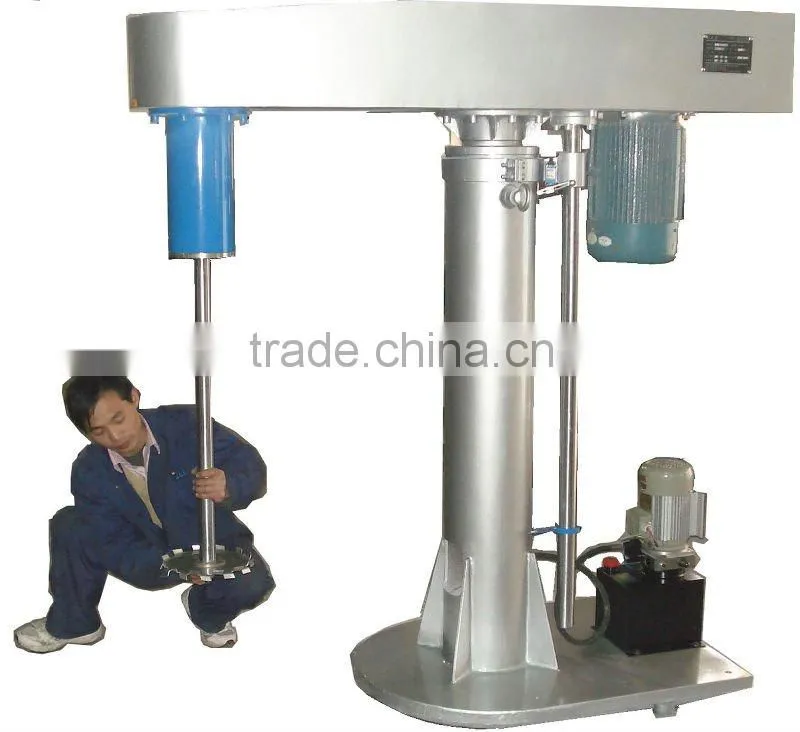

Hydraulic Lift High Speed Disperser
Introduction:
The high speed disperser suitable for batch production, it is apply to all kind of liquid to pre-mix, disperse, color matching, etc.
Features:
- hydraulic lifting, the frame can turn around flexible
- can match with cover, incase of material splashing or flying and volatilization of solvent based product during working.
- less air absorption during working
- it can blend and dissolve product quickly, more efficiency
- with inverter, various speed control, low noise and long-time continuous production
- stable performance, high efficiency
- stainless steel mixing tank with clamp or belt is optional
- motor can be explosion-proof, and the dispersing tank can be vacuum or seal
- it can be hydraulic lift or pneumatic lift
- Type: floor type and platform type
- one machine can serve several tanks
Specifications
Model |
Main Power (kw) |
Rotation Speed (rpm) |
Diameter of Disc (mm) |
Stroke (mm) |
Pump Power (kw) |
Weight (kgs) |
EBF-4 |
4 |
1440 |
100-200 |
700 |
0.75 |
700 |
EBF-7.5 |
7.5 |
1440 |
200-300 |
900 |
1.1 |
1000 |
EBF-11 |
11 |
1440 |
200-300 |
900 |
1.1 |
1000 |
EBF-15 |
15 |
1440 |
200-300 |
900 |
1.1 |
1000 |
EBF-18.5 |
18.5 |
1250 |
300-400 |
1200 |
2.2 |
1500 |
EBF-22 |
22 |
1250 |
300-400 |
1200 |
2.2 |
1500 |
EBF-37 |
37 |
1250 |
300-400 |
1200 |
2.2 |
1800 |
EBF-45 |
45 |
1250 |
400-500 |
1500 |
2.2 |
1800 |
EBF-55 |
55 |
1250 |
400-500 |
1500 |
2.2 |
2000 |
Remarks
1.If solvent based product, the motor can be explosion-proof, with on-spot expolsion-proof control box.
2. The machine can be customized according to practicle condition and specific requirment.
For more information and problems, pls feel free to contact with our sales engineer.
