Specifications
1.inline high shear homogenizer2.precision finishing stator and rotor
3.speed 0-3000rpm
4.ss304/ss316L stainless steel
5.CE

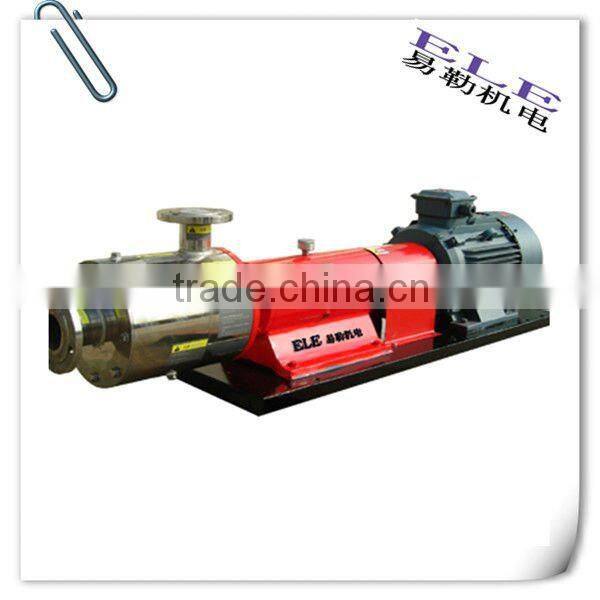

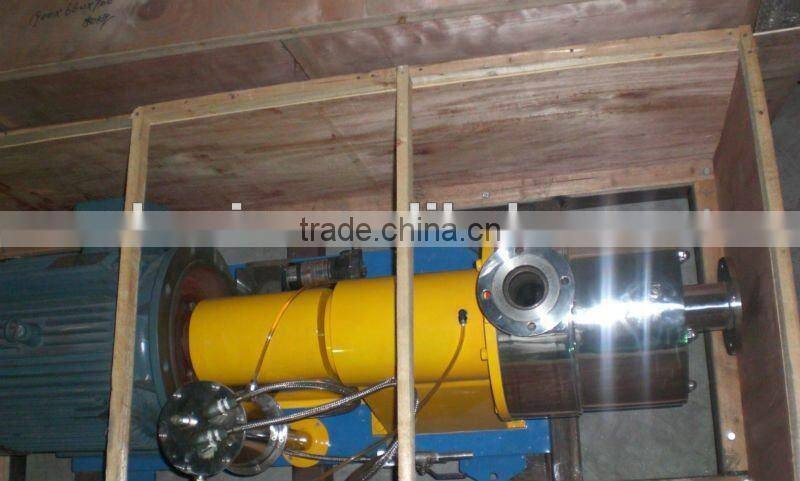

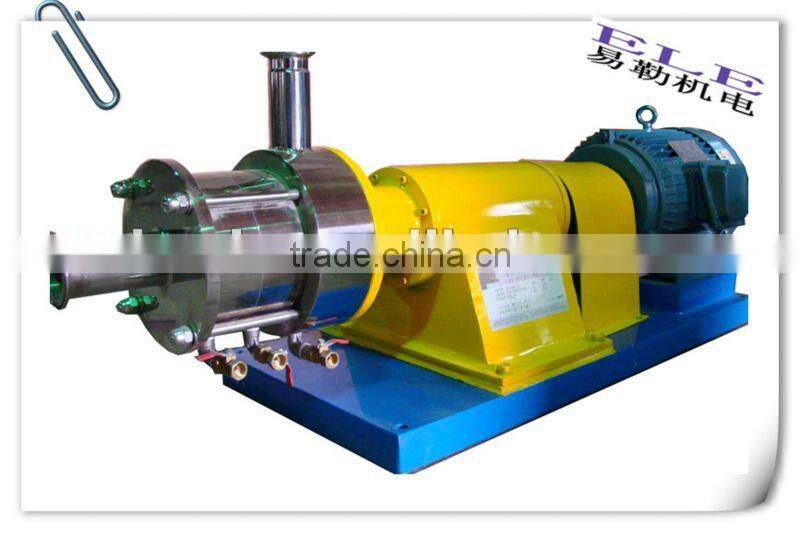

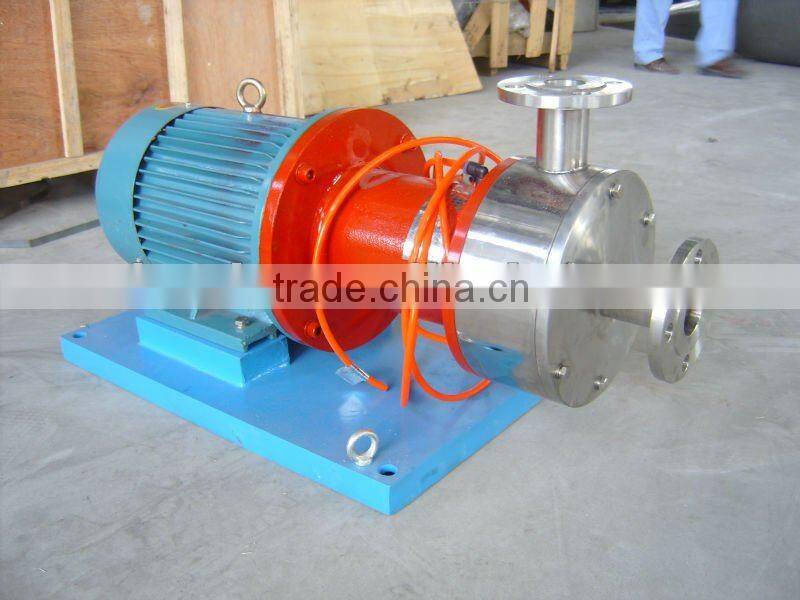

ELR/3 Inline High Shear Homogenizer, Emulsion Pump
Inline High Shear Emulsifier, Mulser, Emulsification Machine
Description
Inline high-shear Homogneizer with precision stator and rotor,widely used in the area of bitum emuslion, modified asphalt emulsion, food, beverage, diesel emulsion, etc.
Features
- The grinding cavity is consists of three groups of stator and rotor (2 layers, 4 layers and 6 layers), highly working accuracy, large capacity and wide viscosity, more suitble for industrial on-line production.
- High shear emulsion pump is best emulsifying effect and top efficiency, more suitable for production which need high requirement for emulsifying, then it is the first choice for the micro-emuslion production.
- According to your PH, there are materials of ss304 and 316L for your choice.
- Adopting double mechanicial seal also can configure water protector
- It is elastic connection, low noisy and table performance.
- It can design jacket for cooling and heating.
Technical Parameters
Model |
Power (kw) |
Rotation Speed (rpm) |
Flow (m3/h) |
Entrance (mm) |
Exit (mm) |
ELR401/3 |
1.1/1.5 |
3000 |
0.5 |
DN40 |
DN32 |
ELR405/3 |
4 |
3000 |
2 |
DN40 |
DN32 |
ELR410/3 |
7.5 |
3000 |
4 |
DN50 |
DN40 |
ELR415/3 |
11 |
3000 |
6 |
DN60 |
DN50 |
ELR420/3 |
15 |
3000 |
12 |
DN60 |
DN50 |
ELR425/3 |
18.5 |
1500/3000 |
16 |
DN60 |
DN50 |
ELR430/3 |
22 |
1500/3000 |
18 |
DN60 |
DN50 |
ELR450/3 |
37 |
1500 |
26 |
DN100 |
DN80 |
ELR460/3 |
45 |
1500 |
30 |
DN125 |
DN100 |
ELR475/3 |
55 |
1500 |
32 |
DN125 |
DN100 |
ELR490/3 |
75 |
1500 |
45 |
DN125 |
DN100 |
ELR510/3 |
90 |
1500 |
55 |
DN125 |
DN100 |
ELR530/3 |
110 |
1500 |
70 |
DN150 |
DN125 |

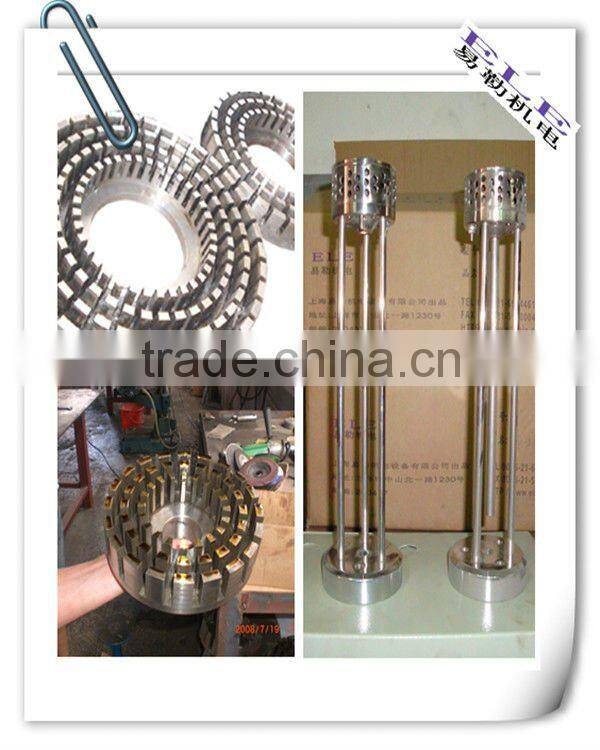

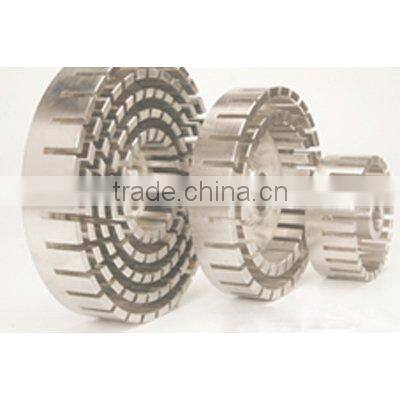

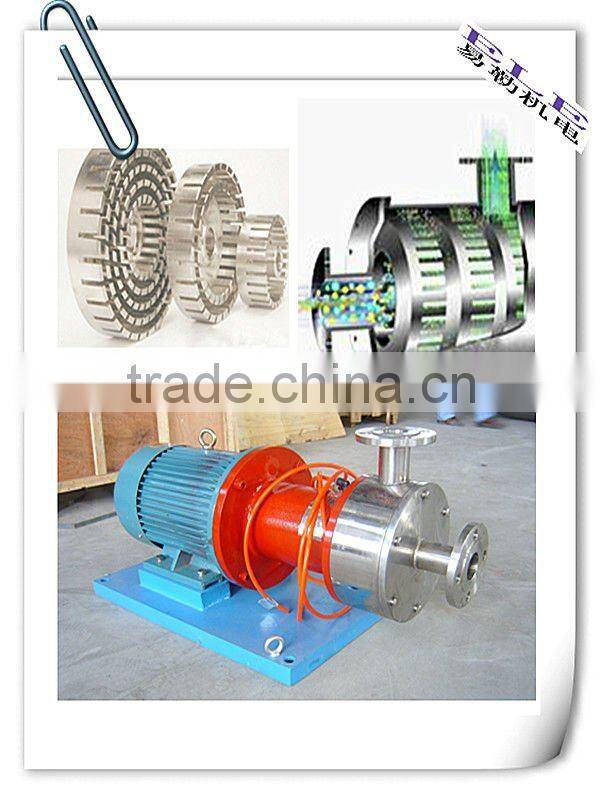

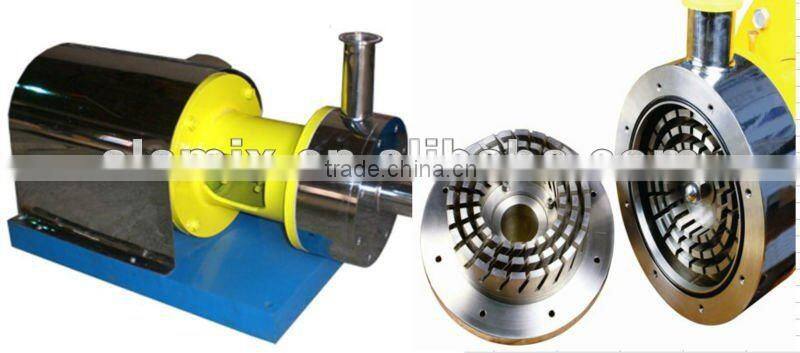

Structure of stator and rotor
Remarks
1. If oil product , the motor can be explosion-proof.
2. Can design with jacket to heat or cool product.
For more information, pls contact with our sales engineer:
Tel: 86-21-65444615-8004
Fax:86-21-55387553-8002
