Specifications
1.inline mixer homogenizer2.materail:ss304/ss316L stainless steel
3.speed:0-3000rpm
4.precision rotor stator
5. CE&ISO9001

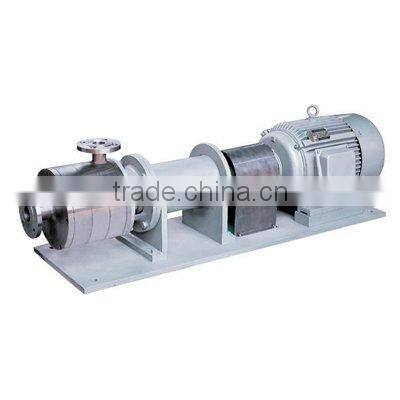

ELR/1/2 Inline High Shear Emulsifier, Inline High Shear Mixer, Inline Homogenizer
Introduction

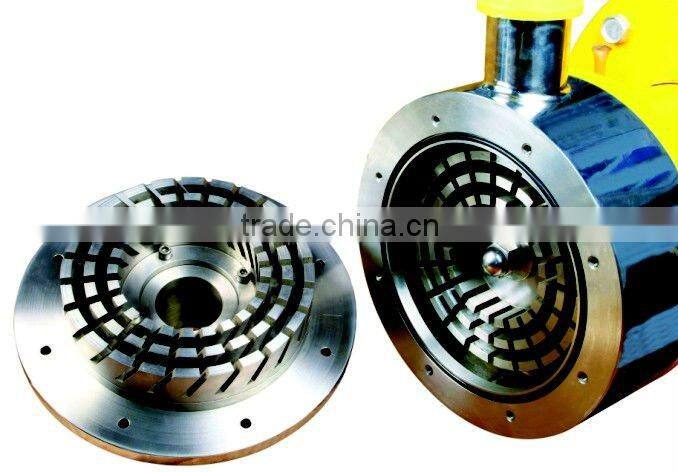

This model with key part of stator and rotor, which is linear cutting, It can disperse, mix and emulsify various kind of liquid with different viscosity by high shearing power. Widely used in production of food, beverage, fragrance, cosmetic, shampoo, asphalt/bitumen emulsion, shampoo..
Application
Coating & Paint, Printing Ink, Dye & Pigment, Flavors, Food, Medicine. Cosmetics, Resin,
Adhesive, Construction Material, Pesticides, Papermaking Chemical, Lubricant, Lithium Battery Mate, Surfactant, Hard Materials & Cer, Agricultural Chemicals, Electronic Chemical, Oil-field Chemical and other Products.
Our Customers
3M Company--BASF--- BAYER--- ROHM HAAS-- PPG China Company--- PROM
TLEI--- JERRY--The Miracles of Science--Youbang Paint--MOLECHEM--KECHONG etc.
Features
- three sets of precision engieered stator and rotor inside of the chamber
- double end mechanical seal, can design water protector according to requirement
- perfect emulsifying, reach micro-emulsion, suitable for high requirement emulsion
- adopt elastic connection, low noise, prolong the service life
- material: all parts contract with material is ss304 or ss316L stainless steel
- head/lift: 8m
Technical Parameters
- Power supply: 380v, 50hz, 3ph (voltage can be customized)
- Rotation speed: 0-3000rpm/0-1500rpm
- structure: 6 layers of stator and rotor
- flow:0.5-70m3
- Surface treatment: electro polishing, inner: Ra0.8-1.2um, outerRa3.2um, other part is coated resisteance to chemical corrosion paint
| Model | Power(kw) | Rotation(rpm) | Flow (m3/h) | Entrance | Exit |
| ELR401/1/2 | 1.1 | 2890 | 1 | DN40 | DN32 |
| ELR405/1/2 | 4 | 2890 | 4 | DN40 | DN32 |
| ELR410/1/2 | 7.5 | 2890 | 8 | DN50 | DN40 |
| ELR415/1/2 | 11 | 2890 | 12 | DN65 | DN50 |
| ELR420/1/2 | 15 | 2890 | 18 | DN65 | DN50 |
| ELR425/1/2 | 18.5 | 2890 | 20 | DN65 | DN50 |
| ELR430/1/2 | 22 | 2890 | 22 | DN65 | DN50 |
| ELR450/1/2 | 37 | 1440 | 30 | DN100 | DN80 |
| ELR475/1/2 | 55 | 1440 | 40 | DN125 | DN100 |
| ELR490/1/2 | 75 | 1440 | 55 | DN125 | DN100 |
| ELR510/1/2 | 90 | 1440 | 65 | DN125 | DN100 |
| ELR530/1/2 | 110 | 1440 | 80 | DN150 | DN125 |
Remarks
1. If oil product , the motor can be explosion-proof.
2. Can design with jacket to heat or cool product.
