Help CenterHigh Shear Homogenizing Mixer
Related Products
Specifications
1.Shampoo Making Machine2.high shear emulsifier
3.drink homogenizer
4.high shear mixer
5.high shear homogenizer

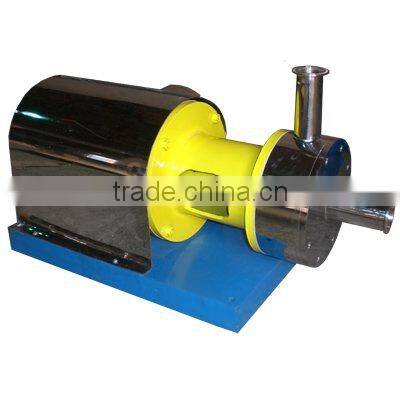

High Shear Mixer
High shear mixer with precision rotor and stator is good machine for shampoo making, hydraulic lift with built-in hydraulic cylinder, bi-direction absorption, will emulsifying and homogenizing production fine and efficiency.
The core technique of the high shear homogenizer is the accurate machining. The precision combination of the stator and rotor is the critical technology of shearing effect.
Features:
- with inverter, can be various speed
- can be hydraulic lift or pneumatic lift, also can fixed on the reactor
- the part contact with the material is ss304 or 316L stainless steel
- The stator and rotor is precision forging, linear cutting, claw-structure, bi-direction absorption, high cycle efficiency, not leave dead corner.
- The stator and rotor is after special heat treatment, the surface abrasion resistance is 2-3 times than the ordinary stainless steel.
- The key parts are after grinding processing, the composition between stator and rotor is American Level standard.
- The rotating part is after dynamic and static balance test, so that ensure the stability at condition of high speed rotation, low noise, prolong hte service life.
Specifications
Model |
Power/kw |
Capacity/L |
Rotation Speed/rpm |
EBR-1.1 |
1.1 |
10-50 |
3000 |
EBR-4 |
4 |
30-200 |
3000 |
EBR-7.5 |
7.5 |
200-500 |
3000 |
EBR-11 |
11 |
300-800 |
3000 |
EBR-15 |
15 |
300-1200 |
1500/3000 |
EBR-18.5 |
18.5 |
300-1800 |
1500/3000 |
EBR-22 |
22 |
500-2000 |
1500/3000 |
EBR-37 |
37 |
500-3000 |
1500 |
EBR-45 |
45 |
500-4000 |
1500 |
EBR-55 |
55 |
1000-5000 |
1500 |
Remarks
1. The motor and on-spot control box can be explosiona-proof for solvent based product.
2. It can customized according to your production.
We also have other homogeneous machine
