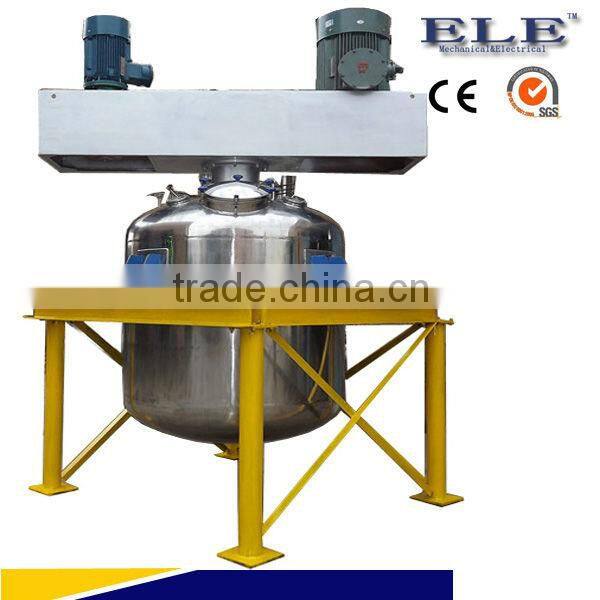

Concentric Double Shaft Stainless Steel Mixer for Viscous Liquid
US$ 1,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Semi-Automatic
Type:
Reaction Kettle
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EBF/IV Compound Concentric Dual Shaft AgitatorUS$ 5,000 - 30,000MOQ: 1 Set -
EB--IV Twin Shaft Mixer for PuttyUS$ 3,500 - 200,000MOQ: 1 Set
-
Vacuum Putty MixerUS$ 3,500 - 200,000MOQ: 1 Set
-
Vacuum Mixing MachineUS$ 1,000 - 100,000MOQ: 1 Set
-
Vertical Compound Industrial Resin MixerUS$ 1,000 - 200,000MOQ: 1 Set
Condition
New
Automatic Grade
Semi-Automatic
Type
Reaction Kettle
Place of Origin
Shanghai, China
Brand Name
ELE
Model Number
EBF/IV liquid mixer
Voltage
380V,220V,415V
Warranty
One Year
Specifications
1.SS304/316L liquid mixer2.for High Viscous Liquid
3.Double Shaft
4.Can be customized
5.Hydraulic lift or platform type
ELE EBF/IV Series Compound Concentric Double Shaft Mixer
Specially designed for High Viscosity Fluid Mixing
Stainless Steel Mixing Machine, Chemical Reactor, Pharmaceutical Chemical Reactor, Cosmetic Mixing Reactors, Industrial Chemical Reactor, Mixing Machine, Liquid Mixer
Introduction
Stainless steel mixing machine or chemical reactor is widely used in many kind of fluid industry, different mixer can meet different processing demand. Especially in Paint, Ink, feual, ink, papermaking, adhesive, cosmetic, medicine...etc.

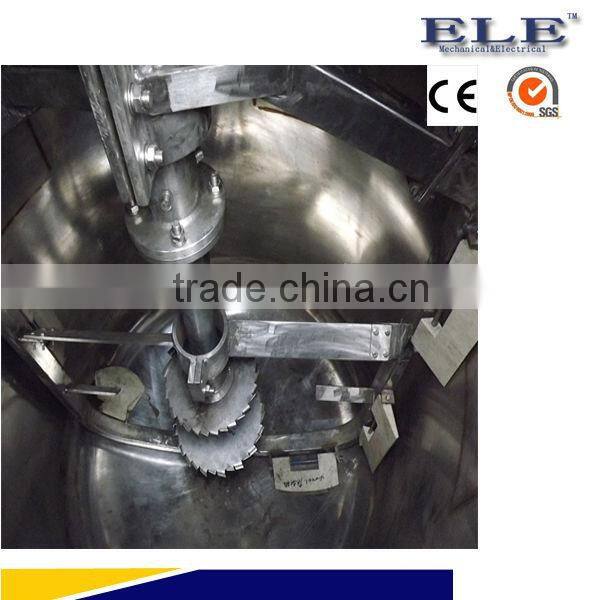

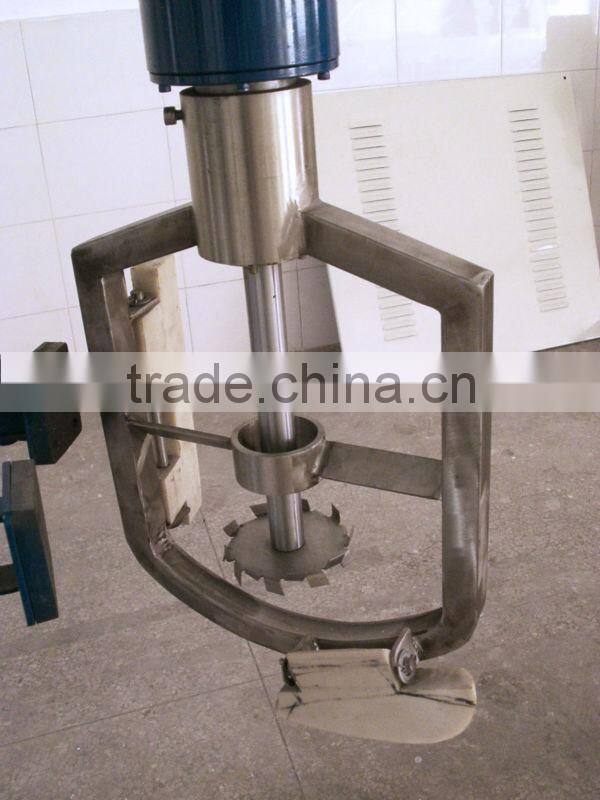

EBF/IV Series Compound Concentric Double Shaft Mixer is kind of machine with high speed disperser together with low speed frame type agitator, with scrapers.
That assure the mixing of viscous fluid thoroughly, no dead corner.
Features
- Specially designed for high viscosity material batch mixing.
- Co-axial structure balancing the stress, avoid deformation even meet strong resistance.
- Low speed mixing cooperated with high speed dispersing, get high efficiency and better mixing result.
- Hydraulic pillar adopt the structure of built-in engineering hydraulic cylinder, with strong bearing, stable lifting, less oil consuming, avoid the leakage problem of conventional hydraulic system.
- Control system Explosion-proof or Non Ex-proof, the explosion-proof type according with international standard.
- Holding clamp device can be set for the vessel if necessary.
- Various vessel type for choice as per your need, including open-top, flat lid top, round top, flat-bottom, round-bottom, cone-bottom, vacuum, jacket etc..
-
High speed main shaft, dispersing disc, belt pulley has passed the static and dynamic equilibrium test to ensure the precision.
Model
Tank Volume
(L)
Total Power
(KW)
High Speed
(RPM)
Low Speed
(RPM)
Stroke
(mm)
EBF/IV-15
15
1.85
1500
61
300
EBF/IV-50
50
4.1
1500
61
450
EBF/IV-100
100
7.7
1500
61
550
EBF/IV-250
250
10.5
1500
61
750
EBF/IV-500
500
20.5
1500
61
850
EBF/IV-1000
1000
29.5
960
61
1200
EBF/IV-2000
2000
56
960
61
1450

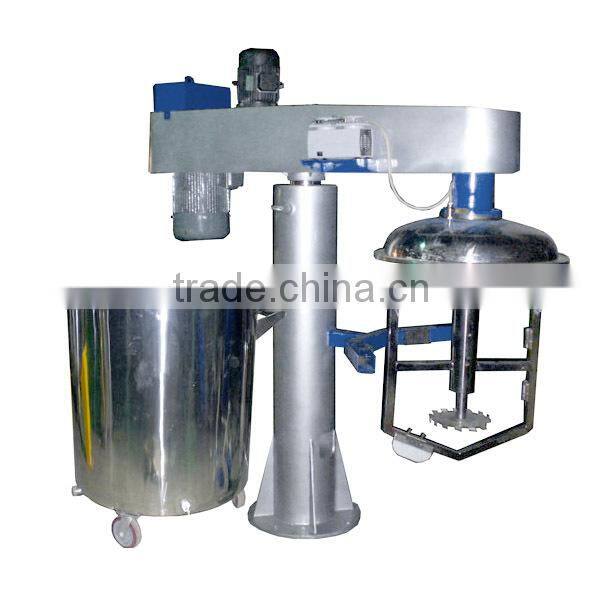

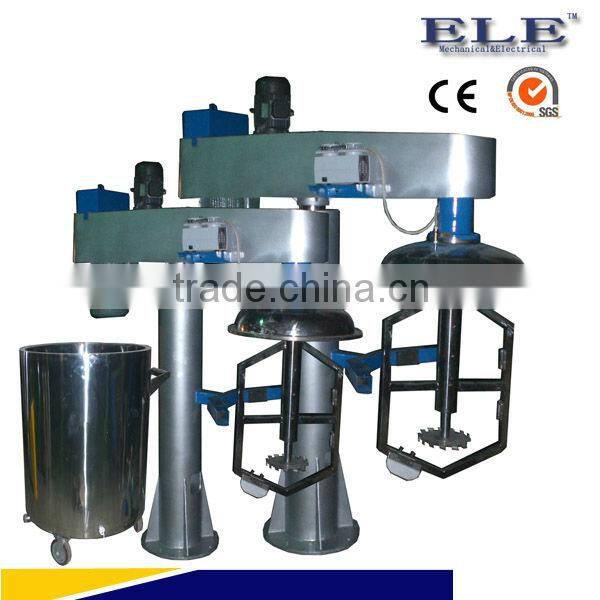

Hydraulic Lift Type

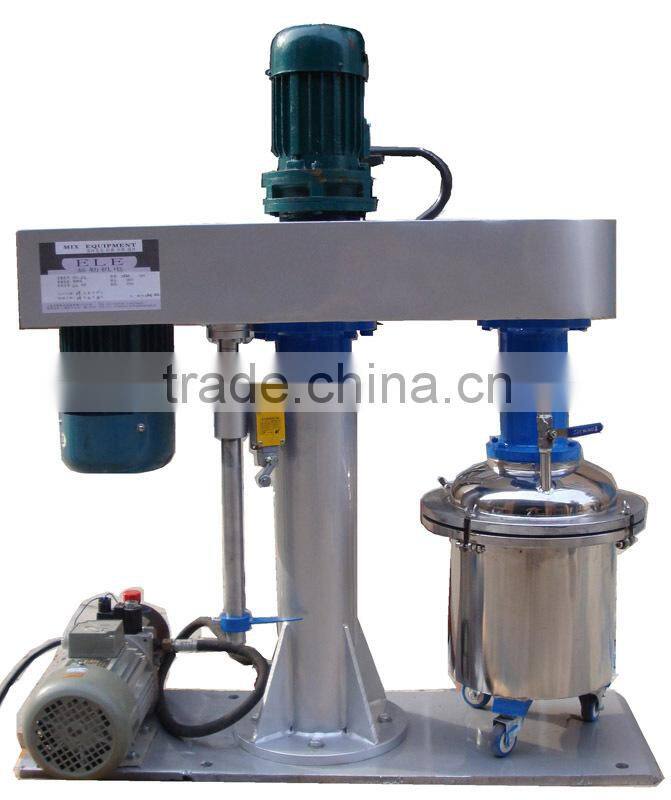

Platform Type
Note:
- The reactor could be vacuum or/and jacketed as your need.
- Material of the contact parts could be SS316L as your need.
- Can be Explosion-Proof for solvent-based fluid.
- Voltage can be customized for different country.
