Help CenterResin Mixer
Related Products
Specifications
1.High speed agitator,dissolver,disperser2. CE
3.High Speed & Low Speed
4.Professional Manufacturer
5.Paint & Coating etc,

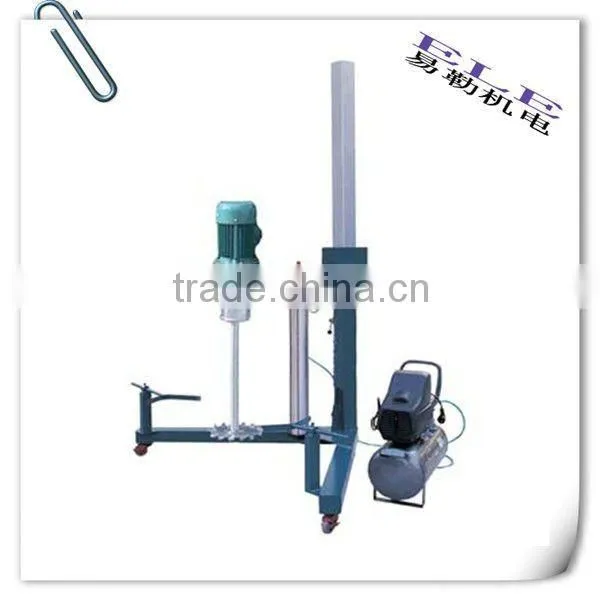

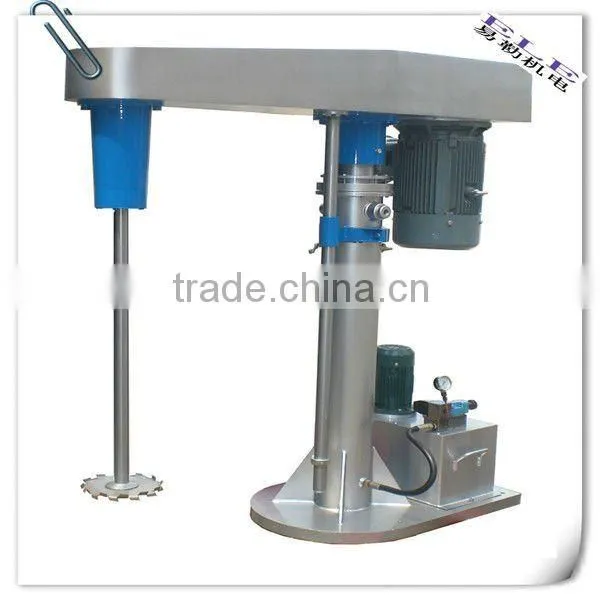

Hydraulic Lift High Speed Disperser Agitator, Paint Mixer,
Mixing Equipment, Chemical Agitator
Introduction
High speed disperser is widely used in the chemical production to blend and mix liquid with solid or liquid with liquid. It is suitable for all the premixing, ready mixing, dissolving. Applicable for Paint, Ink, Pigment, Color paste, paper making, resin, food, beverage...etc.
Features
- hydraulic lifting, the frame can turn around flexible
- can match with cover, incase of material splashing or flying and volatilization of solvent based product during working.
- less air absorption during working
- it can blend and dissolve product quickly
- with inverter, various speed control, low noise and long-time continuous production
- stable performance, high efficiency
- according to requirement, can with clamp or belt
- motor can be explosion-proof, and the dispersing tank can be vacuum or seal
- it can be hydraulic lift or pneumatic lift
- Type: floor type and platform type
- one machine can serve several tanks
Technical Parameters
Model |
Power (kw) |
Rotation Speed (rpm) |
Diameter of Disc (mm) |
Stroke (mm) |
Pump Power (kw) |
Weight (kgs) |
EBF-4 |
4 |
1440 |
100-200 |
700 |
0.75 |
700 |
EBF-7.5 |
7.5 |
1440 |
200-300 |
900 |
1.1 |
1000 |
EBF-11 |
11 |
1440 |
200-300 |
900 |
1.1 |
1000 |
EBF-15 |
15 |
1440 |
200-300 |
900 |
1.1 |
1000 |
EBF-18.5 |
18.5 |
1250 |
300-400 |
1200 |
2.2 |
1500 |
EBF-22 |
22 |
1250 |
300-400 |
1200 |
2.2 |
1500 |
EBF-37 |
37 |
1250 |
300-400 |
1200 |
2.2 |
1800 |
EBF-45 |
45 |
1250 |
400-500 |
1500 |
2.2 |
1800 |
EBF-55 |
55 |
1250 |
400-500 |
1500 |
2.2 |
2000 |
Remarks
1.If solvent-based product, the motor can be explosion-proof, with on-spot expolsion-proof control box.
2. The machine can be customized according to pract
3. As a professional manufacturer, we have CE certificate.
