Help CenterHydraulic Lift Basket Mill
Related Products
Specifications
1.Basket Mill, Grinder2.Hydraulic lift/pneumatic lift
3.Ex-proof or Non
4.Function: Mixing &Milling
5.Special basket design

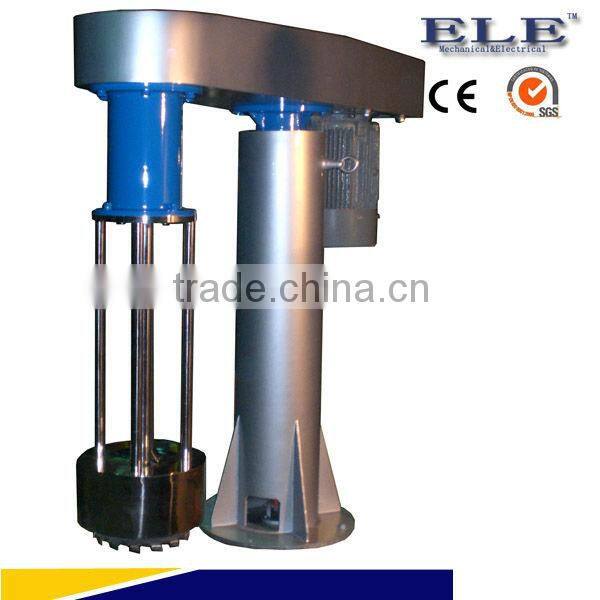

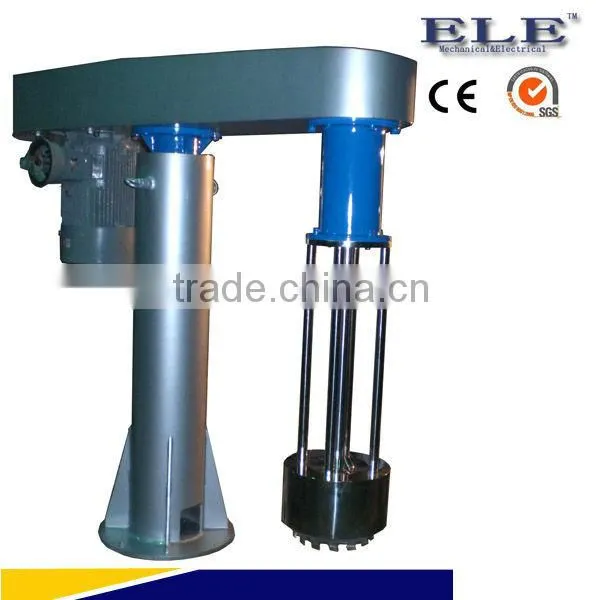

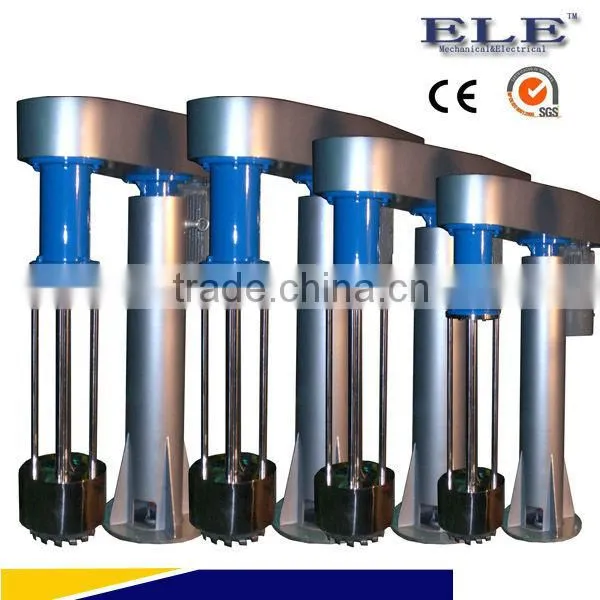

EBM Series Hydraulic Lift Basket Mill
Grinder, Sand Mill, Bead Mill, Grinding Machine
Introduction
Basket Mill is a kind of wet grinding machine, it integrates pre-disperse, fine griding and eventually spread into one machine. It is widely used in paint,coating, color paste, dye, etc.
Features
1. It integrates the dispersing and grinding process into one machine
2. it is convenient to change the grinding material and less residual,saving the cost
3. High grinding efficiency, even particle distribution

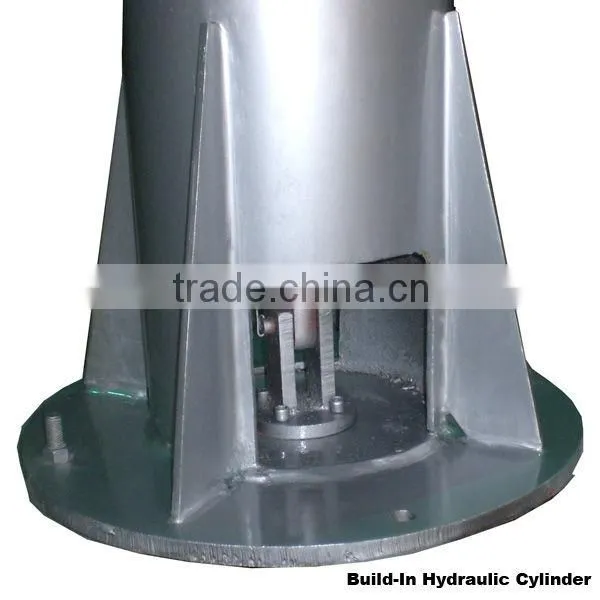

4. Convenient hydraulic lifting, easy to maintain
5. High speed dispersing disc speed up to wet the surface, advance the efficiency, even for high viscosity material, the high speed rotating disc also disperse quickly.
6. It convenient to change the color and product, one machine can produce many kind of product.

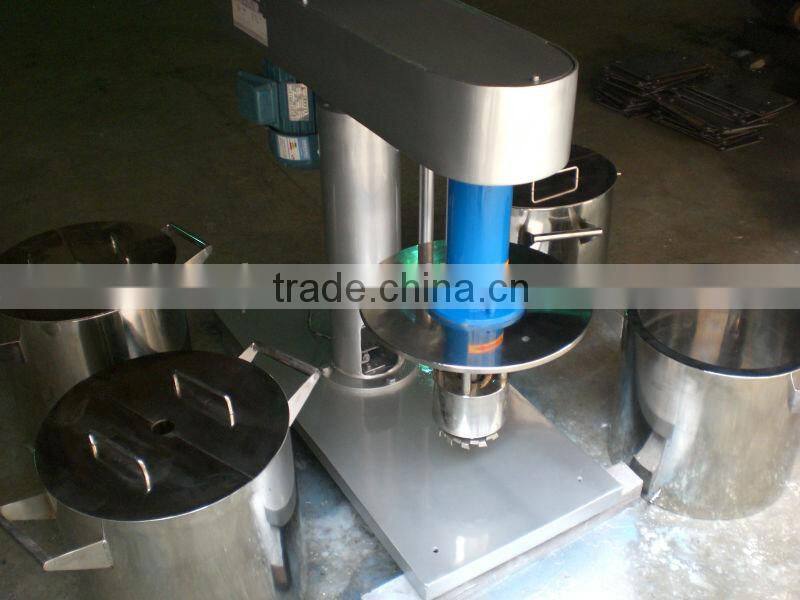

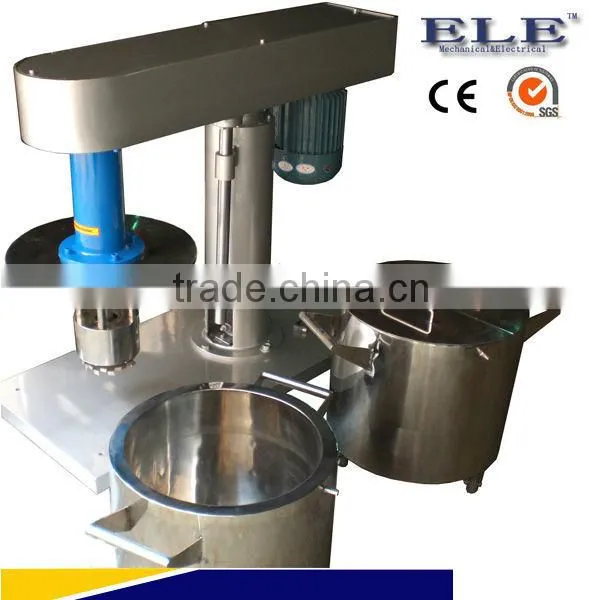

7. Including a stainless steel moveable tank
8. Do not need pump, valve, pipeline, and other container, do not have residual, high yield.
9. With inverter, control various speed.
10. It is flexible, one person can operate several equipments.
Technical Parameters
Model |
Basket Volume (L) |
Power (kw) |
Rotation Speed (rpm) |
Capacity (L) |
Media (mm) |
Stroke (mm) |
EBM-4 |
3.6 |
4 |
0-3000 |
<120 |
1.8-2.4 |
800 |
EBM-7.5 |
4.9 |
7.5 |
0-1500 |
<200 |
1.8 |
900 |
EBM-11 |
6.6 |
11 |
0-1500 |
<260 |
1.8 |
900 |
EBM-15 |
9.1 |
15 |
0-1500 |
<350 |
1.8 |
900 |
EBM-18.5 |
17.2 |
18.5 |
0-1500 |
<500 |
1.8 |
1100 |
EBM-22 |
20.1 |
22 |
0-1500 |
<800 |
1.8 |
1100 |
EBM-30 |
32.3 |
30 |
0-1500 |
<1200 |
1.8 |
1100 |
EBM-37 |
39.2 |
37 |
0-1500 |
<1500 |
1.8 |
1600 |
EBM-45 |
52.3 |
45 |
0-1500 |
<2000 |
1.8 |
1600 |
EBM75 |
85.4 |
85.4 |
0-1500 |
<3000 |
1.8 |
1800 |

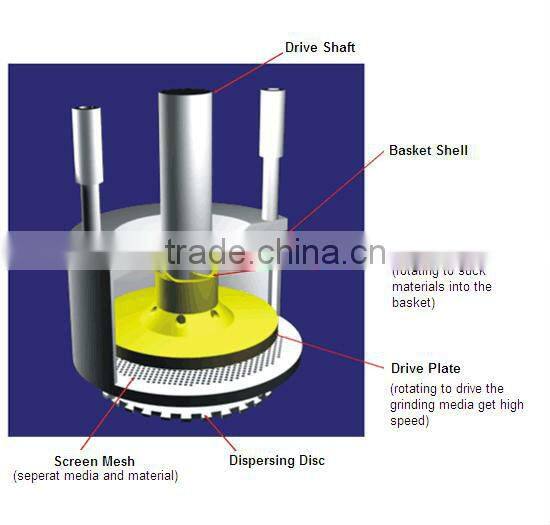

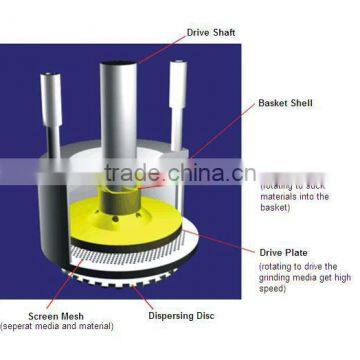

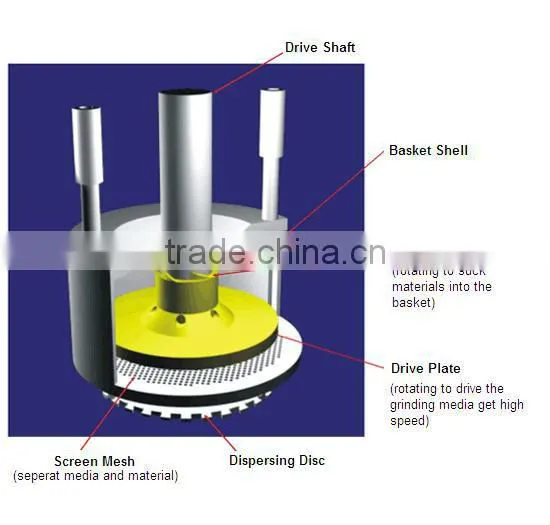

Basket Structure
Remarks
1.The motor with on-spot control-box can be ex-proof.
2. The power can be customized per customers' requirements.
