Vertical continuous band double-side heat sealing machine for thick plastic multilayer bag
Continuous sealing machine uses the South Korean technology, the key component is collected from South korean. The equipment is stable and the sealing is beautiful and is suitable for continuous sealing operation in food, medical treatment and chemical industry. Eliminate the sack, sealing, sealing folds offset is not strong and other issues.
1. It does not limit the length of sealing
2. The self regulating pressure system: applicable to the packaging of any type and thickness of the bag
3. The performance of high - temperature control
4. Working speed adjustable: suitable for efficient production line
5. Working height can be adjusted (maximum 550mm)
6. It has counting function
7. The use of ribbon coding machine, printing clear
8. The cut off all switch machine idle for 15 minutes (adjustable) automatic power outages, prevent high temperature static damage heating pipe and high temperature cloth
9. The double heating type suitable for thick or multilayer packaging bag;
10. The double heating type suitable for thick or multilayer packaging bag;
The options: coding machine, double heating, stainless steel material .
Model |
TOPY- VBS400P |
voltage |
AC 220V,1Ph |
power |
1100W |
Sealing speed |
Max 21m/min |
Sealing width |
10mm |
Sealing film thickness |
0.02-0.80mm |
Temperature range |
0-300℃ |
Conveyor loading |
5kg |
size |
W700×L1450×H1500 |
weight |
116kg |

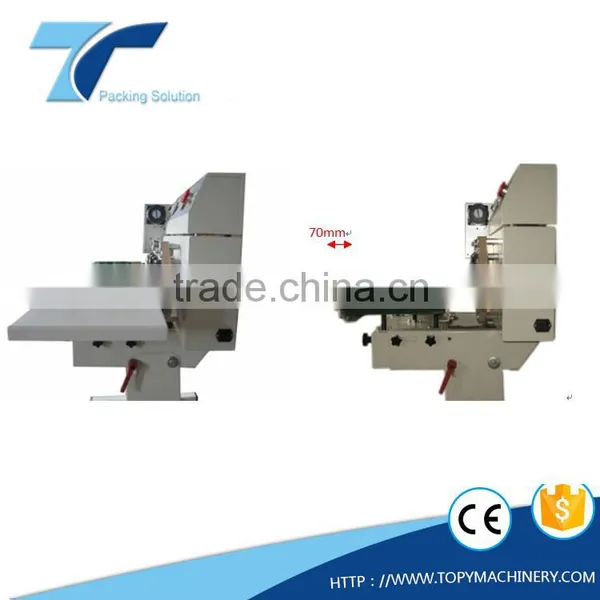

According to the size of the bag, the width of conveyor can be extended up to 70mm
The height of conveyor can adjust up to 60mm to meet the package

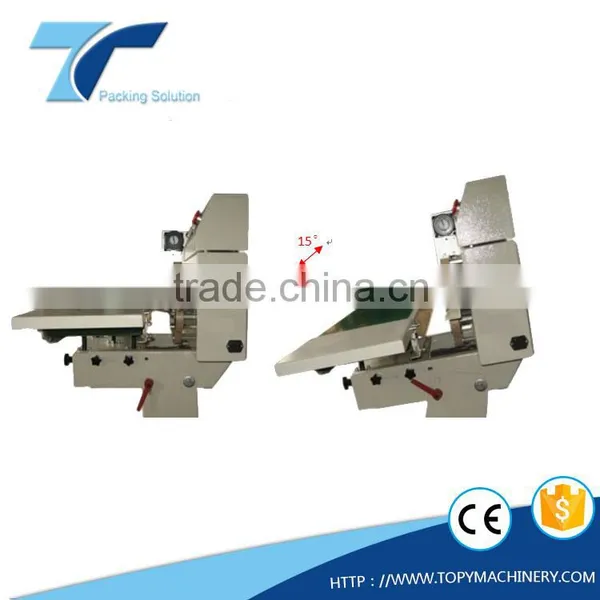

Conveyor can adjust with the height and make an angle down to 15 degrees.
