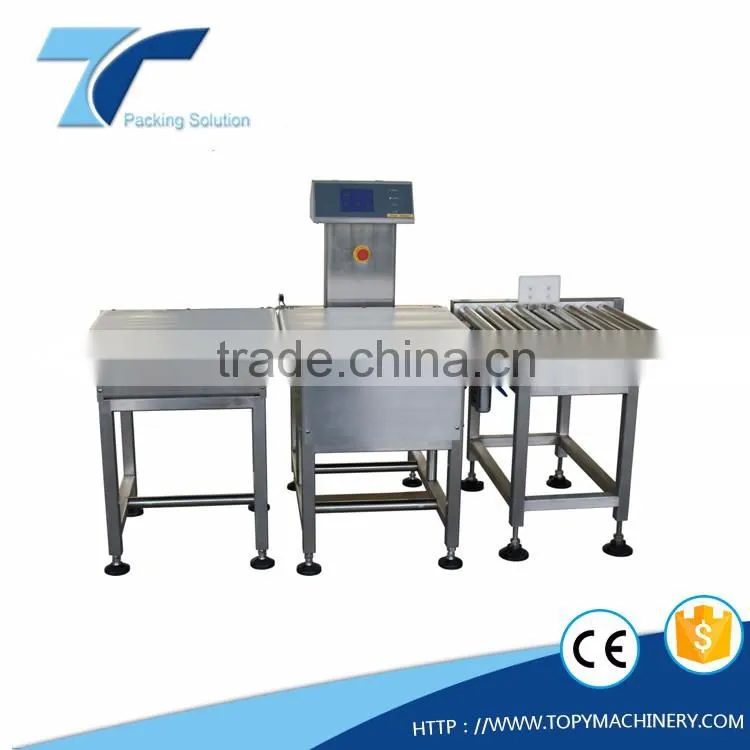

Automatic Stainless Steel Check Weigher, Weight Checking and Sorting Machine, Check Scale for Packaging System

Automatic Stainless Steel Check Weigher, Weight Checking and Sorting Machine, Check Scale for Packaging System thumbnail-1
Automatic Stainless Steel Check Weigher, Weight Checking and Sorting Machine, Check Scale for Packaging System thumbnail-2
Automatic Stainless Steel Check Weigher, Weight Checking and Sorting Machine, Check Scale for Packaging System thumbnail-3
Automatic Stainless Steel Check Weigher, Weight Checking and Sorting Machine, Check Scale for Packaging System thumbnail-4
Automatic Stainless Steel Check Weigher, Weight Checking and Sorting Machine, Check Scale for Packaging System thumbnail-5
Automatic Stainless Steel Check Weigher, Weight Checking and Sorting Machine, Check Scale for Packaging System photo-1
Automatic Stainless Steel Check Weigher, Weight Checking and Sorting Machine, Check Scale for Packaging System photo-2

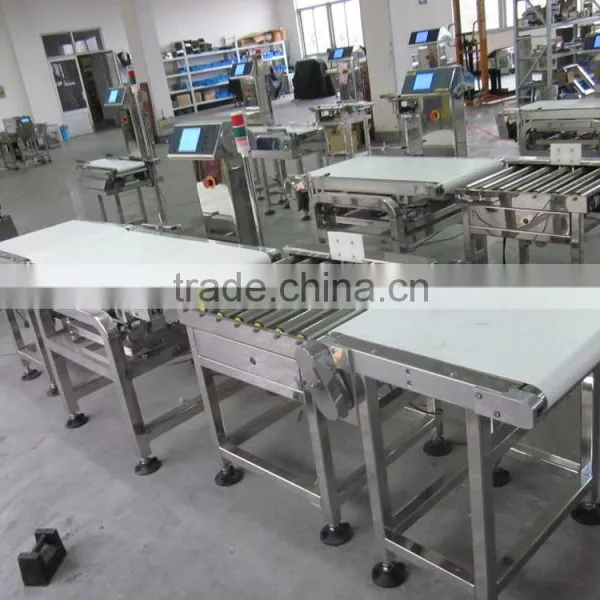

Automatic Stainless Steel Check Weigher, Weight Checking and Sorting Machine, Check Scale for Packaging System photo-3
Automatic Stainless Steel Check Weigher, Weight Checking and Sorting Machine, Check Scale for Packaging System photo-4
Automatic Stainless Steel Check Weigher, Weight Checking and Sorting Machine, Check Scale for Packaging System photo-5
US$ 6,500 - 8,100 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TOP Y MACHINERY
Model Number:
TOPY-CW500HS
Contact Supplier Request Quote Chat Now
Foshan Top Y Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shunde Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name TOP Y MACHINERY
Model Number TOPY-CW500HS
Type Checkweigher
Power Supply AC110V/220V 50-60HZ
Display Type Touch Screen
Rated Load 40kg
Accuracy 5g

Automatic stainless Steel Check weigher, Weight checking and sorting machine, Check Scale for packaging system



Product Description

 Automatic stainless Steel Check weigher, Weight checking and sorting machine, Check Scale for packaging system









[FEATURES]
1.Strong stainless steel structure; Water proof design

2.High accurate load cell; Based on advanced DSP technology.
3. Automatic weighing compensation and zero tracking.
4. 100 products preset; Easy to edit and recall.
5. Quickly product shift and speed recall.
6. 2000 sorting records; Printer output ready.
7. LCD with Touch screen; Friendly operation interface.







[PURPOSE]



1. Applied to automatic online package weighing and sorting.



2.Auto-Statistic function turn weighing, maintenance, operation, statistic to more easier.







[SPECIFICATIONS]



   Model

   CW-500HS

   Measurement

   Strain Guage

   Rejection

   Pusher with roller conveyor (Option)

   Operation

   Touch Screen

   Alarm

Buzzer & Lamp

   Belt Width

   490mm

   Power

   AC110V/220V 50-60HZ

   Rated Output

   Appr.100W

   Dimension

   1130mm(L)*955mm(W)*800±20mm(H)

   Weight

   155kg







[500HS CHART]



Weight

Accuracy

Minimum Scale

Max. Speed

100g-40kg

±30g

5g

20bags/min

Automatic stainless Steel Check weigher, Weight checking and sorting machine, Check Scale for packaging system

Automatic stainless Steel Check weigher, Weight checking and sorting machine, Check Scale for packaging system

Automatic stainless Steel Check weigher, Weight checking and sorting machine, Check Scale for packaging system

 Automatic stainless Steel Check weigher, Weight checking and sorting machine, Check Scale for packaging systemAutomatic stainless Steel Check weigher, Weight checking and sorting machine, Check Scale for packaging systemAutomatic stainless Steel Check weigher, Weight checking and sorting machine, Check Scale for packaging system

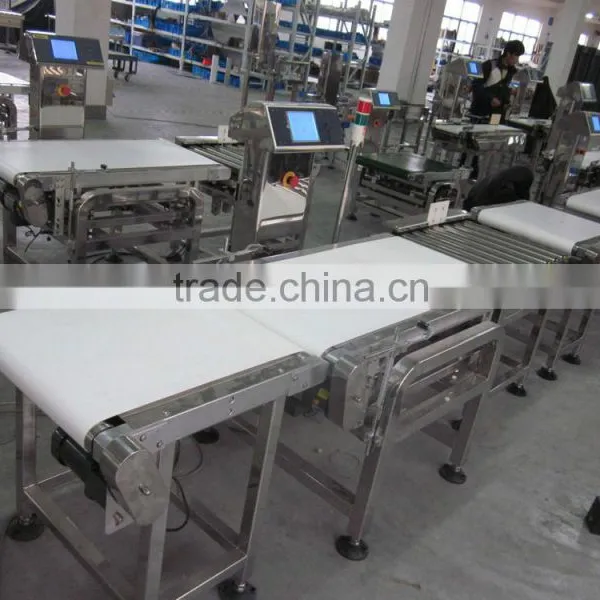

production process

 Automatic stainless Steel Check weigher, Weight checking and sorting machine, Check Scale for packaging system

Certifications

 Automatic stainless Steel Check weigher, Weight checking and sorting machine, Check Scale for packaging system

Packaging & Shipping

 Automatic stainless Steel Check weigher, Weight checking and sorting machine, Check Scale for packaging system

FAQ

 Automatic stainless Steel Check weigher, Weight checking and sorting machine, Check Scale for packaging system
