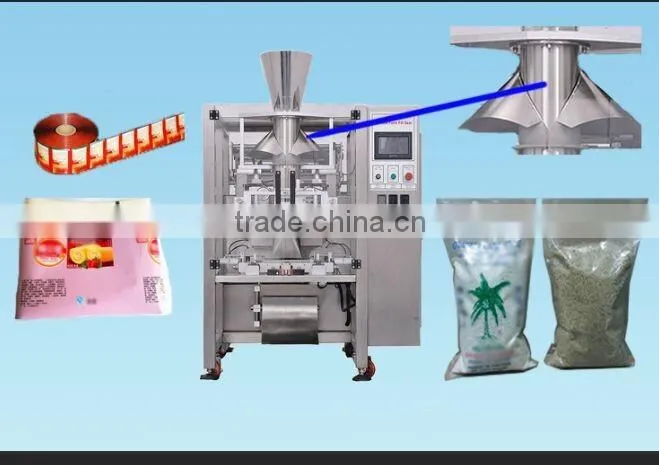

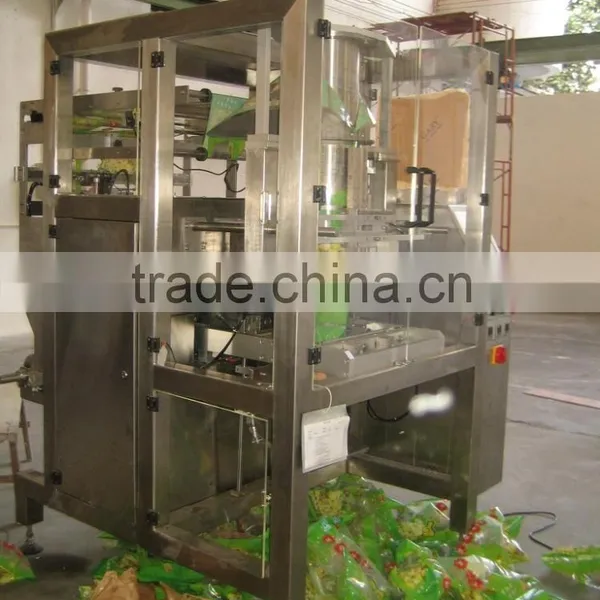

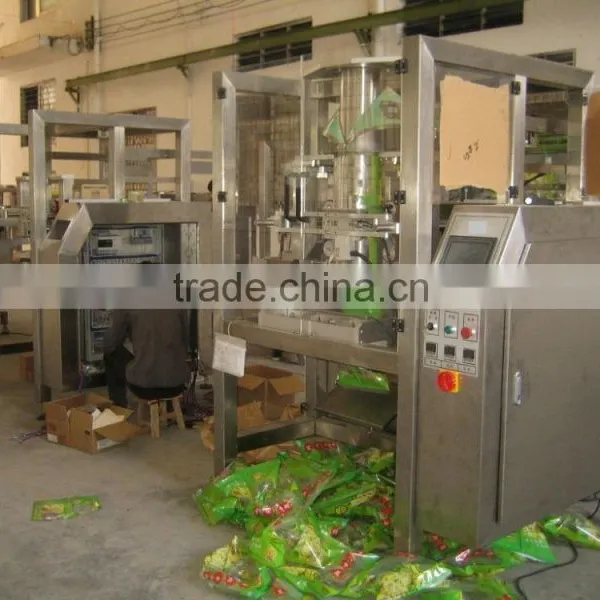

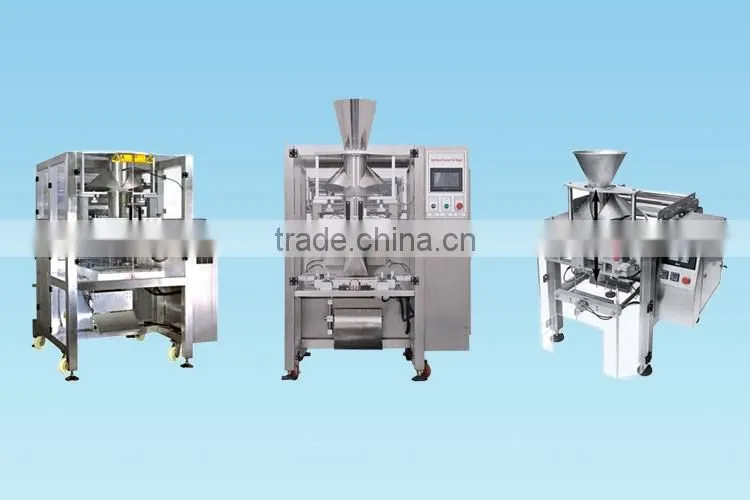

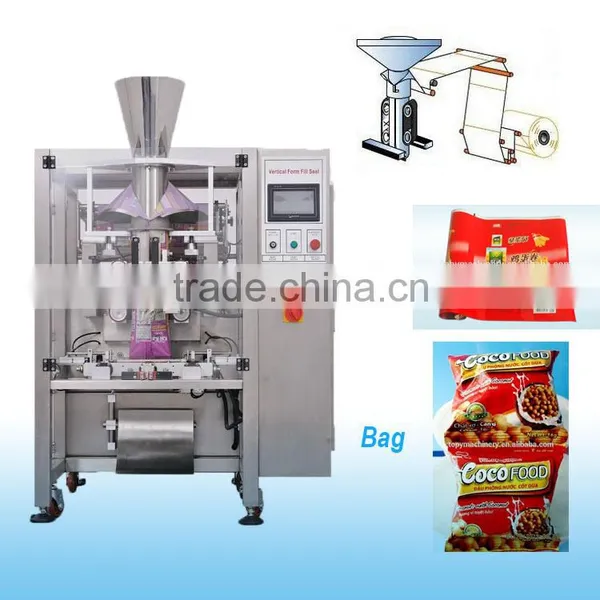

TOPY-VP800 high qualtiy automatic vffs bag rice packaging machine
Application

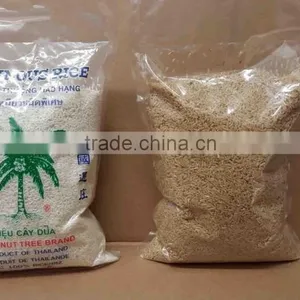

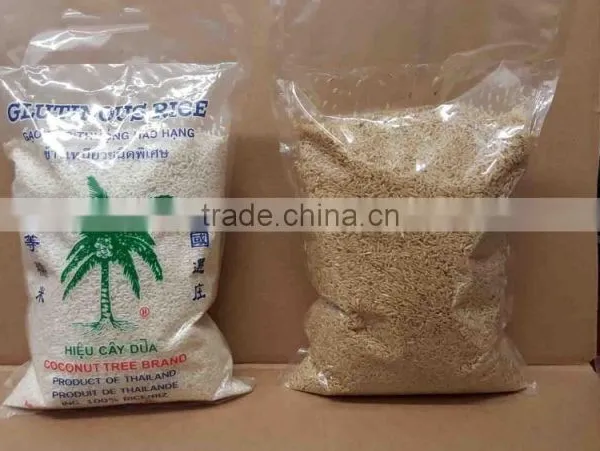

Loose solid material, such as puffy food, shrimp roll, rice,peanut, popcorn, cornmeal, seed, sugar and salt etc. which shape is roll, slice and granule.

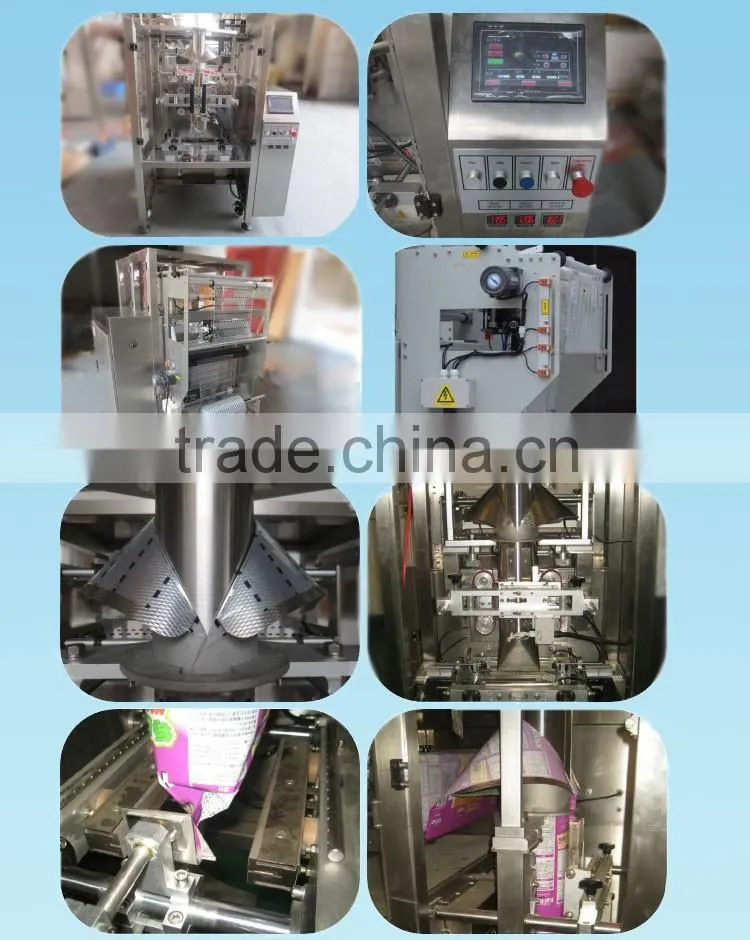

- PLC controller with touch screen interface
- Servo-driven end seal jaws

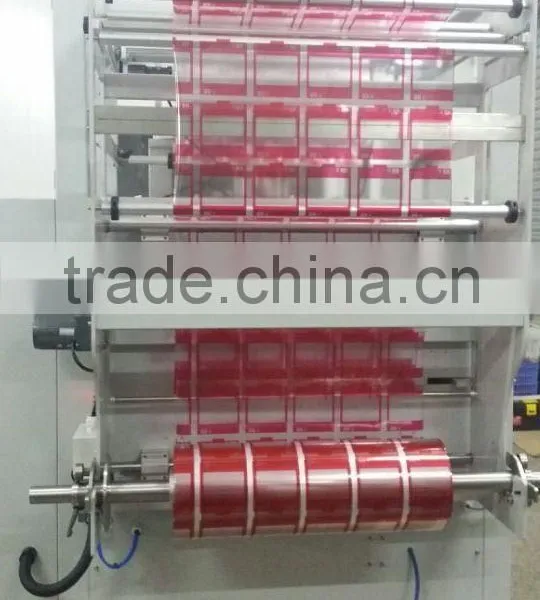

- Servo-driven film transport
- Hot printer and film feeding system synchronous
- Quickly changing one-piece bag former
- Eye mark sensor for film tracking
- Stainless steel frame
|
Filling Systems Fits most fillers for dry or liquid applications: - Auger fillers - Cup fillers - Linear scales - Combination weighers - Combination scales
Packing material - Heat sealable roll film - Single-layer PE - Laminated film
Bag style - Stand pillow bag - Bag with hole - Gusset bag - Square bottom bag - Chain bag |
Optional device - Air flushing system - Nitrogen gas flushing - Gusset device - Air expeller - Hole punch device - Tear notch device - Material stopper - Safety device - Bag support - PE sealing system - Vacuum device - Flip device - Static eliminator - 4 lines folding device - Film tracking device - Special sealing jaws |
Model |
TOPY-VP800 |
Max packing speed |
50bags/min |
Bag size |
(L)100-480mm* (W)160-390mm |
Type of bag making |
Pillow bag, gusseted bag, punching bag,vacuum bag |
Max film width |
800mm |
Film thickness |
0.04-0.09mm |
Air consumption |
0.6Mpa 0.7m3/min |
Voltage |
4kw, 220V 50/60HZ |
Dimension |
(L)1680*(W)1400*(H)1850mm |
Net weight |
980kg |
