PCI Express Mini Card

Name: PCI Express Mini Card
Brand: KingDisk
SKU: 125944985
Availability: InStock

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Application:

Other, motherboard with Mini PCIe socket

Type:

Internal

Shenzhen Kingdisk Century Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Application Other, motherboard with Mini PCIe socket

Type Internal

Style SSD

SSD Capacity 64GB

Size Other, 30mmX50mm or 30mmx70mm

Interface Type Other, Mini-PCIE

Speed Other, N/A

Cache Other, N/A

Brand Name KingDisk

Model Number SSD-KD-SMP-MJ5

Place of Origin Guangdong, China

Specifications

1.PCI Express Mini Card
2.Max Read:97MB/s *Max Write:53MB/s
3.Capacity:4GB-64GB
4.CE,FCC,RoHS
5.With 2 years warranty

SSD-KD-SMP-MJ5
Item	Model	SSD-KD-SMP-MJ5
	Interface	Mini PCIe SATA
Performance	Capacity(GB)	8GB	16GB	32GB	64GB
	Sustained Read	75MB/S	95MB/S	97MB/S	97MB/S
	Sustained Write	25MB/S	30MB/S	53MB/S	53MB/S
Storage Media	NAND Flash	MLC
Power Consumption	input Voltage	5V+/_5%
	Idle	0.5W
	Active	1.5W
Reliability& Endurance	Write endurance	8years @100GBytes write and erase per day at 32GB
	Read endurance	unlimited
	Wear-Leveling Algorithm	Dynamic and static wear-leveling
	Data Retention	10years at 25ºC
	MTBF	1,000,000hours
	ECC	support NCQ,TRIM 16bits or 24bits in 1024 bytes
	Bad Block Management	Auto Bad Block Management in system
Environment	Operating Temperature	0~70°C
	Non-operating Temperature	-40~85°C
	Ambient Humidity	5-95%
Warranty	2years
Available unit	Available	NO EOL
Testing Platform	Intel Celeron 336 2.80GHz,DDR2 PC2-5300 512MB×2pcs single channel RAM, VIA VT8237A VIA P4M900 Chipset,Microsoft Windows XP Professional SP2
Testing Software	HDBench3.4.0.3, IOMeter 2006.07.27

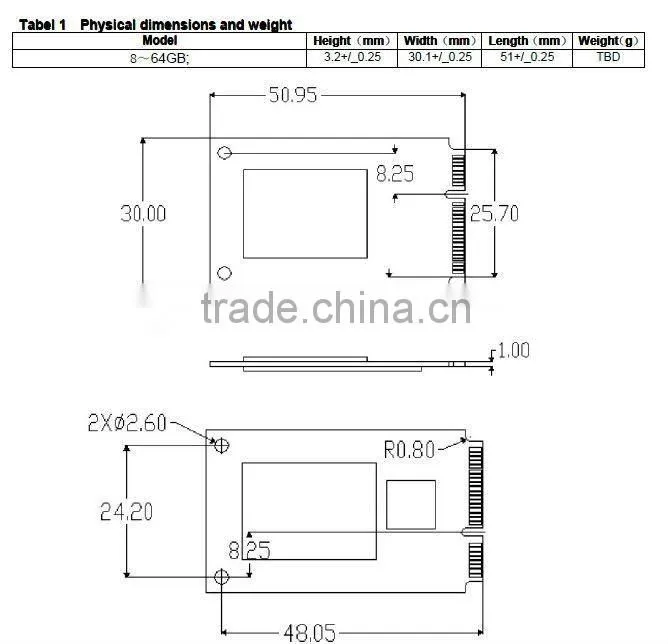

Physical Dimensions & Weight	Height(mm)	3.5±0.25
	Width(mm)	30+/_0.05
	Length(mm)	50+/_0.05
The read and write speed is limited to this test platform.
