Help CenterHard Disk External
US$ 20 - 220
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Other, Any PC board with IDE interface
Type:
Internal
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Products Status
Stock
Application
Other, Any PC board with IDE interface
Type
Internal
Style
SSD
SSD Capacity
Other, 8GB-256GB
Size
Other, 2.5"
Interface Type
IDE
Brand Name
KingDian
Model Number

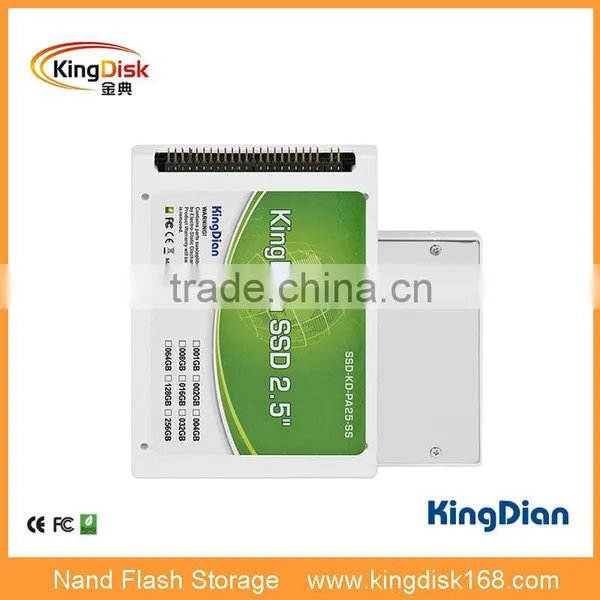

SSD-KD-PA25-MJ
Place of Origin
Guangdong, China
Specifications
hard disk externalInterface standard: 44pin IDE
Density:8GB-256GB
Support static and dynamic wear-leveling,
| SSD-KD-PA25-MJ | |||||||
| Item | Model | SSD-KD-PA25-MJ | |||||
| General | Form factor | 2.5" | |||||
| interface | IDE 44pins | ||||||
| Performance | Capacity(GB) | 8GB | 16GB | 32GB | 64GB | 128GB | 256GB |
| Sustained Read | 30MB/S | 66MB/S | 67MB/S | 65MB/S | 67MB/S | 67MB/S | |
| Sustained Write | 29MB/S | 51MB/S | 76MB/S | 73MB/S | 75MB/S | 75MB/S | |
| Random IOPS | 6325 | ||||||
| Average Access time | 0.2ms | ||||||
| Storage Media | NAND Flash | MLC(Test Flash:K9GAG08U0M) | |||||
| Power Consumption | input Voltage | 5V± 5% | |||||
| Idle | 0.7W | ||||||
| Active | 1.8W | ||||||
| Reliability& Endurance | Write endurance | 80years@10GBytes write and erase per day at 256GB | |||||
| Read endurance | unlimited | ||||||
| Wear-Leveling Algorithm | Dynamic and static wear-leveling | ||||||
| Data Retention | 10years at 25ºC | ||||||
| MTBF | 1,000,000hours | ||||||
| ECC | Supports BCH ECC 8bits or 15bits in 512 bytes | ||||||
| Bad Block Management | Auto Bad Block Management in system | ||||||
| Environment | Operating Temperature | 0~70ºC | |||||
| Non-operating Temperature | -45~85ºC | ||||||
| Shock | 2,000G(@0.3ms half sine wave) | ||||||
| Vibration | 20G(40-2000HZ) | ||||||
| Humidity | 5-95% | ||||||
| Warranty | 2years | ||||||
| Available unit | Available,NO EOL | ||||||
| Testing Platform | Intel Celeron 336 2.80GHz,DDR2 PC2-5300 512MB×2pcs single channel RAM, VIA VT8237A VIA P4M900 Chipset,Microsoft Windows XP Professional SP2 | ||||||
| Testing Software | HDBench3.4.0.3, IOMeter 2006.07.27 | ||||||
| Physical Dimensions& Weight | Height(mm) | 9.5± 0.25 | |||||
| Width(mm) | 69.8± 0.25 | ||||||
| Length(mm) | 100.2± 0.25 | ||||||
| Weight(g) | 70 | ||||||
| The read and write speed is limited to this test platform. | |||||||
