SATA 1.8 Solid State Drive

Specifications

SATA 1.8 Solid State Drive
Support NCQ,SMART
Density: 8GB-128GB
Support static and dynamic wear-leveling, bad block managemen

SSD-KD-SA18-MJ5
Item	Model	SSD-KD-SA18-MJ5
General	Form factor	1.8"
	interface	SATA Ⅱ
Performance	Capacity(GB)	8GB(2C)	16GB(4C)	32GB(4C)	64GB(4C)	128GB(4C)
	Sustained Read	50MB/S	97MB/S	97MB/S	97MB/S	97MB/S
	Sustained Write	14MB/S	30MB/S	53MB/S	53MB/S	53MB/S
	Random IOPS	5,166
	Average Access time	0.2ms
Storage Media	NAND Flash	SLC(Test Flash:K9LBG08U0M)
Power Consumption	input Voltage	5V± 5%
	Idle	0.5W
	Active	2.0W
Reliability& Endurance	Write endurance	80years@10GBytes write and erase per day at 32GB
	Read endurance	unlimited
	Wear-Leveling Algorithm	Dynamic and static wear-leveling
	Data Retention	10years at 25°C
	MTBF	1,000,000hours
	ECC	Supports BCH ECC 8bits or 15bits in 512 bytes
	Bad Block Management	Auto Bad Block Management in system
Environment	Operating Temperature	0~70°C
	Non-operating Temperature	-40~85°C
	Shock	2,000G(@0.3ms half sine wave)
	Vibration	20G(40-2000HZ)
	Humidity	5-95%
Warranty		2years
Available unit		Available,NO EOL
Testing Platform	AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel. RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3
Testing Software	HDBench3.4.0.3, IOMeter 2006.07.27

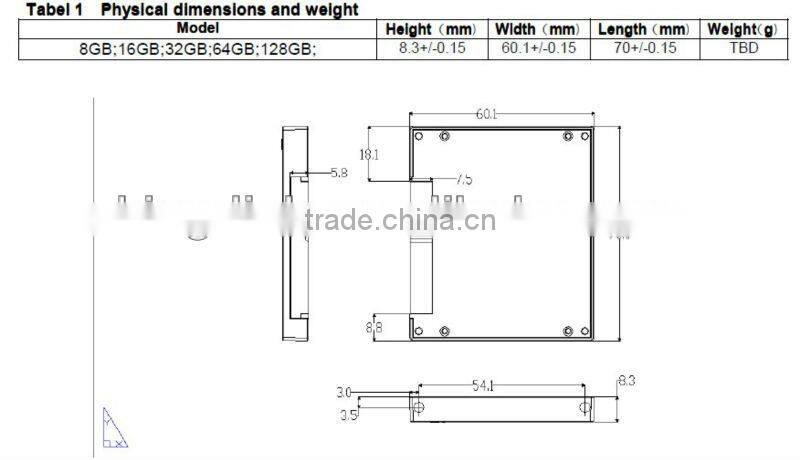

Physical Dimensions& Weight	Height(mm)	8.3± 0.25
	Width(mm)	60.1± 0.25
	Length(mm)	70.0± 0.25
	Weight(g)	40
The read and write speed is limited to this test platform.
