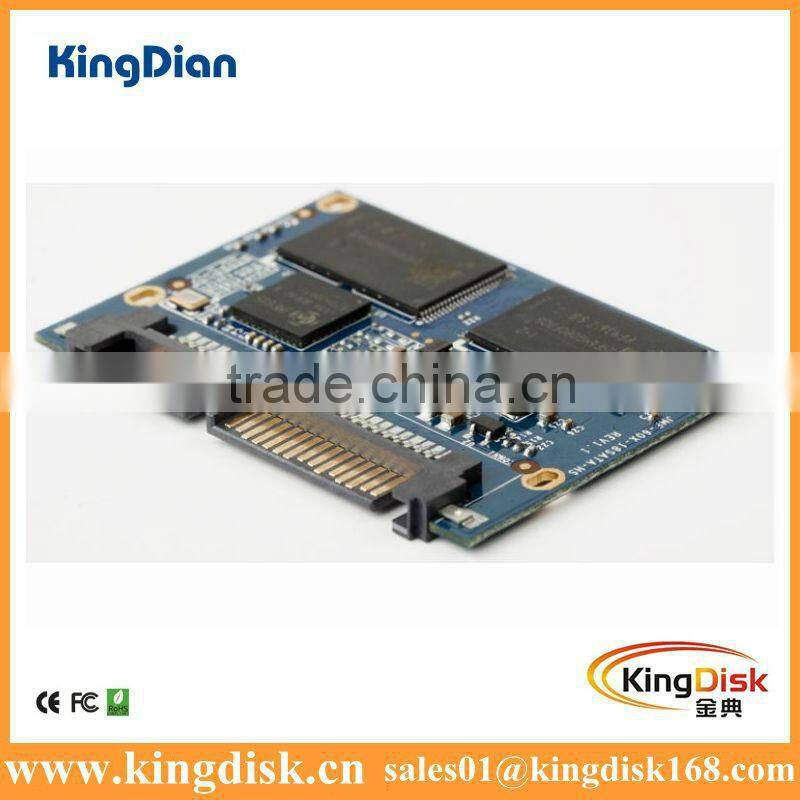

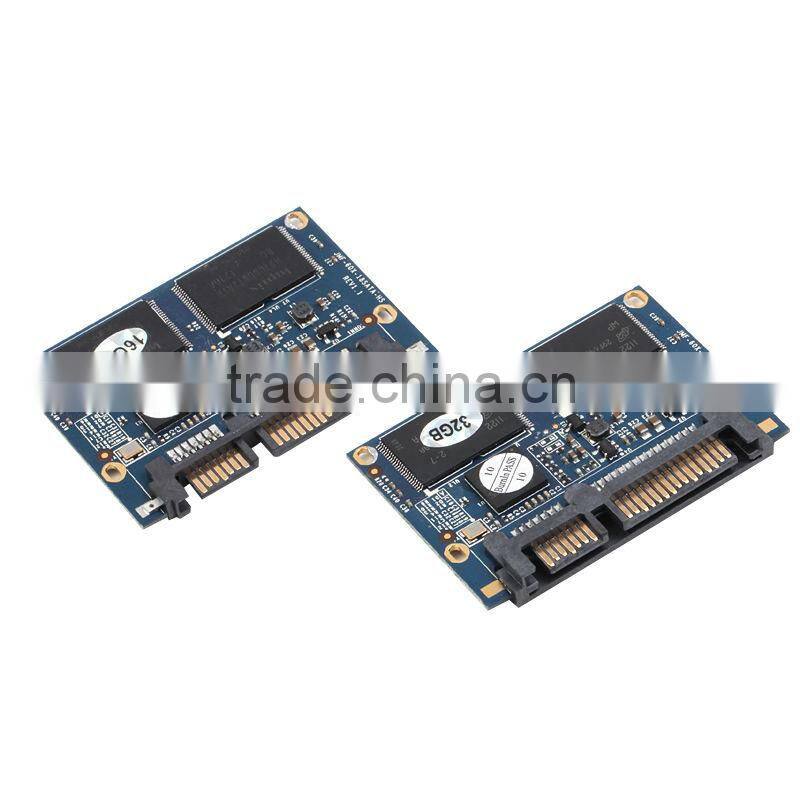

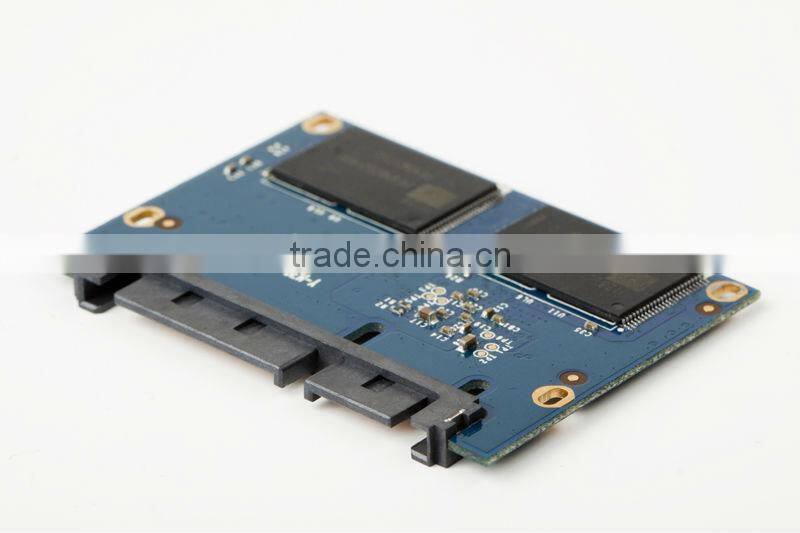

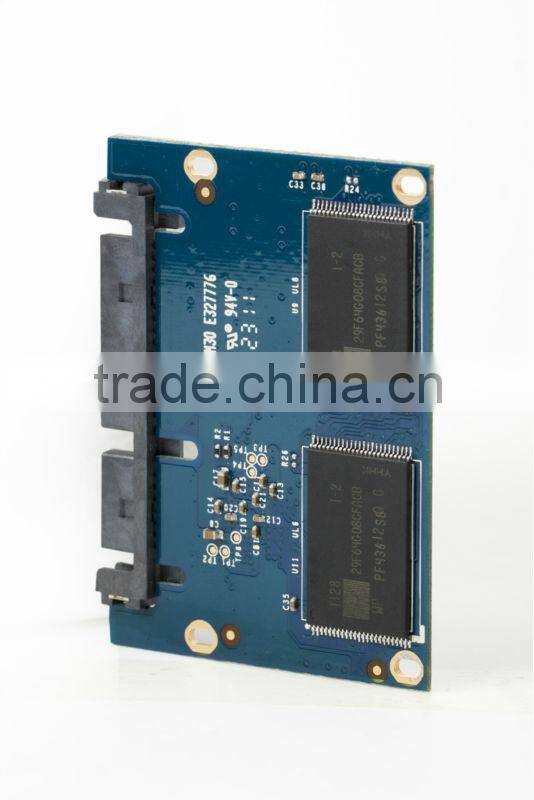

1.8 Inch 3Gb/s Half Slim SATA Module SSD 64GB

Name: 1.8 Inch 3Gb/s Half Slim SATA Module SSD 64GB
Brand: KingDian
SKU: 125943851
Availability: InStock

Shenzhen Kingdisk Century Technology Co., Ltd.

Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Application:

Other, Notebook MID ATM,storage equipment

Type:

Internal

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Application Other, Notebook MID ATM,storage equipment

Type Internal

Style SSD

SSD Capacity 32GB

Size Other, 1.8"

Interface Type SATAII

Speed Other, N/A

Cache Other, N/A

Brand Name KingDian

Model Number SSD-KD-HS-MJ5

Place of Origin Guangdong, China

Specifications

1.8 inch 3Gb/s half slim SATA module SSD
2.NCQ,ECC,TRIM,RAID Support
3.Capacity:4GB~128GB
4.CE,FCC,RoHS
5.2 years warranty

Name : 1.8 inch 3Gb/s half slim SATA module SSD 64GB (4GB~128GB)

SSD-KD-HS-MJ5
Item	Model	SSD-KD-HS-MJ5
	Interface	SATAⅡ
Performance	Capacity(GB)	8GB(2C)	16(4CH)	32(4CH)	64(4CH)	128(4CH)
	Sustained Read	73MB/s	144MB/s	150MB/s	153MB/s	158MB/s
	Sustained Write	15MB/s	32MB/s	64MB/s	108MB/s	103MB/s
	Random IOPS	6K
	Average Access time	0.2ms
Storage Media	NAND Flash	MLC
Power Consumption	input Voltage	5V+/_5%
	Idle	0.5W
	Active	2.0W
Reliability& Endurance	Write endurance	8years @100GBytes write and erase per day at 100GB
	Read endurance	unlimited
	Wear-Leveling Algorithm	Dynamic and static wear-leveling
	Data Retention	10years at 25ºC
	MTBF	1,000,000hours
	ECC	support NCQ,TRIM 16bits or 24bits in 1024 bytes
	Bad Block Management	Auto Bad Block Management in system
Environment	Operating Temperature	0~70°C
	Non-operating Temperature	-40~85°C
	Ambient Humidity	5-95%
Warranty	2years
Available unit	Available	NO EOL
Testing Platform	CPU:Intel® Core™ i3 Duo CPU 540 @ 3.07GHz Chipset:Intel® H55 Express Chipset Memory:Kingston KVR800D2N5/2G OS:Microsoft Windows 7 Professional 64-bit AHCI Driver:Intel® Rapid Storage Technology – Intel® ICH10R SATA AHCI Controlle v9.6 BIOS Settings: AHCI Mode
Testing Software	ATTO Disk Benchmark,CrystalDiskMark v3.0 ,HD Tach RW 3.0.1.0,HD Tune PRO 3.50
Physical Dimensions & Weight	Height(mm)	4.0 ±0.1
	Width(mm)	39.0 ±0.1
	Length(mm)	54.0 ±0.1
	Weight(g)	8+/_0.5
The read and write speed is limited to this test platform.
