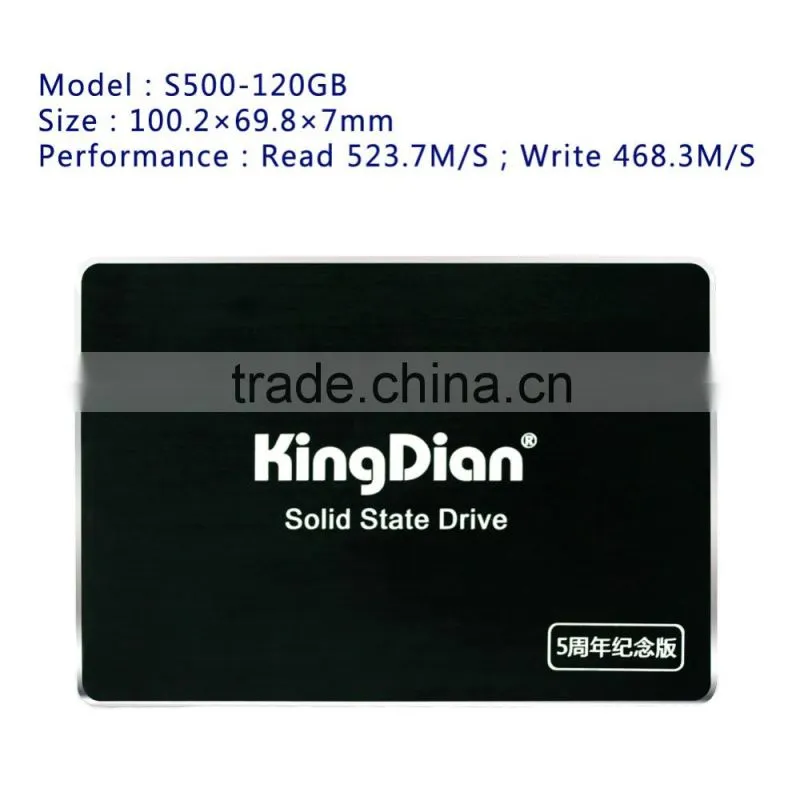

KingDian S500 120GB Internal 2.5'' SSD Solid State Hard Disk

                                                                        SSD professional manufacturer

KingDian S500 120GB Internal 2.5'' SSD Solid State Hard Disk

Interface: SATAIII

Dimension: 100*70*7 mm

Capacity: 120GB

SDram: 128MB

Flash type: MLC NAND Flash

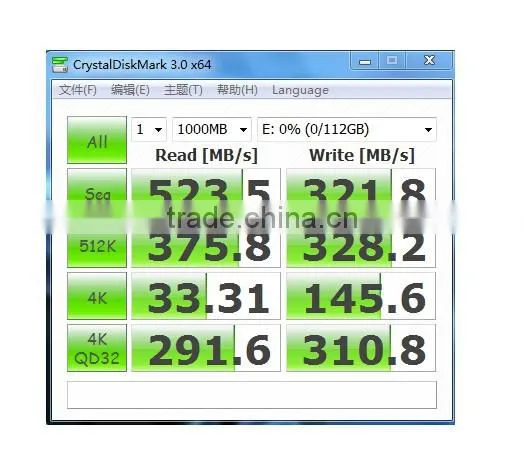

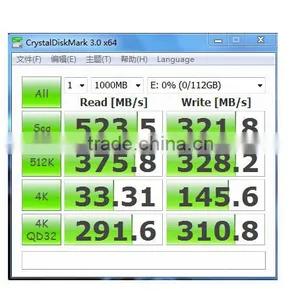

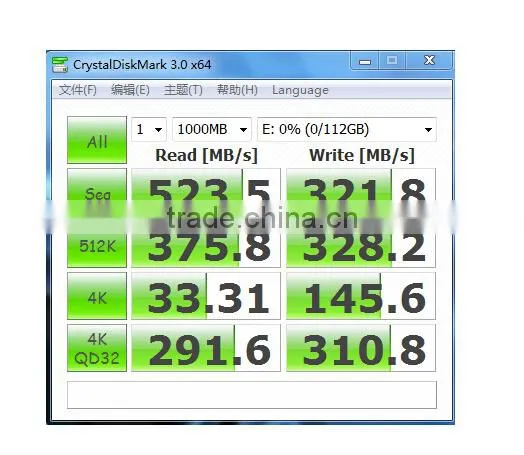

Read/Write Performance:

Sequential Read: Up to 523MB/s

Sequential Write: Up to 321MB/s

4KB Random Read IOPS: 70000

4KB Random Write IOPS: 3000

Response Time: 0.2ms

Power Consumption:

Power Supply: 5V+5%

Standby: 0.3W

Maximum Ripple: 70 mV(peak to peak)

4KB Random Write: 2.5W

Reliability:

Write endurance: 8 years 100G write/day(32G)

Read endurance: unlimited

MTBF: >2,000,000 hours

Data retention: >20years 25

Data destroy do not support

Sudden power-off recovery support

Support: S.M.A.R.T, NCQ,Trim and dynamic power management.

Static and dynamic wear-leveling

Bad block management algorithm

ECC: Supports BCH ECC 12/14/40 bits in 1024 bytes

Environment:

Storage temperature: -55~95

Operation temperature: -0~55

Humidity: 5%~95%

Vibration: 15G (10 to 2000Hz)

Shock: 350G at 0.5ms

Warranty: 3 years

Specifications:

1)Physical Dimensions: Parameter Value

Length(Parameter): 100+0.1mm(Value)

width (Parameter): 70+0.1 mm(Value)

height(Parameter): 7+0.1 mm(Value)

Table 3 Physical dimensions of the driver

2) Interface Mode:

The interface of the 2.5" SATA SSD complies with the standard Serial ATA version 3.1:

1,Host Transfer Rate is 600MB/s(6.0Gb/s)

2,PIO mode 0,1,2,3,4

3,DMA mode 0,1,2

4,UDMA mode 0,1,2,3,4,5,6
