Home > Products > S280 SATA3 Series > KingDian S280 120GB 2.5'' internal disque dur SSD Solid hard drive 120GB for PC laptop desktop

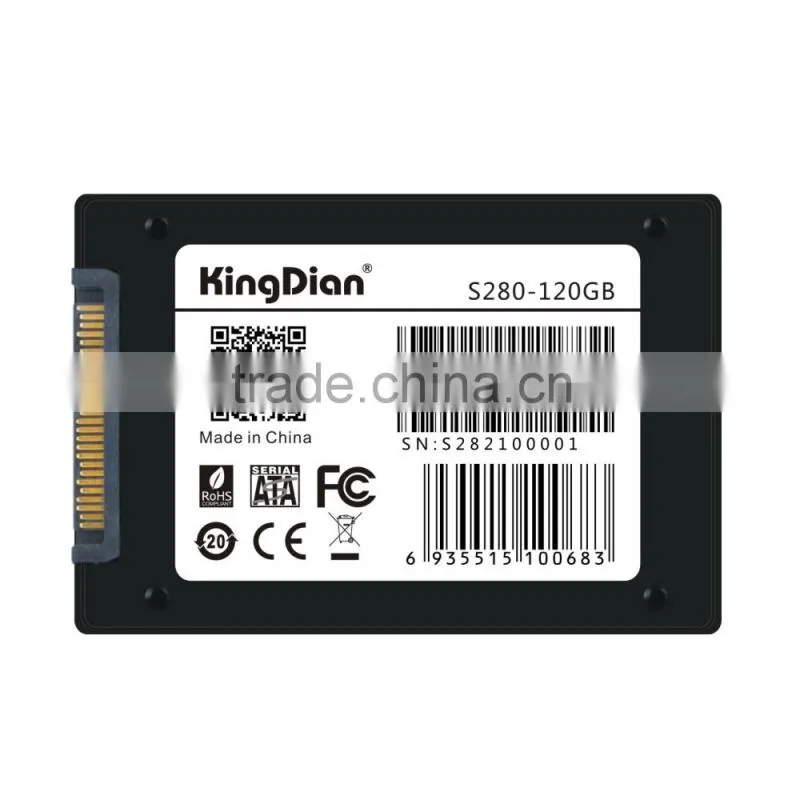

KingDian S280 120GB 2.5'' internal disque dur SSD Solid hard drive 120GB for PC laptop desktop
- 50000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
Product Details
Products Status: | Stock | Application: | Laptop | Type: | Internal |
Style: | SSD | SSD Capacity: | Other, 120gb | Size: | Other, 2.5" |
Interface Type: | SATAII | Speed: | Other, N/A | Cache: | Other, 128MB |
Brand Name: | KingDisk | Model Number: | S280 | Place of Origin: | Guangdong, China |
Product Description
Kingdian brand S280 120GB 2.5'' internal disque dur SSD hard drive 120GB for PC laptop desktop
Based spec:
Interface: SATAIII
Dimension: 100*70*7 mm
Capacity: 128GB
SDram: 128MB
Flash type: TLC NAND Flash
Read/Write Performance:
Sequential Read: Up to 559MB/s
Sequential Write: Up to 380MB/s
4KB Random Read IOPS: 70000
4KB Random Write IOPS: 3000
Response Time: 0.2ms
Power Consumption:
Power Supply: 5V+5%
Standby: 0.3W
Maximum Ripple: 70 mV(peak to peak)
4KB Random Write: 2.5W
Reliability:
Write endurance: 8 years 100G write/day(32G)
Read endurance: unlimited
MTBF: >2,000,000 hours
Data retention: >20years 25
Data destroy do not support
Sudden power-off recovery support
Support: S.M.A.R.T, NCQ,Trim and dynamic power management.
Static and dynamic wear-leveling
Bad block management algorithm
ECC: Supports BCH ECC 12/14/40 bits in 1024 bytes
Environment:
Storage temperature: -55~95
Operation temperature: -0~55
Humidity: 5%~95%
Vibration: 15G (10 to 2000Hz)
Shock: 350G at 0.5ms
Warranty: 3 years
Specifications:
1)Physical Dimensions: Parameter Value
Length(Parameter): 100+0.1mm(Value)
width (Parameter): 70+0.1 mm(Value)
height(Parameter): 7+0.1 mm(Value)
Table 3 Physical dimensions of the driver
2) Interface Mode:
The interface of the 2.5" SATA SSD complies with the standard Serial ATA version 3.1:
1,Host Transfer Rate is 600MB/s(6.0Gb/s)
2,PIO mode 0,1,2,3,4
3,DMA mode 0,1,2
4,UDMA mode 0,1,2,3,4,5,6
