Specifications
1.flash storage SSD2. Max R/W:160/128MB/s
3.mSATA Mini PCIE
mini mSATA SATAII Solid State Drive
| SSD-KD-MSATA-MJ5 | ||||||
| Item | Model | SSD-KD-MSATA-MJ5 | ||||
| Interface | SATAⅡ | |||||
| Performance | Capacity(GB) | 8GB(2CH) | 16GB(4CH) | 32GB(4CH) | 64GB(4CH) | |
| Sustained Read | 77MB/S | 143MB/S | 150MB/s | 152MB/S | ||
| Sustained Write | 15MB/S | 27MB/S | 58MB/s | 65MB/S | ||
| Random IOPS | 6K | |||||
| Average Access time | 0.2ms | |||||
| Storage Media | NAND Flash | MLC | ||||
| Power Consumption | input Voltage | 3.3V+/_5% | ||||
| Idle | 0.5W | |||||
| Active | 2.0W | |||||
| Reliability& Endurance | Write endurance | 8years @100GBytes write and erase per day at 32GB | ||||
| Read endurance | unlimited | |||||
| Wear-Leveling Algorithm | Dynamic and static wear-leveling | |||||
| Data Retention | 10years at 25ºC | |||||
| MTBF | 1,000,000hours | |||||
| ECC | support NCQ,TRIM 16bits or 24bits in 1024 bytes | |||||
| Bad Block Management | Auto Bad Block Management in system | |||||
| Environment | Operating Temperature | 0~70°C | ||||
| Non-operating Temperature | -40~85°C | |||||
| Ambient Humidity | 5-95% | |||||
| Warranty | 2years | |||||
| Available unit | Available | NO EOL | ||||
| Testing Platform | CPU:Intel® Core™ i3 Duo CPU 540 @ 3.07GHz Chipset:Intel® H55 Express Chipset Memory:Kingston KVR800D2N5/2G OS:Microsoft Windows 7 Professional 64-bit AHCI Driver:Intel® Rapid Storage Technology – Intel® ICH10R SATA AHCI Controlle v9.6 BIOS Settings: AHCI Mode | |||||
| Testing Software | ATTO Disk Benchmark,CrystalDiskMark v3.0 ,HD Tach RW 3.0.1.0,HD Tune PRO 3.50 | |||||

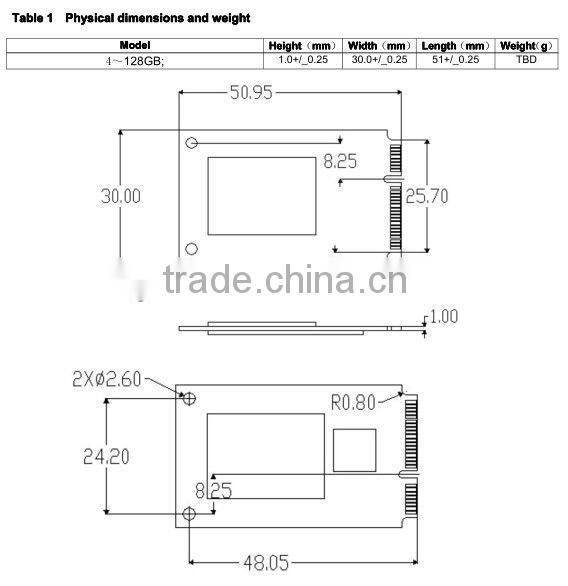

| Physical Dimensions & Weight | Height(mm) | 3.5+/_0.25 | ||||
| Width(mm) | 30+/_0.25 | |||||
| Length(mm) | 23.5+/_0.25 | |||||
| Weight(g) | 3.5+/_0.5 | |||||
| The read and write speed is limited to this test platform. | ||||||
