Mini SATA Nand Flash

Name: Mini SATA Nand Flash
Brand: Kingdian
SKU: 125941861
Availability: InStock

Shenzhen Kingdisk Century Technology Co., Ltd.

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Application:

Other, All PC with Mini PCI-e SATA connector

Type:

Internal

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Application Other, All PC with Mini PCI-e SATA connector

Type Internal

Style SSD

SSD Capacity Other, 4GB-128GB

Interface Type Other, PCI Express mini card

Brand Name Kingdian

Model Number SSD-KD-mSATA-MJ5

Place of Origin Guangdong, China

Specifications

mini SATA nand flash
PCI Express Mini Card-like connector SSD
RAID,TRIM,NCQ,ECC
4GB-128GB
3 years warran

SSD-KD-MSATA-MJ5

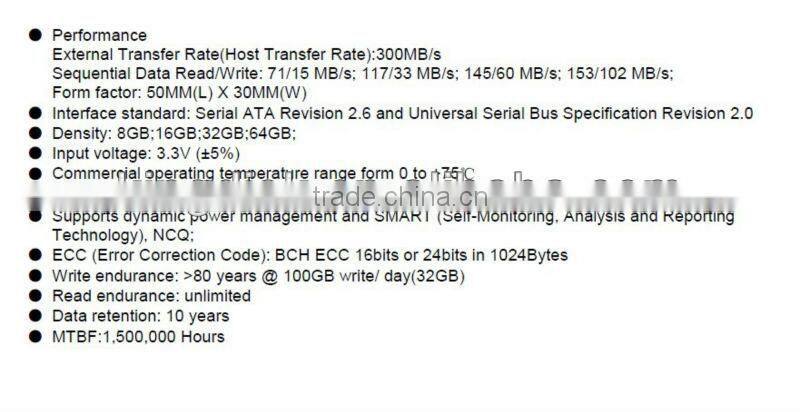

Item	Model	SSD-KD-MSATA-MJ5
	Interface	SATAⅡ
Performance	Capacity(GB)	8GB(2CH)	16GB(4CH)	32GB(4CH)	64GB(4CH)
	Sustained Read	77MB/S	143MB/S	150MB/s	152MB/S
	Sustained Write	15MB/S	27MB/S	58MB/s	65MB/S
	Random IOPS	6K
	Average Access time	0.2ms
Storage Media	NAND Flash	MLC
Power Consumption	input Voltage	3.3V+/_5%
	Idle	0.5W
	Active	2.0W
Reliability& Endurance	Write endurance	8years @100GBytes write and erase per day at 32GB
	Read endurance	unlimited
	Wear-Leveling Algorithm	Dynamic and static wear-leveling
	Data Retention	10years at 25ºC
	MTBF	1,000,000hours
	ECC	support NCQ,TRIM 16bits or 24bits in 1024 bytes
	Bad Block Management	Auto Bad Block Management in system
Environment	Operating Temperature	0~70°C
	Non-operating Temperature	-40~85°C
	Ambient Humidity	5-95%
Warranty	2years
Available unit	Available	NO EOL
Testing Platform	CPU:Intel® Core™ i3 Duo CPU 540 @ 3.07GHz Chipset:Intel® H55 Express Chipset Memory:Kingston KVR800D2N5/2G OS:Microsoft Windows 7 Professional 64-bit AHCI Driver:Intel® Rapid Storage Technology – Intel® ICH10R SATA AHCI Controlle v9.6 BIOS Settings: AHCI Mode
Testing Software	ATTO Disk Benchmark,CrystalDiskMark v3.0 ,HD Tach RW 3.0.1.0,HD Tune PRO 3.50
Physical Dimensions & Weight	Height(mm)	3.5+/_0.25
	Width(mm)	30+/_0.25
	Length(mm)	23.5+/_0.25
	Weight(g)	3.5+/_0.5
The read and write speed is limited to this test platform.
