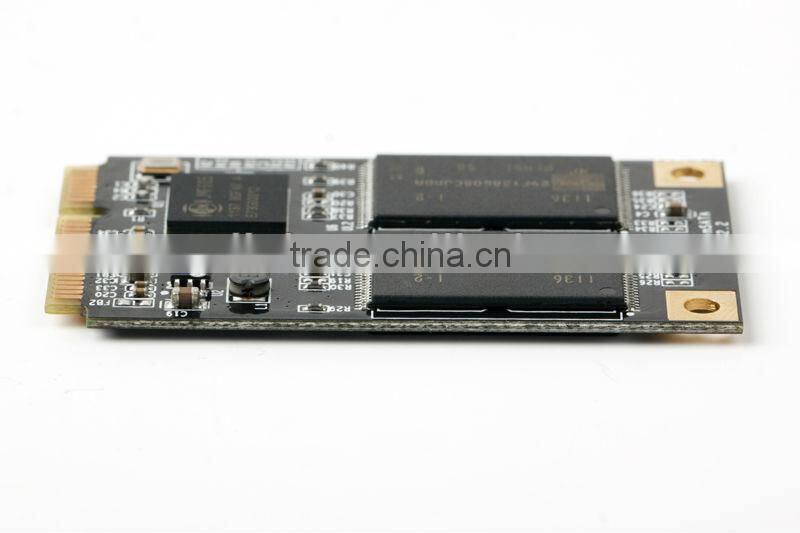

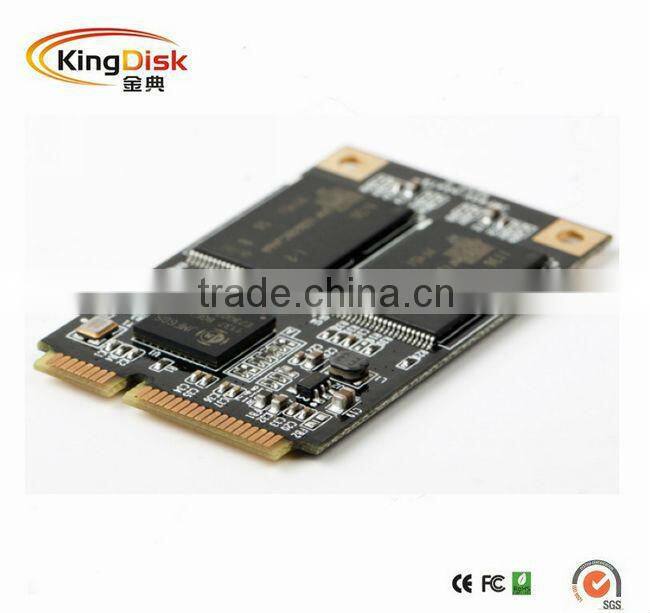

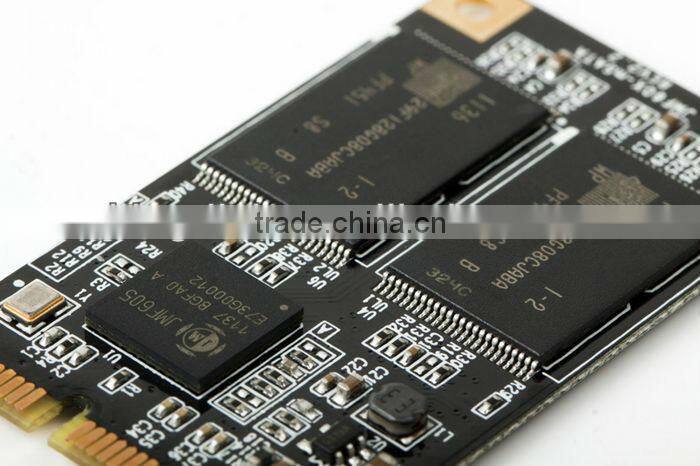

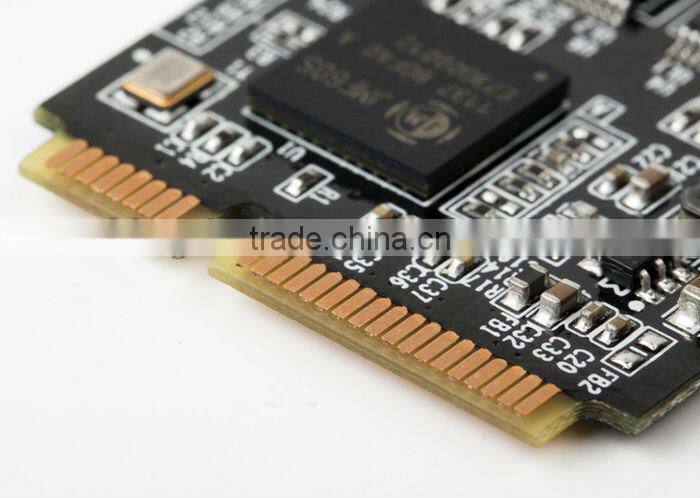

Industrial 32GB Sata Pice Ssd Applied to Embedded System

Specifications

Embedded sata pice ssd 8GB,16GB,32GB,64GB,128GB
1.sata pcie ssd
2.Max R/W:160/128MB/s
3.3years warranty
5.pass CE,FCC,RHoS



Name: Industrial 32GB sata pice ssd applied to Embedded system



KingDian’s Intel mSATA SSD (Solid State Drive) is a high performance and high reliability storage

device based on NAND Flash technology that designed to solve the bottleneck of computing system

by traditional hard disk drives.  KingDian’s Intel mSATA SSD doesn't have a moving parts and it has

a same host interface and same physical dimension with Hard Disk Drive,So it can be drop-in

replaced with the hard disk drives without anything. With a high performance and low power consumption,



KingDian’s Intel mSATA SSD can be a good storage device for NB and Tabletop PC ,

KingDian’s Intel mSATA SSD purely consists of semiconductor devices and NAND flash memories,

which give rugged features against shock and vibration use in extreme environment such as industrial

PC an increased MTBF. Further more, KingDian’s Intel mSATA SSD has highly advanced flash memory

 management algorithm to guarantee higher performance and data integrity.





SSD-KD-MSATA-MIJ5
Item	Model	SSD-KD-MSATA-MIJ5
	Interface	SATAⅡ
Performance	Capacity(GB)	8GB(2CH)	16GB(4CH)	32GB(4CH)	64GB(4CH) ...
	Sustained Read	77MB/S	143MB/S	150MB/s	152MB/S   ...
	Sustained Write	15MB/S	27MB/S	58MB/s	65MB/S   ...
	Random IOPS	6K
	Average Access time	0.2ms
Storage Media	NAND Flash	MLC
Power Consumption	input Voltage	3.3V+/_5%
	Idle	0.5W
	Active	2.0W
Reliability& Endurance	Write endurance	8years @100GBytes write and erase per day at 32GB
	Read endurance	unlimited
	Wear-Leveling Algorithm	Dynamic and static wear-leveling
	Data Retention	10years at 25ºC
	MTBF	1,000,000hours
	ECC	support NCQ,TRIM 16bits or 24bits in 1024 bytes
	Bad Block Management	Auto Bad Block Management in system
Environment	Operating Temperature	0~70°C
	Non-operating Temperature	-40~85°C
	Ambient Humidity	5-95%
Warranty	2years
Available unit	Available	NO EOL
Testing Platform	CPU:Intel® Core™ i3 Duo CPU 540 @ 3.07GHz Chipset:Intel® H55 Express Chipset  Memory:Kingston KVR800D2N5/2G OS:Microsoft Windows 7 Professional 64-bit AHCI Driver:Intel® Rapid Storage Technology – Intel® ICH10R SATA AHCI Controlle v9.6 BIOS Settings: AHCI Mode
Testing Software	ATTO Disk Benchmark,CrystalDiskMark v3.0 ,HD Tach RW 3.0.1.0,HD Tune PRO 3.50
Physical Dimensions & Weight	Height(mm)	3.5+/_0.25
	Width(mm)	30+/_0.25
	Length(mm)	23.5+/_0.25
	Weight(g)	3.5+/_0.5
The read and write speed is limited to this test platform.
