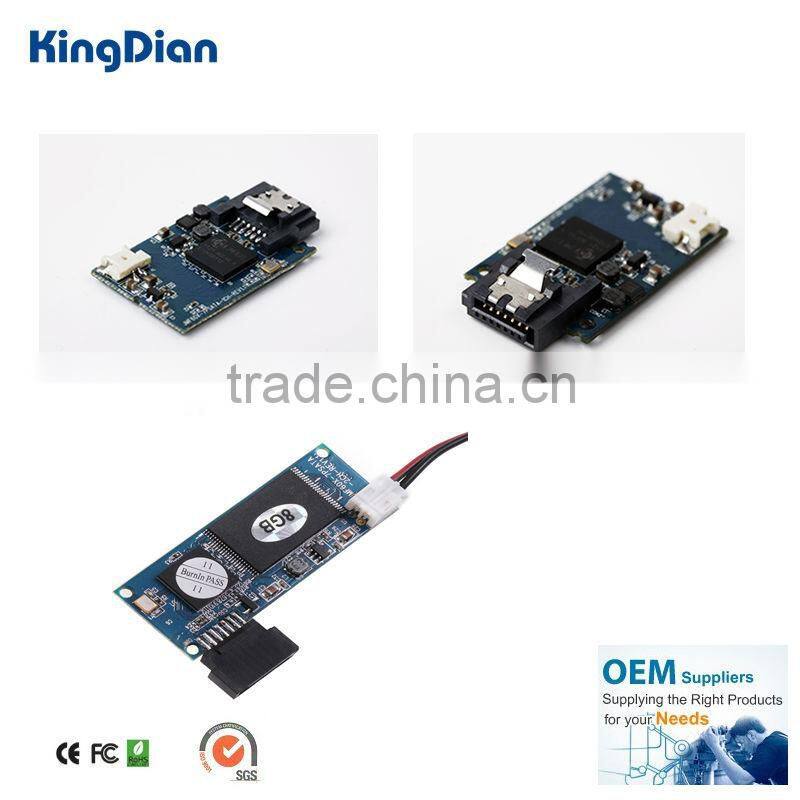

Embedded System SATA 7pin Dom 2GB

Name: Embedded System SATA 7pin Dom 2GB
Brand: KingDian
SKU: 125941499
Availability: InStock

Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Application:

Other, All PC board with SATA Interface

Type:

Internal

Shenzhen Kingdisk Century Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Application Other, All PC board with SATA Interface

Type Internal

Style SSD

SSD Capacity Other, 2GB

Size Other, 9.5 x23.5 X51mm

Interface Type SATA

Speed Other, N/A

Cache Other, N/A

Brand Name KingDian

Model Number DOM-KD-SA.2-MJ5

Place of Origin Guangdong, China

Specifications

Embeded system SATA 7pin dom 2GB
1,Max Read:51MB/s,Max Write:30MB/s
2.Capacity:1GB-32GB
3.CE,FCC,RoHS
4, 2 years warranty

Product Name : Embedded system SATA 7pin dom 2GB 2 Channles MLC Nand Flash for Thin Client,Industrial Computer,ect,computer terminal

General
Product model	DOM-KD-SA.2-MJ5
Interface	7 Pin SATA
Storage media	MLC-NAND Flash
Capacity(GB)	2GB 4GB 8GB 16GB 32GB
Performance
Max Sustained Read	46MB/s
Max Sustained write	26MB/s
4KB Sequential Read IOPS	5960
4KB Sequential Write IOPS	2419
Average Access time	0.3ms
Power Consumption
input Voltage	3.3v/5v
Work power	Max 0.75W
Standby power	Max 0.4W
Reliability& Endurance
Write endurance	8years@100GBytes write and erase per day
Read endurance	unlimited
S.M.A.R.T	Support
Wear-Leveling Algorithm	Dynamic and static wear-leveling
Data Retention	10years at 25ºC
MTBF	1,000,000hours
ECC	Supports BCH ECC 8bits or 15bits in 512 bytes
Bad Block Management	Auto Bad Block Management in system
Environment
Operating Temperature	0~70°C
Non-operating Temperature	–45~85°C
Shock	2,000G(@0.3ms half sine wave)
Vibration	20G(40-2000HZ)
Humidity	5-95%1
Physical Dimensions & Weight
Height(mm)	9.5mm
Width(mm)	23.5mm
Length(mm)	51mm
Weight(g)	10
Testing software&platform
Testing Software	HDBench3.4.0.3, IOMeter 2006.07.27
Testing Platform	AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3
