Help CenterVetical IDE DOM 40pin / 44pin Flash Disk Module 1GB~32GB
Related Products
Specifications
1.IDE DOM 40pin/44pin flash Disk module2.IDE DOM Max R/W:43/21MB/s
3.Capacity:1GB-32GB
4.CE,FCC,RoHS
5. 2-3 years warranty

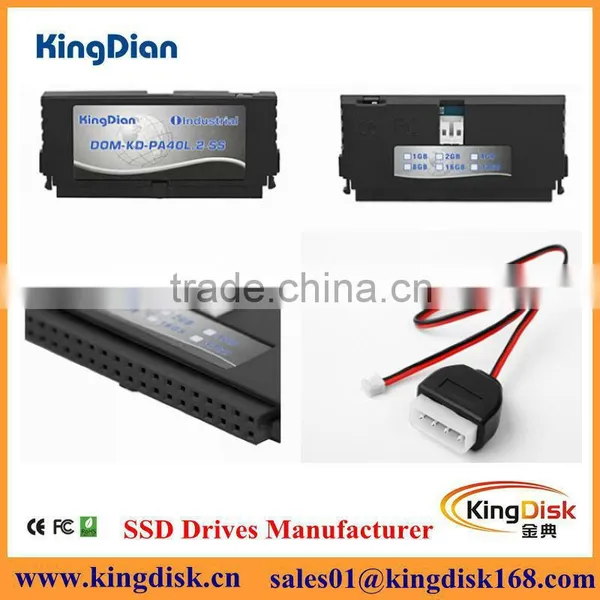

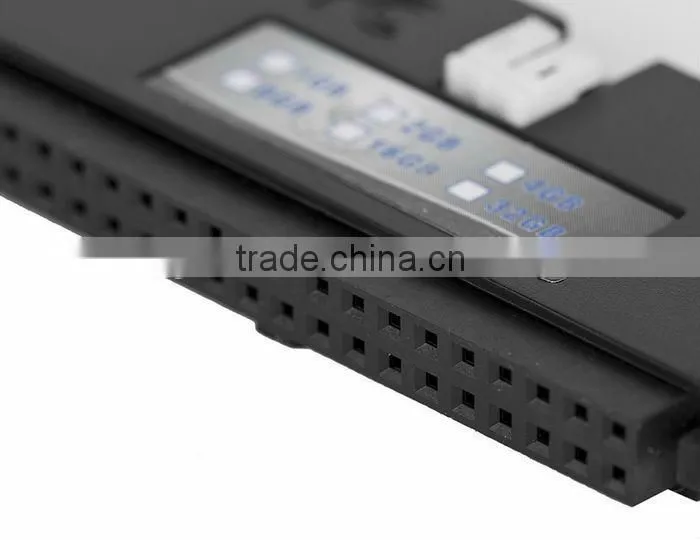

Product Name : Vetical IDE DOM 40pin / 44pin flash disk module 1GB~32GB
below is 40pin IDE DOM details information :
Performance
External Transfer Rate(Host Transfer Rate):133MB/s
Interface standard: 40PIN standard IED interface
Density:MLC:1GB,2GB,4GB,8GB,16GB,32GB;
SLC:128MB,512MB,1GB,2GB,4GB,8GB,16GB
Input voltage: 5V (±5%) or 3.3V(±5%)
Commercial operating temperature range form 0 to +70°C
Small size and don't need data line
Good shock resistant & anti-vibration performance
Upgradable: supports firmware in system programming(ISP) for firmware upgrade
FLASH Memory Support
- Supports SLC and MLC NAND flash
- 2K,4K,and 8K byte per page architecture
- 2-plane structure
ECC (Error Correction Code):Hardware BCH ECC capable of correcting up to 24 bits in a 1024 byte data
Write endurance:>8 years @100GB write/ day(32GB)
Read endurance: unlimited
Data retention: 10 years
MTBF:1,000,000 Hours
| DOM-KD-PA40L.2-MS(Double channel) | ||
| Item | Model | DOM-KD-PA40L.2-MS |
| General | Form Factor | 59.4 x 6.8 x 23.5 mm |
| Capacity(GB) | 1GB-32GB | |
| Interface | 40PIN IDE Socket | |
| Performance | Capacity(GB) | 0.3ms |
| Sustained Read | 43MB/S | |
| Sustained Write | 21MB/S | |
| 4KB Random Read IOPS | 4311 | |
| 4KB Random Write IOPS | 647 | |
| Storage Media | NAND Flash | MLC(Test Flash:2pcs K9HCG08U1M) |
| Power Consumption | input Voltage | 3.3V/5V |
| Idle | 0.0005 W | |
| Active | 0.45W | |
| Reliability& Endurance | Write endurance | 8years @100GBytes write and erase per day at 32GB |
| Read endurance | unlimited | |
| Wear-Leveling Algorithm | Dynamic and static wear-leveling | |
| Data Retention | 10years at 25ºC | |
| MTBF | 1,000,000hours | |
| ECC | Supports BCH ECC 8bits or 15bits in 512 bytes | |
| Bad Block Management | Auto Bad Block Management in system | |
| Warranty | 2years | |
| Environment | Operating Temperature | 0~70°C |
| Non-operating Temperature | -45~85°C | |
| Shock | 2,000G(@0.3ms half sine wave) | |
| Vibration | 20G(40-2000HZ) | |
| Ambient Humidity | 5-95% | |
| Available unit | Available,NO EOL | |
| Testing Platform | CPU:AMD Athlon 64×2 5200+ 2.7GHz,SDRAM:DDR2 800(PC6400) 2048 MB×1PCS, Mainboard:AMD RS780 (ATI Radeon HD 3200 Graphics) System:Microsoft Windows XP Professional SP2 | |
| Testing Software | HDBench3.4.0.3,IOMeter 2006.07.27 | |
|
Physical Dimensions & Weight |
Height(mm) | 23.5±0.1 |
| Width(mm) | 6.8±0.1 | |
| Length(mm) | 59.4±0.15 | |
| Weight(g) | 11±2 | |
| The read and write speed is limited to this test platform. | ||
