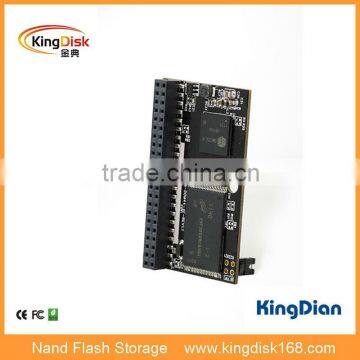

16 gb Ide 44pin Dom Flash

Name: 16 gb Ide 44pin Dom Flash
Brand: KingDian
SKU: 125940697
Availability: InStock

US$ 10 - 50 MOQ: 10 Pieces

Key Specifications

Products Status:

Stock

Application:

Other

Type:

Internal

Shenzhen Kingdisk Century Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Application Other

Type Internal

Style SSD

SSD Capacity Other, 1GB-128GB

Size Other, 6.5X33.5 X45.2mm

Interface Type IDE

Speed Other, N/A

Cache Other, N/A

Brand Name KingDian

Model Number DOM-KD-PA44W.X-XS

Place of Origin Guangdong, China

Specifications

1.16 gb ide 44pin dom flash
2.Max Read:100MB/s *Max Write:50MB/s
3.Capacity:1GB-64GB
4.CE,FCC,RoHS

General
Product model	DOM-KD-PA44W.X-SS
Interface	44PIN IDE Socket
Storage media	SLC-NAND Flash
Capacity(GB)	2GB 4GB 8GB 16GB 32GB 64GB 128GB
Performance
Max Sustained Read	100MB/s
Max Sustained write	50MB/s
4KB Sequential Read IOPS	4311
4KB Sequential Write IOPS	647
Average Access time	0.2ms
Power Consumption
input Voltage	3.3v/5v
Work power	0.45W
Standby power	0.0005W
Reliability& Endurance
Write endurance	8years@100GBytes write and erase per day
Read endurance	unlimited
S.M.A.R.T	Support
Wear-Leveling Algorithm	Dynamic and static wear-leveling
Data Retention	10years at 25ºC
MTBF	1,000,000hours
ECC	Supports BCH ECC 8bits or 15bits in 512 bytes
Bad Block Management	Auto Bad Block Management in system
Environment
Operating Temperature	0~70°C
Non-operating Temperature	–45~85°C
Shock	2,000G(@0.3ms half sine wave)
Vibration	20G(40-2000HZ)
Humidity	5-95%1
Physical Dimensions & Weight
Height(mm)	6.5mm
Width(mm)	33.5mm
Length(mm)	45.2mm
Weight(g)	10
Testing software&platform
Testing Software	HDBench3.4.0.3, IOMeter 2006.07.27
Testing Platform	AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3
