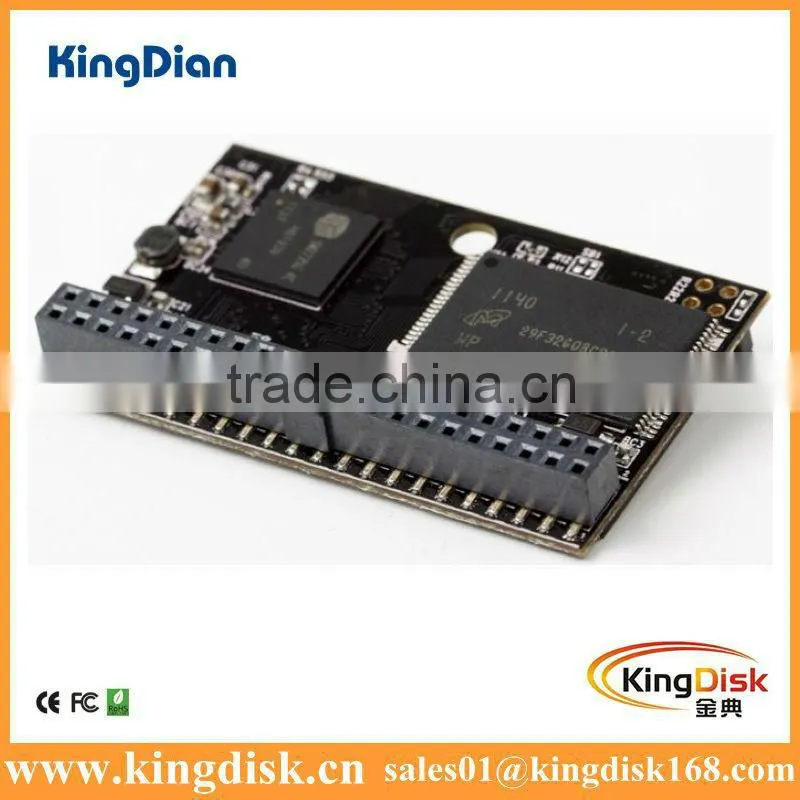

Industrial IDE DOM 44pin 8GB

Name: Industrial IDE DOM 44pin 8GB
Brand: KINGDIAN
SKU: 125940201
Availability: InStock

Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Application:

Other, Thin Client,Kiosk,Duplicator,Industrial PC,ect,Comper Terminal

Type:

Internal

Shenzhen Kingdisk Century Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Application Other, Thin Client,Kiosk,Duplicator,Industrial PC,ect,Comper Terminal

Type Internal

Style SSD

SSD Capacity 8GB

Interface Type Other, 44 pin IDE

Brand Name KINGDIAN

Model Number DOM-KD-44W.4-MS

Place of Origin Guangdong, China

Specifications

Industrial IDE DOM 44pin 8GB
Improve data security
CE,ROHS,FCC
Max R/W:43/21MB/s
2-3years warranty,ECC,RAID,NCQ,TRIM Support

Industrial IDE DOM 44pin 8GB,16GB,32GB,64GB,128GB for UMPC,Player,Thin Client,POS System,Industrial PC, ect , PC terminals !!!

Performance
External Transfer Rate(Host Transfer Rate):133MB/s
Density 8GB 8GB 16GB 32GB 64GB 128GB
Channel 2CH 4CH 4CH 4CH 4CH 4CH
Read/write speed 47/21 87/34 87/34 85/57 85/57 85/62
Form factor: 1.0-inch (45mm x28mm x 12.4mm)
Interface standard: IDE44 Pin
Input voltage: 5.0V (±5%)
Commercial operating temperature range form 0 to +70°C
Flash management algorithm: static and dynamic wear-leveling, bad block management algorithm
Supports dynamic power management and SMART (Self-Monitoring, Analysis and Reporting Technology)
ECC (Error Correction Code): BCH ECC 8bits or 15bits in 512Bytes
Write endurance: >8years @ 100GB write/ day(32GB)
Read endurance: unlimited
Data retention: 10 years
MTBF:1,000,000 Hours

What do it do?

Speed up your system with an additional memory support that can connect to your mini ITX's IDE slot.
The high capacity EDC (Embedded Disk card) memory storage is well suited for solidstate mass storage applications offering new and expanded functionality while enabling cost-effective designs.
It is designed to replace a conventional IDE hard disk drive, and can be plugged into a standard IDE connector commonly found in desktop or portable PC systems.
