SATA Flash Dom 2gb Mlc/slc

Specifications

1.SATA flash dom 2gb mlc/slc
2.Max R/W: 51/30MB/s
3.Embedded SATA Flash DOM
4.CE,FCC,RoHS approved
5. 2-3 years warranty

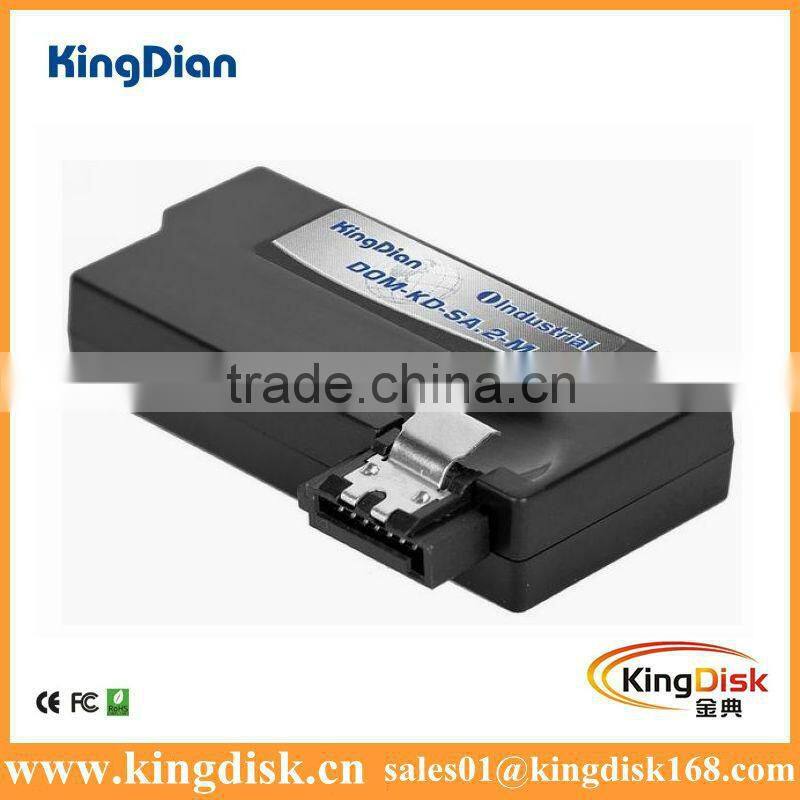

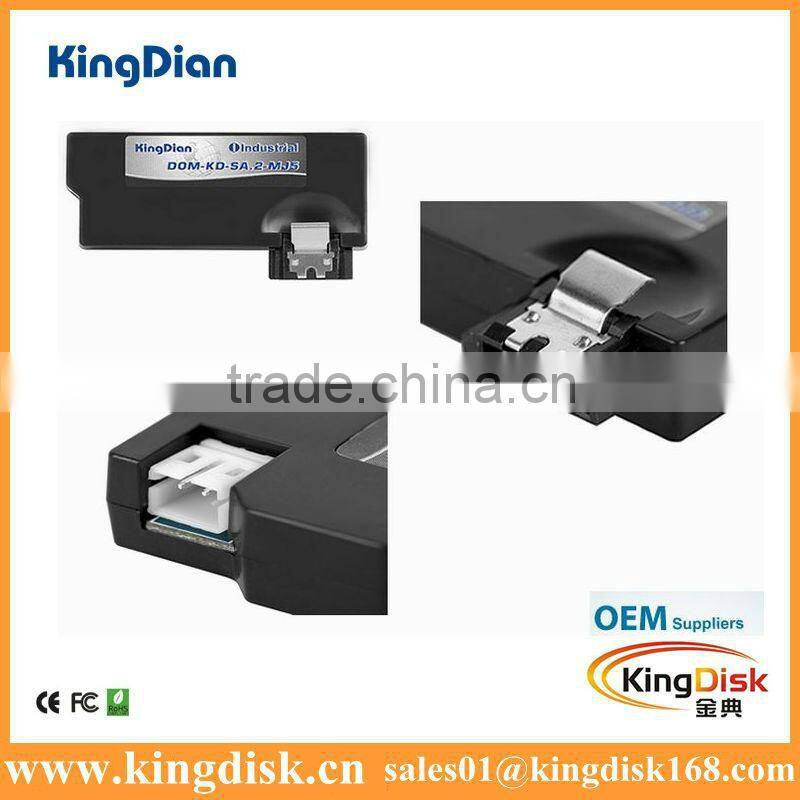

Product Name :   Embedded SATA flash dom 2gb mlc/slc (7pin)



Performance Details :
SATA: External Transfer Rate(Host Transfer Rate):300MB/s
Form factor: 50.6mm x 23.4mm x 9.5mm
Interface standard: Serial ATA Revision 2.6
Density: 2GB,4GB,8GB,16GB,32GB
Input voltage: 5V (±5%)
Commercial operating temperature range form 0 to +70°C
Flash management algorithm: static and dynamic wear-leveling, bad block management algorithm
Supports dynamic power management  and SMART (Self-Monitoring, Analysis and Reporting Technology)
ECC (Error Correction Code): BCH  ECC 8bits or 15bits in 512Bytes
Write endurance: >6 years @ 1GB write/ day(MLC)
                   >20 years @ 1GB write/ day(SLC)
Read endurance: unlimited
Data retention: 10 years
MTBF:1,000,000 Hours





General
Product model	DOM-KD-SA.2-MJ5
Interface	7PIN SATA
Storage media	MLC-NAND Flash
Capacity(GB)	2GB 4GB 8GB 16GB 32GB
Performance
Max Sustained Read	46MB/s
Max Sustained write	26MB/s
4KB Sequential Read IOPS	5960
4KB Sequential Write IOPS	2419
Average Access time	0.3ms
Power Consumption
input Voltage	3.3v/5v
Work power	Max 0.75W
Standby power	Max 0.4W
Reliability& Endurance
Write endurance	8years@100GBytes write and erase per day
Read endurance	unlimited
S.M.A.R.T	Support
Wear-Leveling Algorithm	Dynamic and static wear-leveling
Data Retention	10years at 25ºC
MTBF	1,000,000hours
ECC	Supports BCH ECC 8bits or 15bits in 512 bytes
Bad Block Management	Auto Bad Block Management in system
Environment
Operating Temperature	0~70°C
Non-operating Temperature	–45~85°C
Shock	2,000G(@0.3ms half sine wave)
Vibration	20G(40-2000HZ)
Humidity	5-95%1
Physical Dimensions & Weight
Height(mm)	9.5mm
Width(mm)	23.5mm
Length(mm)	51mm
Weight(g)	10
Testing software&platform
Testing Software	HDBench3.4.0.3, IOMeter 2006.07.27
Testing Platform	AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3
