Specifications
9 pin DOM flash module 4GBSample ok
Factory Price,Capacity:1GB~32GB
Transfer Rate:60MB/s
ECC,NCQ,TRIM,RAID Support

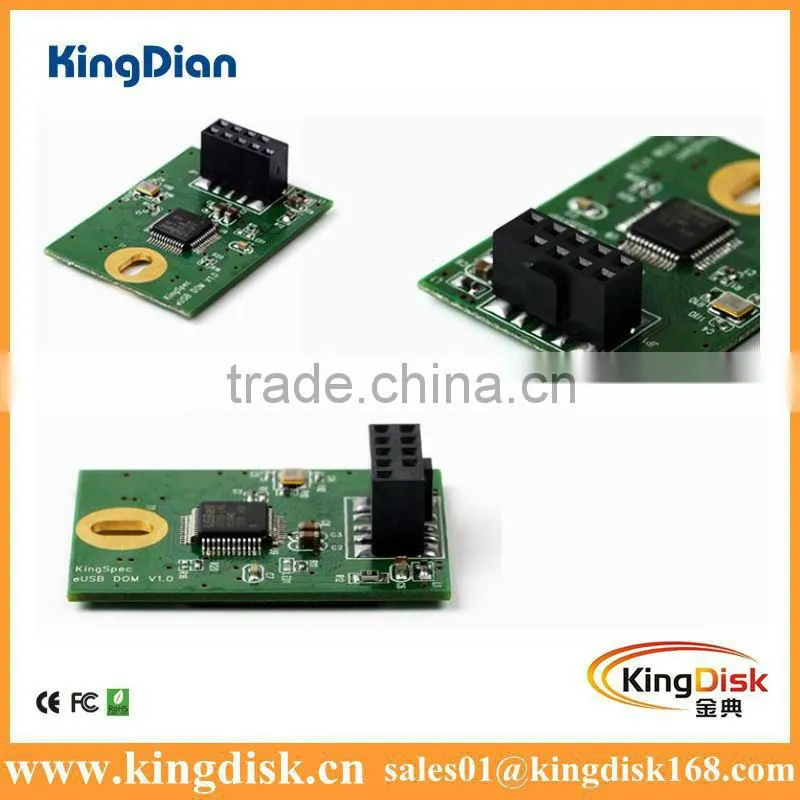

Product Name: 9 pin DOM flash module 4GB for Embedded System !!!
KingDian high speed Disk On Module adopt UT165 controller which is one of the newest and steadist USB Drive controller,and made up of high performance NAND FLASH .
KingDian DOM's are highly reliable as they do not have any moving parts like regular hard
disks and are small in size and light in weight.
KingDian DOM give rugged features against
shock and vibration use in extreme environment, such as Widely used in industrial control,
public safety, telecommunications, military, aviation field of high-reliability data.
Currently KingDian DOM storage capacities range from 128MB to 32GB. With Various form factor including Vertical or Horizontal Orientation.The DOM works the same way as a Solid State Drive but it is generally plugged directly to the motherboard.
DOM Series: Disk On Module, is a high-performance, embedded flash drive designed to replace the traditional IDE mechanical hard drives. It is mainly used in some old motherboards, to enhance the performance of the equipment. It is characterized by the relatively small size, safe and reliable. DOM has a small control chip firmware, transfer data by standard interface of IDE, SATA, USB, no need additional host software.
DOM work at the voltage of 5V, it provided the scalability new features, such as more cost-effective designs, better performance, improved reliability, making it ideal for the field of embedded memory. PATA DOM supports the standard ATA / IDE, up to PIO Mode-4, Multiword DMA Mode 2 and Ultra DMA Mode-6, compatible with all the major operating systems on the market, such as the Microsoft Windows series, Mac OS, and Unix versions.
Performance
Model: DOM-KD-USB-MU
Capacity Ranges: 1GB-32GB
Transfer Rate : 60MB/S
External Transfer Rate(Host Transfer Rate):60MB/s
Sequential Data Read/Write: 27/15 MB/s;
Form factor:37mm x 26.6mm x 9.68mm
Interface standard: Universal Serial Bus Specification Revision 2.0
Density: 1GB(1CH),2GB,4GB,8GB,16GB.
Input voltage: 5V (±5%)
Commercial operating temperature range form 0 to +70°C
Flash management algorithm: static and dynamic wear-leveling, bad block management algorithm
Support interleave mode to accelerate read/write performance
ECC (Error Correction Code): 8-bit/512Bytes and 14-bit/512Bytes BCH
Write endurance: >80 years @ 100GB write/ day(32GB)
Read endurance: unlimited
Data retention: 10 years
MTBF:1,000,000 Hours
For any interests & further details please contact me freely . Thanks for your share time !
