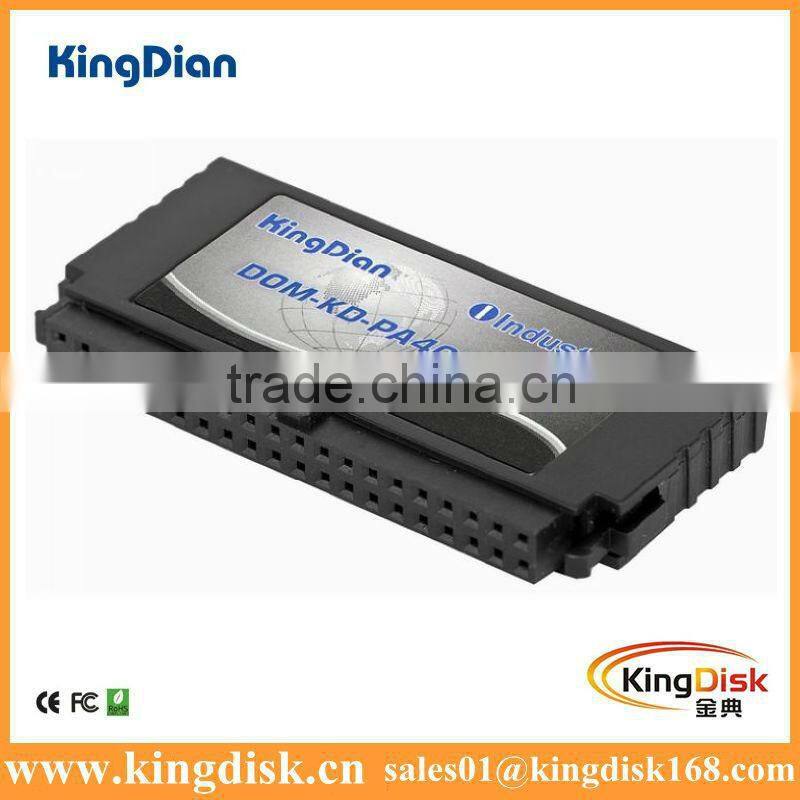

Industrial 40 Pin PATA Flash DOM 8gb for Embedded System

Specifications

40 pin pata flash DOM 1gb-32gb
pata flash DOM Max R/W:43/21MB/s
Capacity:1GB-32GB
CE,FCC,RoHS approved
2-3 year warranty

Name : Industrial 40 pin PATA flash DOM 8gb for embedded system





Performance:
External Transfer Rate(Host Transfer Rate):133MB/s
Interface standard: 40PIN standard IED interface
Density:MLC:1GB,2GB,4GB,8GB,16GB,32GB;
           SLC:128MB,512MB,1GB,2GB,4GB,8GB,16GB
Input voltage: 5V (±5%) or 3.3V(±5%)
Commercial operating temperature range form 0 to +70°C
Small size and don't need data line
Good shock resistant & anti-vibration performance
Upgradable: supports firmware in system programming(ISP) for firmware upgrade
FLASH Memory Support
      - Supports SLC and MLC NAND flash
      - 2K,4K,and 8K byte per page architecture
      - 2-plane structure
ECC (Error Correction Code):Hardware BCH ECC capable of correcting up to 24 bits in a 1024 byte data
Write endurance:>8 years @100GB write/ day(32GB)
Read endurance: unlimited
Data retention: 10 years
MTBF:1,000,000 Hours





General
Product model	DOM-KD-PA40L.1-MS/ DOM-KD-PA40L.2-MS
Interface	40PIN IDE Socket
Storage media	MLC-NAND Flash
Capacity(GB)	1GB 2GB 4GB 8GB 16GB
Performance
Max Sustained Read	43MB/s
Max Sustained write	21MB/s
4KB Sequential Read IOPS	4311
4KB Sequential Write IOPS	647
Average Access time	0.3ms
Power Consumption
input Voltage	3.3v/5v
Work power	0.45W
Standby power	0.0005W
Reliability& Endurance
Write endurance	8years@100GBytes write and erase per day
Read endurance	unlimited
S.M.A.R.T	Support
Wear-Leveling Algorithm	Dynamic and static wear-leveling
Data Retention	10years at 25ºC
MTBF	1,000,000hours
ECC	Supports BCH ECC 8bits or 15bits in 512 bytes
Bad Block Management	Auto Bad Block Management in system
Environment
Operating Temperature	0~70°C
Non-operating Temperature	–45~85°C
Shock	2,000G(@0.3ms half sine wave)
Vibration	20G(40-2000HZ)
Humidity	5-95%1
Physical Dimensions & Weight
Height(mm)	23.5mm
Width(mm)	6.8mm
Length(mm)	60mm
Weight(g)	11
Testing software&platform
Testing Software	HDBench3.4.0.3, IOMeter 2006.07.27
Testing Platform	AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3



What do it do?



• Speed up your system with an additional memory support that can connect to your mini ITX's IDE slot.
• The high capacity EDC (Embedded Disk card) memory storage is well suited for solidstate mass storage applications offering new and expanded functionality while enabling cost-effective designs.
• It is designed to replace a conventional IDE hard disk drive, and can be plugged into a standard IDE connector commonly found in desktop or portable PC systems.



Advantages:



• High speed for storages
• High Durability
• High endurance,Shock-proof
• Free Noise
• Light weight,Portable
• High Reliability
• Long lifetime
• Wide operating temperature:0-75'C
• Small volume,Nio MOQ
• Write protection,anti-virus
• Lower Power Consumption



Features:



• High performance and high stability data storage devices
• Extremely light weight
• Reliable & performant
• shock proof, moisture proof
• shock resistance and anti jamming
• data security solution
• Nand flash memory storage medium
• CE,FCC ,ROHS,SGS.
• write protection,notch battom



Applications:



• Automobile facilities
• Medical equipments
• Military/aerospace facilities
• Notebook and UMPC,desktop.
• Gaming and Multimedia pc
• Embedded/industrial equipments and instruments
• Mobile internet devices (mid) such as pmps,pdas and smartphones
• Enterprise computing, communications equipment/networking facilities



If you're interested in our products or for any enquiries of our items,pls freely contact me.
