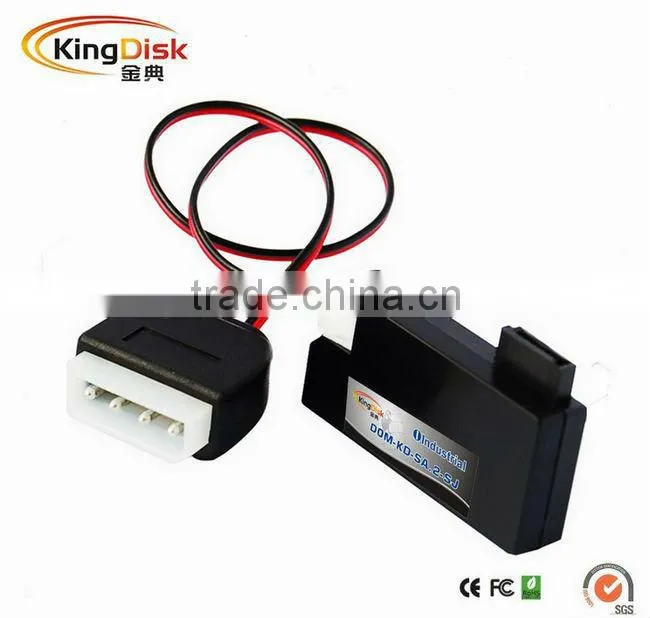

Industrial MLC/SLC Flash 7 Pin SATA DOM (1GB~64GB) 2Channels for ATM,Thin Client,Kiosk,Industrial Computer & PC Terminal,ect.
Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Other, All PC board with SATA
Type:
Internal
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vertical 7 Pin SSD 32gb SATA DOM for Industrial Emedded SystemNegotiableMOQ: 5 Pieces -
Vertical 7 Pin SSD 16gb SATA DOM for Industrial Emedded SystemNegotiableMOQ: 5 Pieces
-
Vertical 7 Pin SATA Flash 8gb DOM for Industrial Emedded SystemNegotiableMOQ: 5 Pieces
-
Vertical 7 Pin SATA Nand Flash DOM 16gbNegotiableMOQ: 5 Pieces
-
Vertical 7 Pin SATA Flash DOM 4gbNegotiableMOQ: 5 Pieces
Products Status
Stock
Application
Other, All PC board with SATA
Type
Internal
Style
SSD
SSD Capacity
Other, 1GB-64GB
Size
Other, 9.5 x23.5 X51mm, 9.5 x23.5 X51mm
Interface Type
SATA
Brand Name
KingDian
Model Number
DOM-KD-SA.2-XJ5
Place of Origin
Guangdong, China
Specifications
MLC/SLC SATA DOM Flash module7 pin SATA DOM : 3Gb/s
Density:1GB-64GB
3 years warranty;ECC,RAID,TRIM
CE,FCC,RHoS certificate

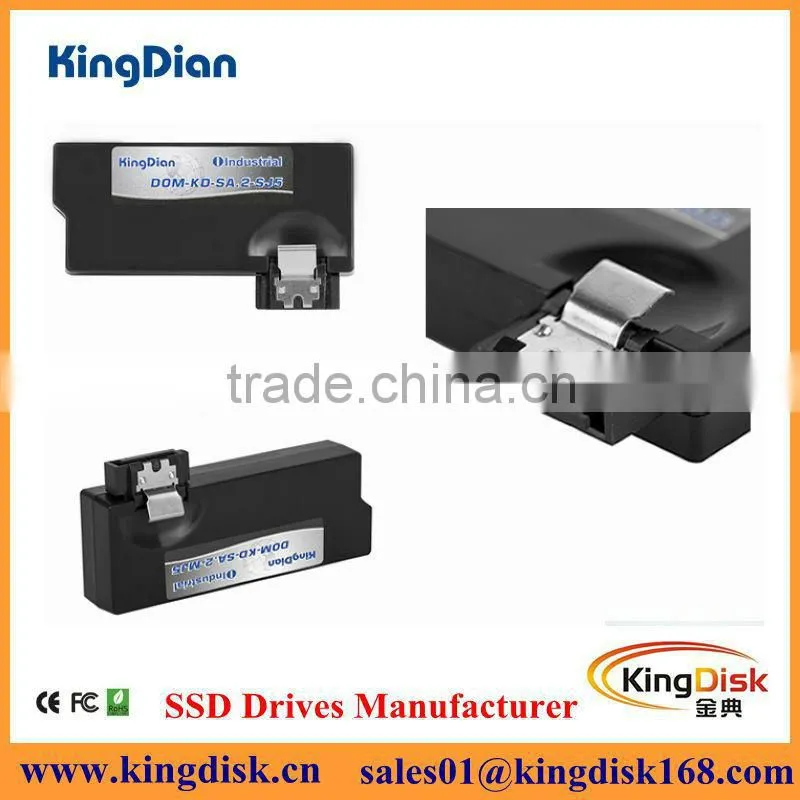

Product Name : DOM-KD-SA.2-SJ5 , Industrial MLC/SLC Flash 7 pin SATA DOM (1GB~64GB) 2Channels for ATM,Thin Client,Kiosk,Industrial Computer & PC Terminal,ect.
Performance of SATA DOM Flash Module :
SATA: External Transfer Rate(Host Transfer Rate):300MB/s
Form factor: 50.6mm x 23.4mm x 9.5mm
Interface standard: Serial ATA Revision 2.6
Density: 2GB,4GB,8GB,16GB,32GB,64GB
Input voltage: 5V (±5%)
Commercial operating temperature range form 0 to +70°C
Flash management algorithm: static and dynamic wear-leveling, bad block management algorithm
Supports dynamic power management and SMART (Self-Monitoring, Analysis and Reporting Technology)
ECC (Error Correction Code): BCH ECC 8bits or 15bits in 512Bytes
Write endurance: >6 years @ 1GB write/ day(MLC)
>20 years @ 1GB write/ day(SLC)
Read endurance: unlimited
Data retention: 10 years
MTBF:1,000,000 Hours
| DOM-KD-SA.2-SJ5 | ||||||
| Item | Model | DOM-KD-SA.2-SJ5 | ||||
| General | interface | 7PIN SATA | ||||
| Performance | Capacity(GB) | 2GB | 4GB | 8G ... | ||
| Sustained Read | 37MB/S | 42MB/S | 51MB/S ... | |||
| Sustained Write | 18MB/S | 26MB/S | 30MB/S ... | |||
| 4KB Sequential Read IOPS | 7179 | |||||
| 4KB Sequential Write IOPS | 5800 | |||||
| Average Access time | 0.3ms | |||||
| Storage Media | NAND Flash | SLC(JS29F64G08FAMC1×2PCS) | ||||
| Power Consumption | input Voltage | 5V± 5% | ||||
| Idle | 0.4W | |||||
| Active | 0.75W | |||||
| Reliability& Endurance | Write endurance | 8years @100GBytes write and erase per day at 32GB | ||||
| Read endurance | unlimited | |||||
| Wear-Leveling Algorithm | Dynamic and static wear-leveling | |||||
| Data Retention | 10years at 25ºC | |||||
| MTBF | 1,000,000hours | |||||
| ECC | Supports BCH ECC 8bits or 15bits in 512 bytes | |||||
| Bad Block Management | Auto Bad Block Management in system | |||||
| Environment | Operating Temperature | 0~70ºC | ||||
| Non-operating Temperature | -40~85ºC | |||||
| Shock | 2,000G(@0.3ms half sine wave) | |||||
| Vibration | 20G(40-2000HZ) | |||||
| Humidity | 5-95% | |||||
| Warranty | 2years | |||||
| Available unit | Available,NO EOL | |||||
| Testing Platform | Intel Pentium E5200 2.5GHz,DDR2 800 2GB×1pcs,G41+IHR7 chipset,Microsoft Windows XP Professional SP2 | |||||
| Testing Software | HDBench3.4.0.3, IOMeter 2006.07.27 | |||||
|
Physical Dimensions & Weight |
Height(mm) | 9.5± 0.25 | ||||
| Width(mm) | 24.3± 0.25 | |||||
| Length(mm) | 50.6± 0.25 | |||||
| Weight(g) | 10 | |||||
| *** The read and write speed is limited to this test platform. | ||||||
