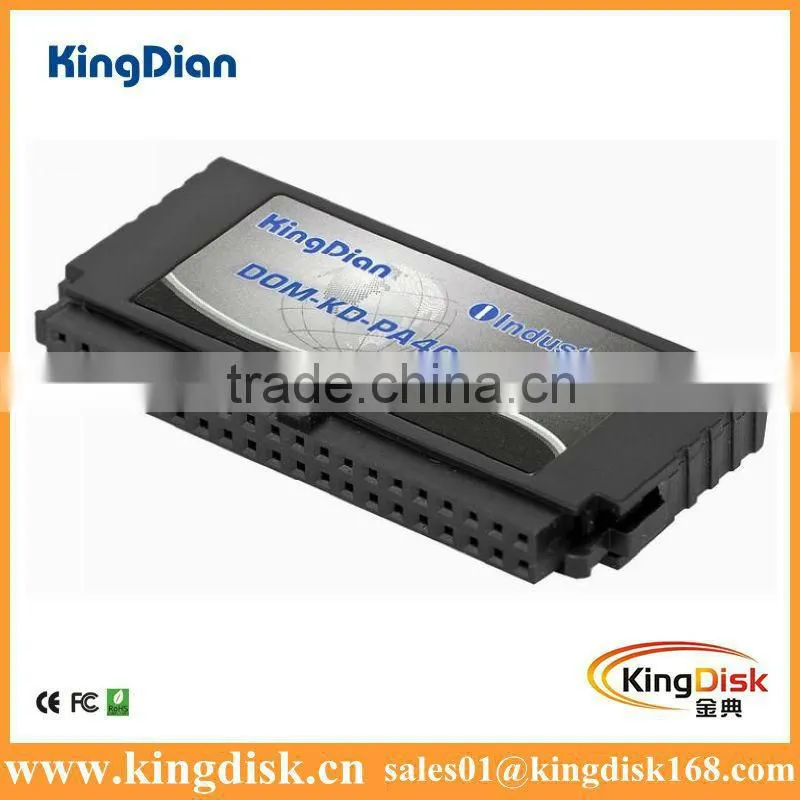

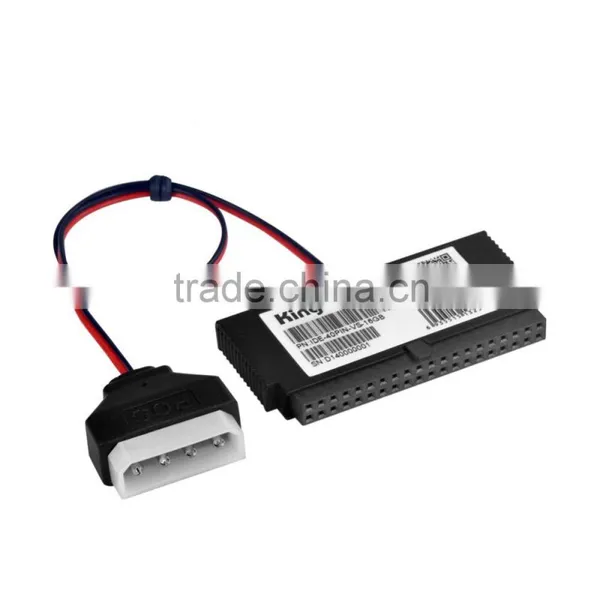

KingDian IDE 40PIN Vertical DOM Ssd Solution 64GB Vertical Disk on Module External Hard Drive
US$ 15.33 - 38.54
MOQ: 5 Units
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Other, Embedded system,Industrial PC,PC Terminal,ect
Type:
Internal
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KingDian SSD Industrial Horizonta DOM Disk on Module 64gb IDE Ssd Solution for ComputerUS$ 35.99 - 39.99MOQ: 10 Pieces -
KingDian Industrial Horizonta DOM Ssd Drives Disk on Module 64gb IDE for PCUS$ 35.99 - 39.99MOQ: 10 Pieces
-
KingDian SSD Solution Industrial Horizonta DOM Disk on Module 32gb IDE for Desktop/LaptopUS$ 26.99 - 29.99MOQ: 10 Pieces
-
KingDian SSD Drives Industrial Horizonta DOM Disk on Module 32gb IDE for Desktop/LaptopUS$ 26.99 - 29.99MOQ: 10 Pieces
-
Factory Sell KingDian 44PIN PATA IDE DOM Disk On Module Male Horizontal+Socket MLC 4-Channel DOM 4GB 8GB 16GB 32GB 64GB 128GBUS$ 15.33 - 15.33MOQ: 5 Units
Products Status
Stock
Application
Other, Embedded system,Industrial PC,PC Terminal,ect
Type
Internal
Style
SSD
SSD Capacity
Other, 1GB ~32GB
Interface Type
Other, IDE 40 pin
Speed
Other, N/A
Cache
Other, N/A
Brand Name
KingDisk
Model Number
DOM-KD-PA40L.2-MS
Place of Origin
Guangdong, China
KingDian 4GB,8GB,16GB,32GB,64GB Industrial 40pin IDE PATA DOM Vertical external hard disk
Performance:
External Transfer Rate(Host Transfer Rate):133MB/s
Interface standard: 40PIN standard IED interface
Density:MLC:1GB,2GB,4GB,8GB,16GB,32GB;
SLC:128MB,512MB,1GB,2GB,4GB,8GB,16GB
Input voltage: 5V (±5%) or 3.3V(±5%)
Commercial operating temperature range form 0 to +70°C
Small size and don't need data line
Good shock resistant & anti-vibration performance
Upgradable: supports firmware in system programming(ISP) for firmware upgrade
FLASH Memory Support
- Supports SLC and MLC NAND flash
- 2K,4K,and 8K byte per page architecture
- 2-plane structure
ECC (Error Correction Code):Hardware BCH ECC capable of correcting up to 24 bits in a 1024 byte data
Write endurance:>8 years @100GB write/ day(32GB)
Read endurance: unlimited
Data retention: 10 years
MTBF:1,000,000 Hours
| General | |
| Product model | DOM-KD-PA40L.1-MS/ DOM-KD-PA40L.2-MS |
| Interface | 40PIN IDE Socket |
| Storage media | MLC-NAND Flash |
| Capacity(GB) | 1GB 2GB 4GB 8GB 16GB |
| Performance | |
| Max Sustained Read | 43MB/s |
| Max Sustained write | 21MB/s |
| 4KB Sequential Read IOPS | 4311 |
| 4KB Sequential Write IOPS | 647 |
| Average Access time | 0.3ms |
| Power Consumption | |
| input Voltage | 3.3v/5v |
| Work power | 0.45W |
| Standby power | 0.0005W |
| Reliability& Endurance | |
| Write endurance | 8years@100GBytes write and erase per day |
| Read endurance | unlimited |
| S.M.A.R.T | Support |
| Wear-Leveling Algorithm | Dynamic and static wear-leveling |
| Data Retention | 10years at 25ºC |
| MTBF | 1,000,000hours |
| ECC | Supports BCH ECC 8bits or 15bits in 512 bytes |
| Bad Block Management | Auto Bad Block Management in system |
| Environment | |
| Operating Temperature | 0~70°C |
| Non-operating Temperature | –45~85°C |
| Shock | 2,000G(@0.3ms half sine wave) |
| Vibration | 20G(40-2000HZ) |
| Humidity | 5-95%1 |
| Physical Dimensions & Weight | |
| Height(mm) | 23.5mm |
| Width(mm) | 6.8mm |
| Length(mm) | 60mm |
| Weight(g) | 11 |
| Testing software&platform | |
| Testing Software | HDBench3.4.0.3, IOMeter 2006.07.27 |
| Testing Platform | AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3 |
What do it do?
- Speed up your system with an additional memory support that can connect to your mini ITX's IDE slot.
- The high capacity EDC (Embedded Disk card) memory storage is well suited for solidstate mass storage applications offering new and expanded functionality while enabling cost-effective designs.
- It is designed to replace a conventional IDE hard disk drive, and can be plugged into a standard IDE connector commonly found in desktop or portable PC systems.
Advantages:
- High speed for storages
- High Durability
- High endurance,Shock-proof
- Free Noise
- Light weight,Portable
- High Reliability
- Long lifetime
- Wide operating temperature:0-75'C
- Small volume,Nio MOQ
- Write protection,anti-virus
- Lower Power Consumption
Features:
- High performance and high stability data storage devices
- Extremely light weight
- Reliable & performant
- shock proof, moisture proof
- shock resistance and anti jamming
- data security solution
- Nand flash memory storage medium
- CE,FCC ,ROHS,SGS.
- write protection,notch battom
Applications:
- Automobile facilities
- Medical equipments
- Military/aerospace facilities
- Notebook and UMPC,desktop.
- Gaming and Multimedia pc
- Embedded/industrial equipments and instruments
- Mobile internet devices (mid) such as pmps,pdas and smartphones
- Enterprise computing, communications equipment/networking facilities
If you're interested in our products or for any enquiries of our items,pls freely contact me.
