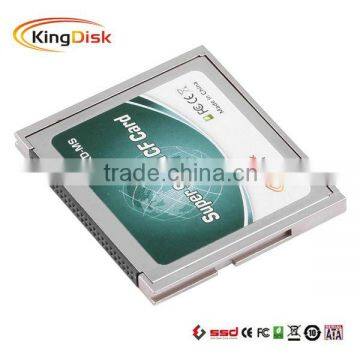

CF (IDE 50pin) SSD, 600X ,speed up to 90MB/s
Negotiable
/ Piece
1 Piece(Min.Order)
- 50000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
-
KingDian OEM DOM module 16GB IDE 40PIN-VS-16GB ssd FOR Pos machine/Industrial equipment
-
KingDian 40PIN 8GB 16GB 32GB disk on key for 40pin disk on module ide dom
-
KingDian IDE PATA DOM MLC 40PIN 32GB Industrial Disk On Module Solid State Drives Vertical+Socket SSD
-
KingDian IDE 40PIN Vertical DOM ssd solution 64GB Vertical Disk on Module External Hard Drive
-
KingDian SSD Industrial Horizonta DOM Disk on Module 64gb IDE ssd solution for computer
-
KingDian Industrial Horizonta DOM ssd drives Disk on Module 64gb IDE for PC
Product Details
Products Status | Stock | Capacity | 4gb-64gb | |
Brand Name | kingdian | Model Number | CF-KD-MS | |
Place of Origin | Guangdong, China |
Product Description
Specifications
1.CF card2.UDMA 6 Mode
3.600X ,speed up to 90MB/s
4.with 2-3 years warranty
CF card
UDMA 6
600X ,speed up to 90MB/s
Compact Flash Specification Version 4.1 Compliant
Shock resistant & anti-vibration
No seek error and noiseless
Support UDMA6
Operating Modes:
--PC Card Memory Mode
--PC Card I/ O Mode
--True-IDE Mode
General | |
Product model | CF-KD-MS |
Interface | 50PIN CF Socket |
Storage media | MLC-NAND Flash |
Capacity(GB) | 4GB 8GB 16GB 32GB 64GB |
Performance | |
Max Sustained Read | 85MB/s |
Max Sustained write | 42MB/s |
Power Consumption | |
input Voltage | 3.3v±5% |
Work power | 1.35W |
Standby power | 0.4W |
Reliability& Endurance | |
Write endurance | 8years@100GBytes write and erase per day |
Read endurance | unlimited |
S.M.A.R.T | Support |
Wear-Leveling Algorithm | Dynamic and static wear-leveling |
Data Retention | 10years at 25ºC |
MTBF | 1,000,000hours |
ECC | Supports BCH ECC 8bits or 15bits in 512 bytes |
Bad Block Management | Auto Bad Block Management in system |
Environment | |
Operating Temperature | 0~70°C |
Non-operating Temperature | –45~85°C |
Shock | 2,000G(@0.3ms half sine wave) |
Vibration | 20G(40-2000HZ) |
Humidity | 5-95%1 |
Physical Dimensions & Weight | |
Height(mm) | 3.3mm |
Width(mm) | 43mm |
Length(mm) | 36mm |
Weight(g) | 12 |
Testing software&platform | |
Testing Software | HDBench3.4.0.3, IOMeter 2006.07.27 |
Testing Platform | AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3 |
