Specifications

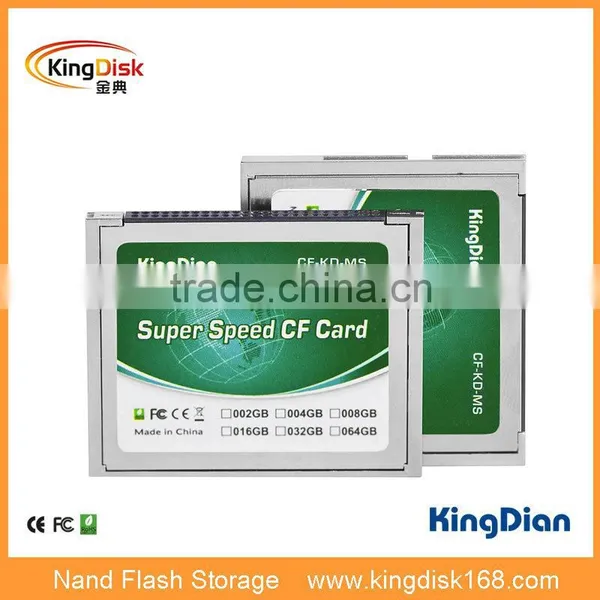

1.Compact Flash disk 128GB 900X2.UDMA 6 600X Speed up to 90MB/s
3.Capacity:4GB-64GB
4.CE,FCC,RoHS
5.With 2 years warranty
| General | |
| Product model | CF-KD-MS |
| Interface | 50PIN CF Socket |
| Storage media | MLC-NAND Flash |
| Capacity(GB) | 4GB 8GB 16GB 32GB 64GB |
| Performance | |
| Max Sustained Read | 90MB/s |
| Max Sustained write | 42MB/s |
| Power Consumption | |
| input Voltage | 3.3v±5% |
| Work power | 1.35W |
| Standby power | 0.4W |
| Reliability& Endurance | |
| Write endurance | 8years@100GBytes write and erase per day |
| Read endurance | unlimited |
| S.M.A.R.T | Support |
| Wear-Leveling Algorithm | Dynamic and static wear-leveling |
| Data Retention | 10years at 25ºC |
| MTBF | 1,000,000hours |
| ECC | Supports BCH ECC 8bits or 15bits in 512 bytes |
| Bad Block Management | Auto Bad Block Management in system |
| Environment | |
| Operating Temperature | 0~70°C |
| Non-operating Temperature | –45~85°C |
| Shock | 2,000G(@0.3ms half sine wave) |
| Vibration | 20G(40-2000HZ) |
| Humidity | 5-95%1 |
| Physical Dimensions & Weight | |
| Height(mm) | 3.3mm |
| Width(mm) | 43mm |
| Length(mm) | 36mm |
| Weight(g) | 12 |
| Testing software&platform | |
| Testing Software | HDBench3.4.0.3, IOMeter 2006.07.27 |
| Testing Platform | AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3 |
