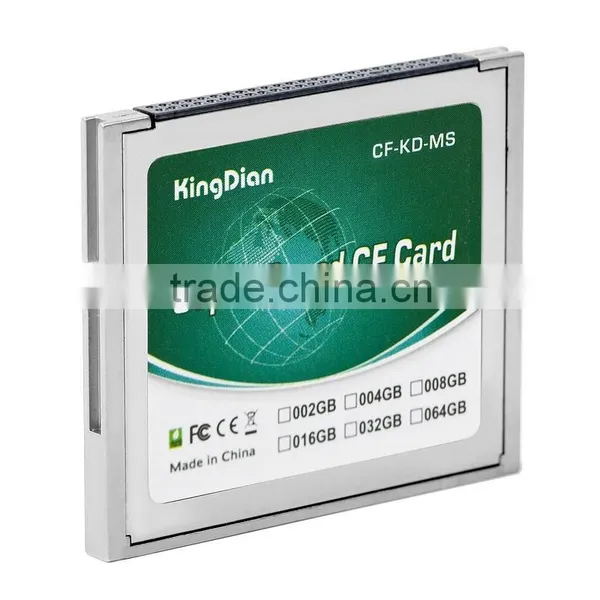

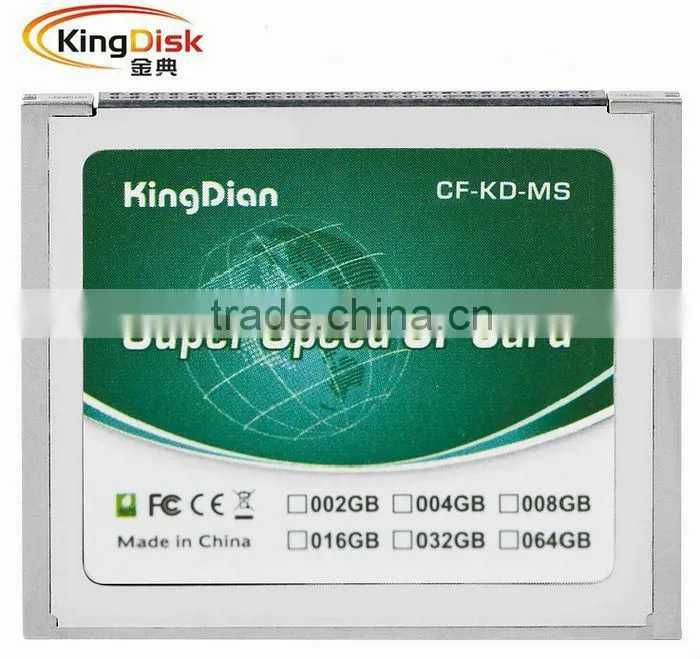

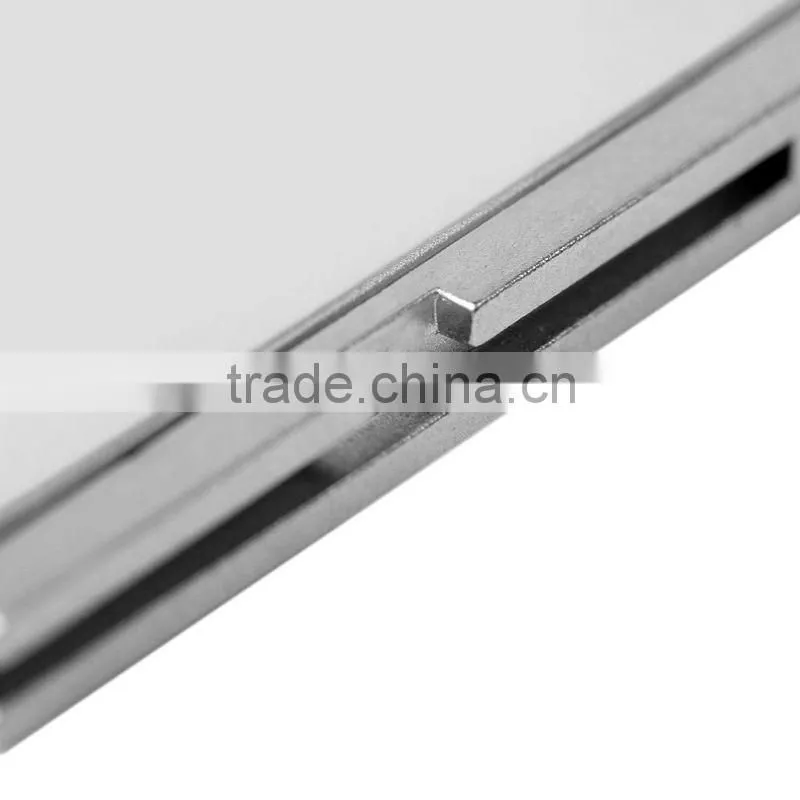

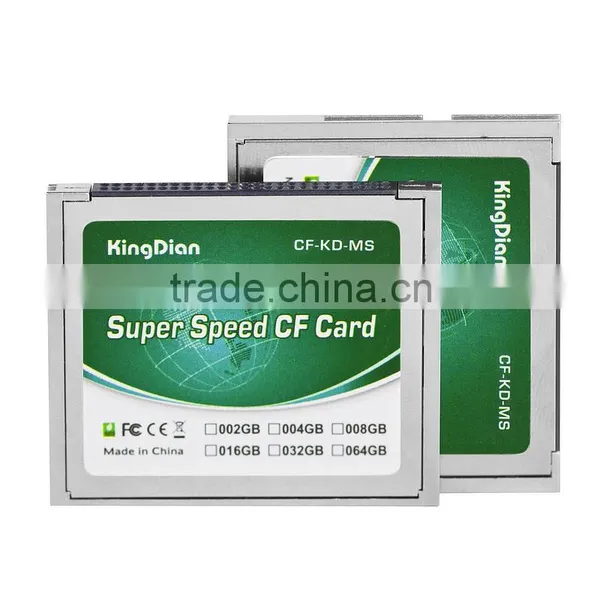

2 years warranty KingDian Compact flash card SSD 600X 4GB,8GB,16GB,32GB,64GB
General | |
Product model |
CF-KD-MS |
Interface |
50PIN CF Socket |
Storage media |
MLC-NAND Flash |
Capacity(GB) |
4GB 8GB 16GB 32GB 64GB |
Performance | |
Max Sustained Read |
90MB/s |
Max Sustained write |
45MB/s |
Power Consumption | |
input Voltage |
3.3v±5% |
Work power |
1.35W |
Standby power |
0.4W |
Reliability& Endurance | |
Write endurance |
8years@100GBytes write and erase per day |
Read endurance |
unlimited |
S.M.A.R.T |
Support |
Wear-Leveling Algorithm |
Dynamic and static wear-leveling |
Data Retention |
10years at 25ºC |
MTBF |
1,000,000hours |
ECC |
Supports BCH ECC 8bits or 15bits in 512 bytes |
Bad Block Management |
Auto Bad Block Management in system |
Environment | |
Operating Temperature |
0~70°C |
Non-operating Temperature |
–45~85°C |
Shock |
2,000G(@0.3ms half sine wave) |
Vibration |
20G(40-2000HZ) |
Humidity |
5-95%1 |
Physical Dimensions |
|
Height(mm) |
3.3mm |
Width(mm) |
43mm |
Length(mm) |
36mm |
Weight(g) |
12 |
Testing software&platform | |
Testing Software |
HDBench3.4.0.3, IOMeter 2006.07.27 |
Testing Platform |
AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3 |
What do it do?
- Speed up your system with an additional memory support that can connect to your mini ITX's IDE slot.
- The high capacity EDC (Embedded Disk card) memory storage is well suited for solidstate mass storage applications offering new and expanded functionality while enabling cost-effective designs.
- It is designed to replace a conventional IDE hard disk drive, and can be plugged into a standard IDE connector commonly found in desktop or portable PC systems.
Advantages:
- High speed for storages
- High Durability
- High endurance,Shock-proof
- Free Noise
- Light weight,Portable
- High Reliability
- Long lifetime
- Wide operating temperature:0-75'C
- Small volume,Nio MOQ
- Write protection,anti-virus
- Lower Power Consumption
Features:
- High performance and high stability data storage devices
- Extremely light weight
- Reliable & performant
- shock proof, moisture proof
- shock resistance and anti jamming
- data security solution
- Nand flash memory storage medium
- CE,FCC ,ROHS,SGS.
- write protection,notch battom
Applications:
- Automobile facilities
- Medical equipments
- Military/aerospace facilities
- Notebook and UMPC,desktop.
- Gaming and Multimedia pc
- Embedded/industrial equipments and instruments
- Mobile internet devices (mid) such as pmps,pdas and smartphones
- Enterprise computing, communications equipment/networking facilities
If you're interested in our products or for any enquiries of our items,pls freely contact me.
