Good performance cnc metal spinning machine JPM0609

All cnc router are packed with standard inner plastic wrap and outer plywood case, inner package would be help to tight all the small parts in the package. And the plywood is firm enough to protect the laser machine during shipping.

Good performance cnc metal spinning machine JPM0609

Standard configuration

#1.5kw water cooling spindle

#Nc-studio controller

#Leadshine stepper motors and drivers

#Fuling inverter

#XYZ by Taiwan TBI ball screw

#Iron cast steel body

#T-slot Table

#Soft limit switch

#Tool Sensor, Filter, Cast steel moter Box

#Taiwan Imported Best bearing holder

#Standard tool box

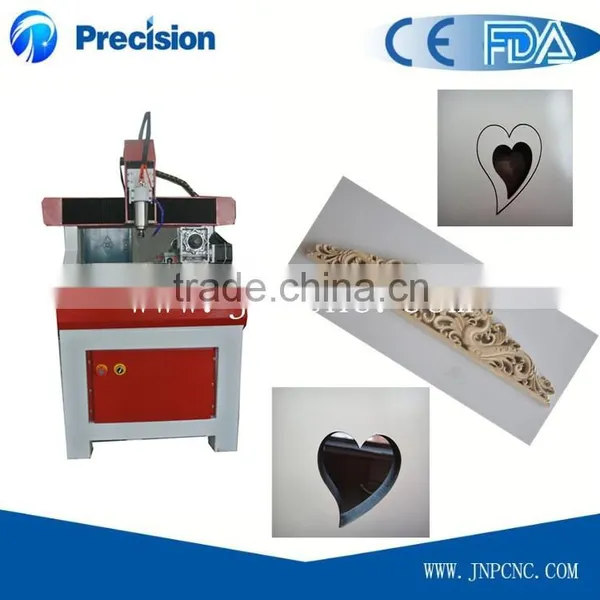

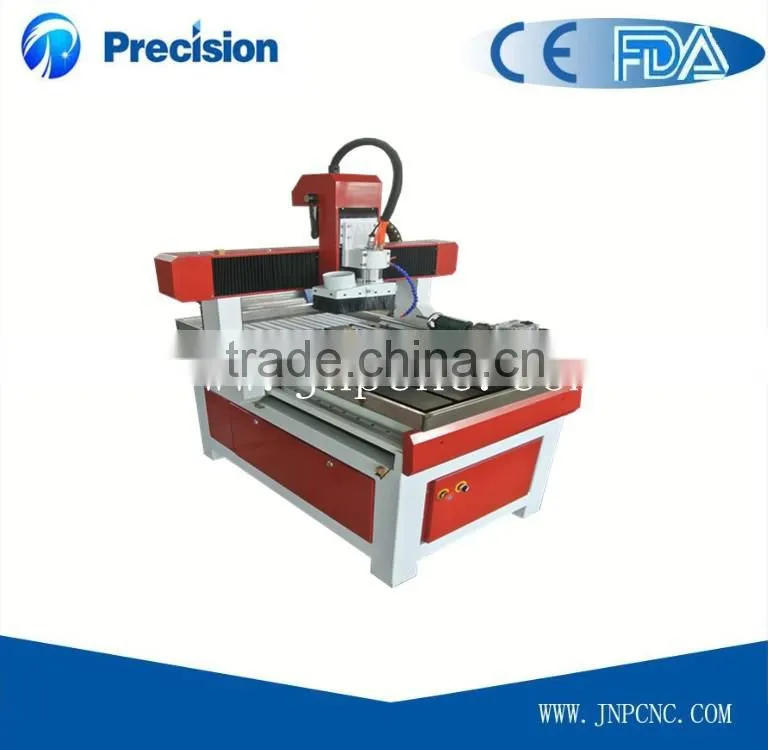

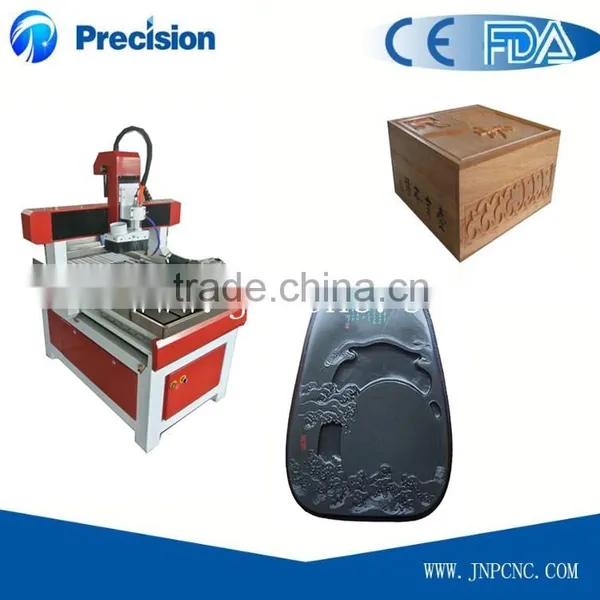

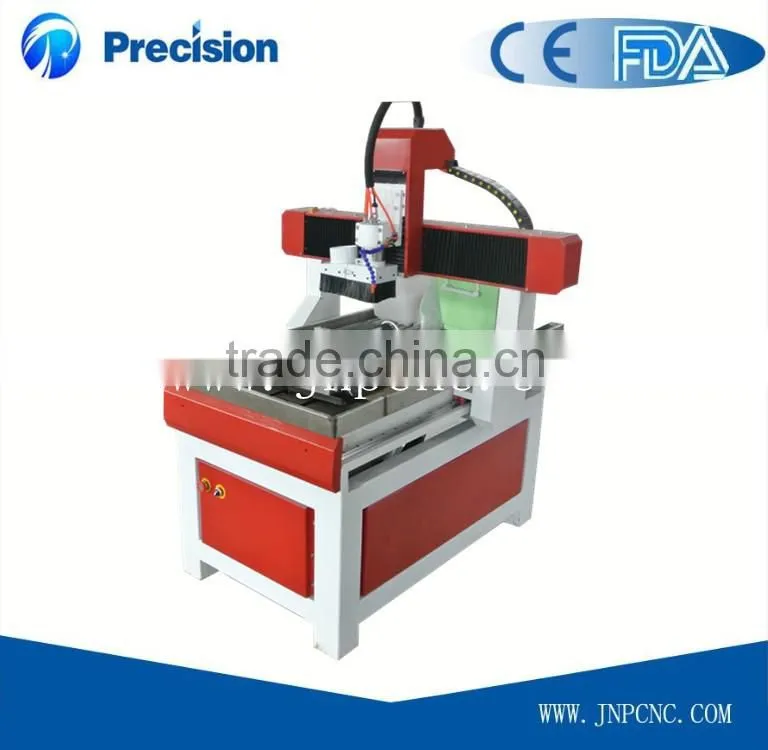

Machine pictures

Machine features

1.The frame is made of cast iron, making it very stable without deformation for a long time.

2.High performance 1.5kw water cooling spindle, designed to produce low noise and high power,safeguards high stability for a long time.

3.Taiwan ball scraws are used on X,Y,Z axis, to keep the engraving delicate without produing saw cutting effects.

4.Breakpoint memory function enables the machine to continue the unfinished work after a work shift or accidents, such as tool breaking.

5.Compatiable with many CAD/CAM software, such as Type3, Artcam.

Machine technicial parameters

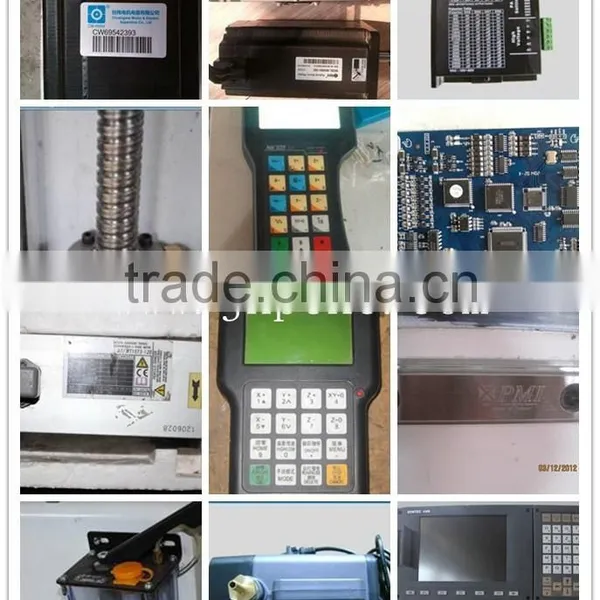

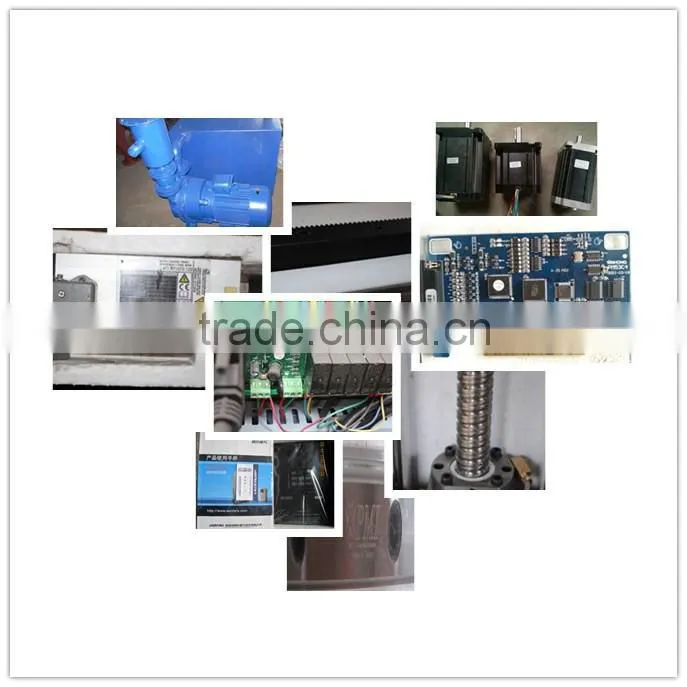

Machine main parts

1.Our cnc router adopts high speed(0-18000RPM),high torque and high precision 3.0kw air-cooling electric spindle,which is adjusted by Fuling inverter. This guarantees the high working speed and accuracy with low noise. It engraves without any ripple but with smooth bottom level and clear outline .

2.1).Our cnc router adopt the world famous rail and guide manufacturer Taiwan Hiwin square rails ,self-lubricating sliding block. This ensures equal force in all directions and accuracy and

strength of the machine.

2).Comparing with the round rail, the square rails has higher precision, less wear and tear. Square rails apply to high-speed move and greatly reduce the drive horsepower the machine required.

What’s more, it can bear the load from left and right/up and down at the same time.

3.DSP control system don't need connect to PC.It includs three parts, control card, U disk,and handle Controller.When you set the toolpath by the software(Artcam ,Type3,etc), then copy it to U disk,then insert U disk to control card ,the toolpath will show in the hand controller.You can control the tool cut or engrave.DSP is easily operate and learned,especially for the freshman. But it can’t show the whole Manufacturing process.

4.It is composed of screw, nut and ball, and its function is to convert rotary motion to linear motion.

1).High sensitivity. (no vibration, no crawling, synchronicity is good).
2).High positioning accuracy. (can realize zero clearance transmission,)
3).Long service life. (is more than 4 times than the normal ball screw.)

Machine samples

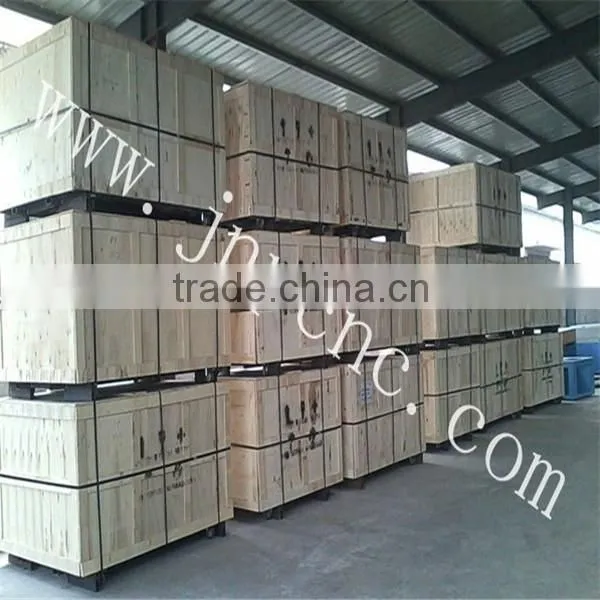

Packaging&Shipping

Packaging Detail: packed in ply-wooden box

Delivery  Detail: within 10 working days

All cnc router are packed with standard inner plastic wrap and outer plywood case, inner package would be help to tight all the small parts in the package. And the plywood is firm enough to protect the laser machine during shipping.

Our services

1.Before-Sale:we will try to know your requests about what work you will do and help you choose the most suitable machine specification & give you the best solution.

2.During Production: we will send photos of machines during production. so customers can know more details about the procession of making their machines and give them suggestions.

3.After Shipping: we will give you the tracking information of the sea vessel so customers can know when it will arrive at your port and make enough preparation.

4.About Training: there are some manual and video about how to install & use machine , if you have any questions you can contact me any time, then i arrange our professional technicians to help you by video,pictures,call or email.

5. About Warranty: 24 months for the whole machine.Within 24 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free.

6. Service In Life-Time: No matter how many years passed, you always can contact me,we can give you any technical support in the future life-time.

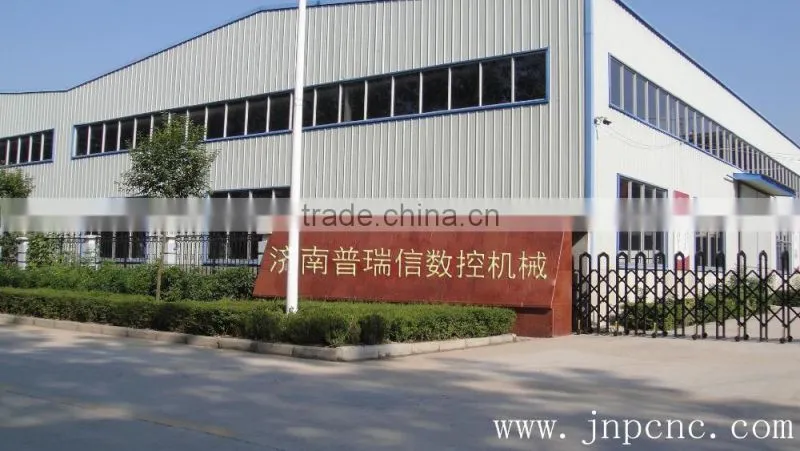

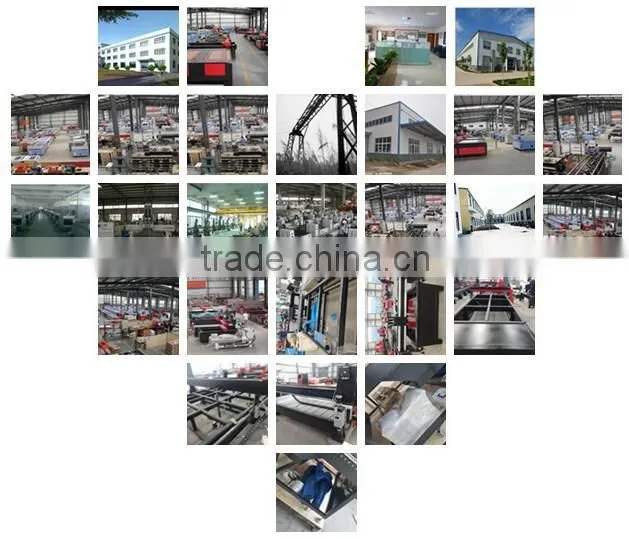

Company information

Jinan Precision Machinery  is high-tech company which is specialized in Research and developvarious cutting and engraving machinery. We learn from foreign advanced technology, adoptimported high quality spare parts to guarantee machine quality. Our products have approvedCE FDA certificates .Main product: CO2 laser machine, Fiber laser machine, CNC router, Plasma cutting machine.

Our cooperation brand

Our friends

FAQ

Q1 : I knew nothing about this machine, what kind of machine i should choose?
     Very easy to choose. Just tell us what you want to do by using cnc router/laser machine ,

then let us give you perfect solutions and suggestions.
Q2: When i got this machine, but i did not know how to use it.What should i do?
     We will send video and english manual with the machine.If you still have some doubts,

we can talk by telephone or skype.
Q3:  If some problems happened to this machine during warranty period,what should i do?

     We will supply free parts in machine warranty period if machine have some problem.

While we also supply free after-service forever,so any doubts,just let us know,we will give you solutions as soon as possible.

Dear sir or madam,

If you are interested in our products or our services,please do not hesitate to contact us,you will get the best reliable products

in reasonable prices here.

Contacting information
