stone engraving cnc router 1325,cnc stone carving machine 1325,engraving machine stone

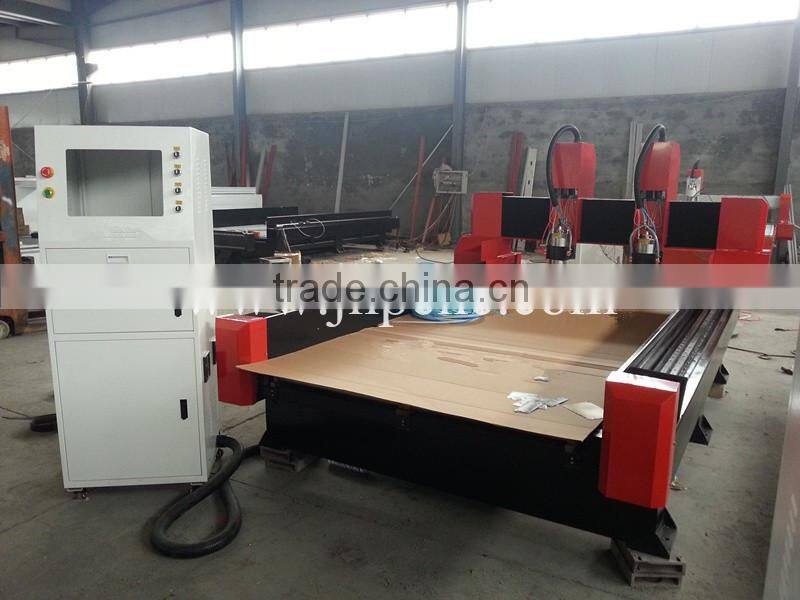

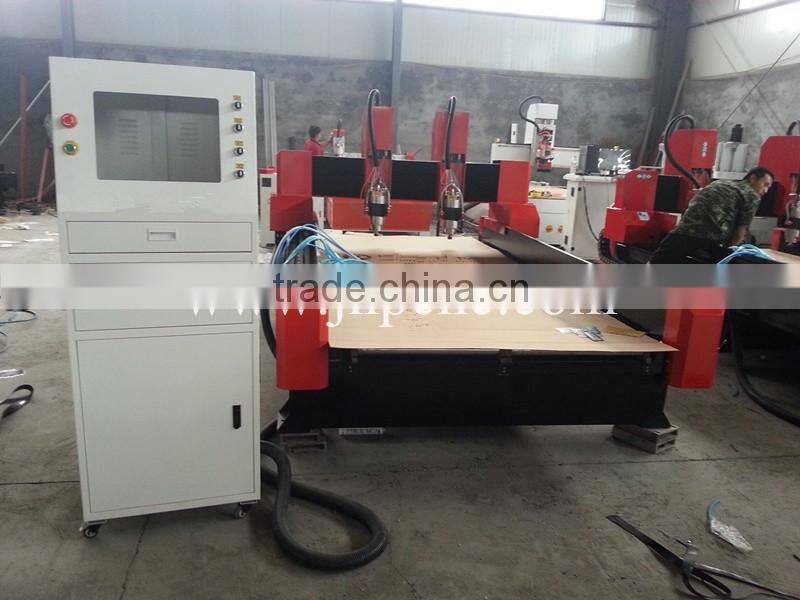

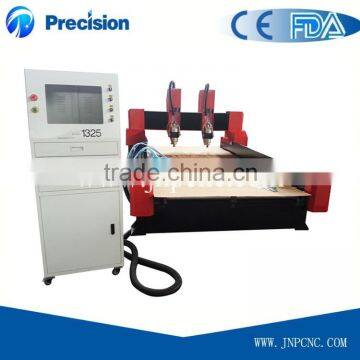

cnc stone engraving router machine 1300*2500mm JPS1325-2
| Machine features |
1.Very heavy duty body(12mm steel body).Cast steel structure makes cnc routers more stable. Stone carving cnc router has special plastic cooling pipe and water tank. |
2.Movement parts: imported high accuracy TBI ball screw andTaiwan HIWIN ensures more stable movement and high accuracy(0.05mm). |
| 3.Easy operation: advanced file pre-processing functions to ensure speed and accuracy of operation. |
|
4.Compatible software: open softwares prots,compatible with processing codes created by many CAD/ CAM sofewares including Type3/Artcam/Ucancam/Wentai to pave the way for designs. |
Technical parameters | |
Description |
JPS1325-2 |
X,Y,Z working size |
1300*2500*200mm |
Working table |
PVC and T-slot aluminum table |
Motor |
Stepper motor 450B |
Lathe structure |
Welding steel tube frame |
Transmission |
Ball screw transmission for Z, Gear transmission for X,Y |
Driver |
Leadshine driver M860 |
Repositioning accuracy |
±0.02mm |
Inverter |
Fuling inverter |
Max. travelling speed |
6000mm/min |
Max. working speed |
3000mm/min |
Spindle power |
3.0kw Chinese water-cooling spindle |
Spindle speed |
0-24000RPM |
Working voltage |
220V/380V 50HZ/60HZ |
Operating system |
Nc-studio system |
Command code |
G code |
| Application Sample |
| 1.Stone processing: stone engraving machine is good at processing stone. |
| 2.Wood processing: processing of various furniture such as door, window, craft wood door, screen and so on. |
|
3.Plate processing: plastic chemical components, PCB, inner body of car, bowling tracks, stairs, epoxy resin, ABS, PP, PE and other carbon mixed compounds. |
| Samples |
|
| machine parts | ||

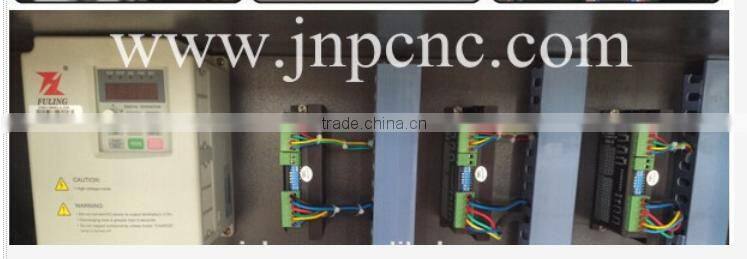

Control box

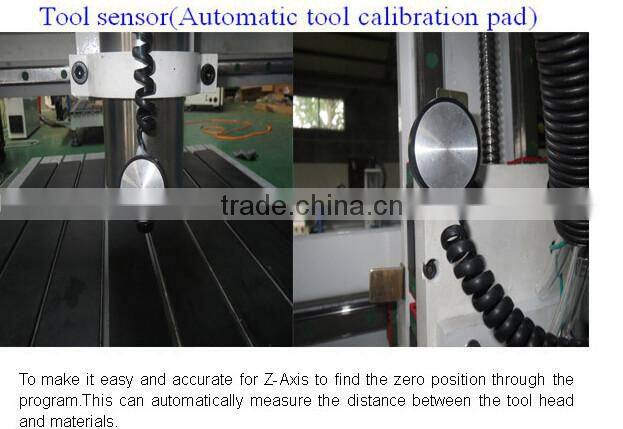

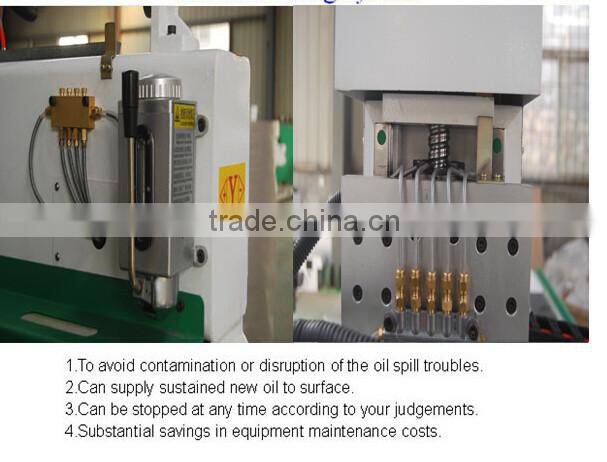

Detailed parts
|

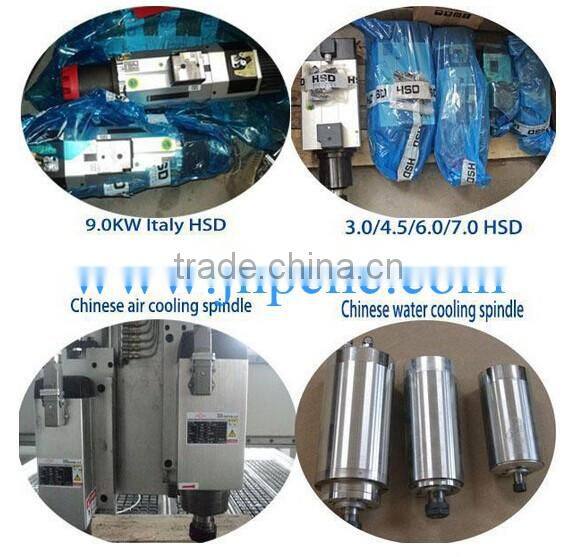

Note: All parts of our machne can be changed as you required. For example, water cooling spindle can change HSD
air cooling spindle from Italy; T-slot table can change vacuum table.
Jinan Precision Machinery is high-tech company which is specialized in Research
and develop various cutting and engraving machinery. We learn from foreign advanced
technology, adopt imported high quality spare parts to guarantee machine quality.
Our products have approved CE FDA certificates .
Main product: CO2 laser machine, Fiber laser machine, CNC router, Plasma cutting machine.
Any questions about our machines, prices, technical support, configurations,
please do not hesistate to contact us!
We are looking for distributors from all over the world!
| Shipping & Delivery |
| 1. Lead time: Within 7-12 working days after receiving payment. |

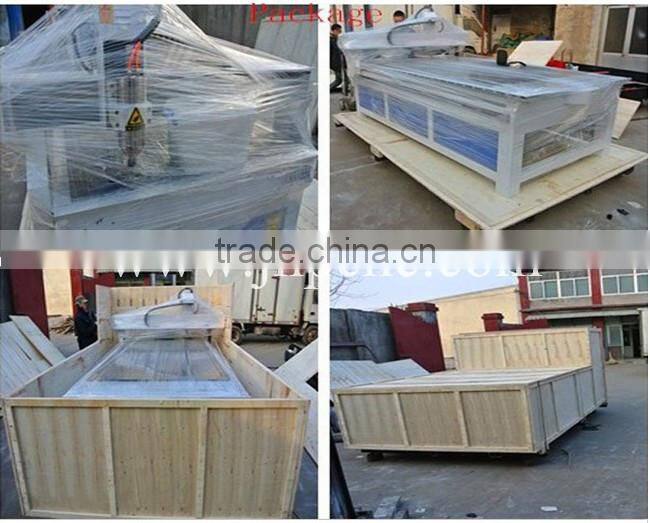

2. Packing: All laser machines are packed with standard inner plastic wrap and outer plywood case. |
After sale |
|
we have the mature after-sale service. →2 years quality guaranty. →Lifetime maintenance free of charge. →Providing distance teaching. →18 hours on line service and email each day, free technical support. |
| Our customers often ask |
| 1. This is the first time I use this kind of machine, is it easy to operate? |
We will send video and English manual with the machine.We also can provide distance teaching by our engineer till all of your problems solved. |
2. Payment method |
|
There are 3 ways to pay money . 1)T/T, means international bank transfer. 30% deposit, we produce the machine for you. 70% before shipping. It is convenient and fast. 2)Alibaba Secure payment. Reliable and safe, Alibaba will charge a little handling fee. 3)Paypay, pay 100% to Paypal, Paypal will protect your rights and charge 4.5% handling fee. No matter which one you choose, we will deliver this machine timely. |
If you have any questions, please contact me!
