LED Area Lighting

Name: LED Area Lighting
Brand: Sitatone
SKU: 125896767

US$ 190 - 220 MOQ: 1 Piece

Key Specifications

LED Light Source:

high power led chip

Input Voltage(V):

ac85-265v

Lamp Power(W):

150

Shenzhen Sitatone Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

LED Light Source high power led chip

Input Voltage(V) ac85-265v

Lamp Power(W) 150

Lamp Luminous Flux(lm) 15000

Lamp Luminous Efficiency(lm/w) 130

Color Temperature(CCT) Cool White

Working Temperature(℃) -40, +55

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum Alloy

IP Rating IP67

Certification CE, FCC, UL

Warranty(Year) 3

Place of Origin Guangdong, China

Brand Name Sitatone

Model Number L09-150W

Specifications

LED area lighting
In voltage:ac85-265v
light source:high power led
Lumen:130-140lm/w
Lead time:about 7 days

LED area lighting

street light led 150w

Product Specification

Led driver		Constant Current
Lumen Maintenance @50,000Hrs		>70%
Light chip		130-140lm/w Bridgelux 45mil led chip
Installation hole size		Φ61 mm
Power factor		≥0.98
Total hamornical distortion		≤9%
Illuminance Uniformity		0.4
Color Rendering Index		WW:Ra≥68; PW/CW:Ra≥75
Beam angle		60,120 degrees
LED Working voltage		DC38-48V
Each one LED Drive current		300-320mA
Input voltage		AC85V-265V
Frequency range		50Hz--60Hz
Junction Temperature		≤75°C
Working Temperature		-40°C~+55°C
IP Rate		IP67
LED Working life-span		≥50000H
Warranty		3 years

Shipment&Payment
MOQ	1PCS
Sample times	1-3 days
Delivery time	7-10 days
Shipping	DHL,UPS,FEDEX,HKP,by sea,by air
Payment Term	alipay,bank transfer,paypal,western union,MoneyGram


Warranty&Guarantee
Warranty	3 years

Our Advantages
Manufacturer	We are a 100% manufacturer, with best creditability, reliability and efficiency at our absolute promise.
Professional	We have been in this field of led light for more than 6 years
whole sale and retail	whole sale and retail are welcome,
Customized	We welcome our client provide idea or information to custom
price&quality	We are promise to provide the most competetive price to our client based on high quality

Detail picture

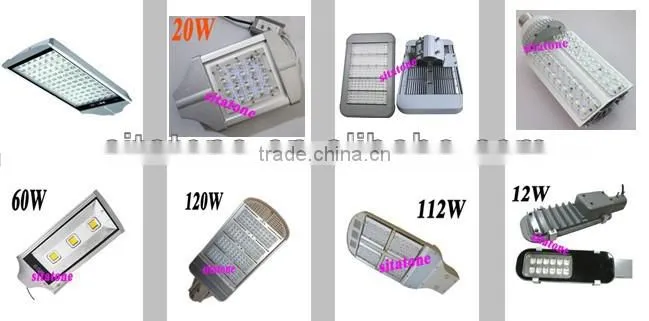

More lamp information from this series:
