Punched Hole 13.56MHz Rfid Magnetic Key Fob for Access Control System

1.Printing options

Offset printing(CMYK);

Silk screen printing(Panton Color);

Digital printing, inkjet printing, thermal printing;

- Hot stamp foil color ( gold, silver, laser red gold etc);

- ecurity logo printing;

- Hologram logo.

2. Size

- CR80: 2.125*3.375 inch (85.6*54 mm)or customized die cut shape;

- CR90: 3.63*2.37 inch ( 92.7*60.33mm)

- CR50: 88.9*43.69mm

- Thickness: Ultra-thin (without chip): 12mil(0.3mm), 14mil(0.36mm), 18mil(0.45mm),20mil(0.5mm);

- Thickness( with RFID Chip): 30mil(0.76mm), 24mil(0.6mm), 40mil (1.0mm);

3. Surface Processing Craft

- Lamination Glossy, Frosted, Dump, Matt , Sport UV, Epoxy or others special request.

4. Material

- PVC/PETG/PET/ABS/PLA

5. Optional Crafts

- Embossing name, number and date ( gold or silver color for options);

Barcode, QR code, Signature panel, magnetic strip, scratch-off panel, UV ;

Numbering: laser, thermal, DOD, ink jet, Embossing

Scratch-off Panels

6. Magnetic Stripes(LoCo/ HiCo)

1. Low coactivity (LoCo) and High coactivity (HiCo) magnetic stripes.

Encode data into track 1, 2, 3;

2. Magnetic size : 8mm / 12.5mm;

7. Technique Specification

Card Size: 85.6*54*0.76mm or Customized Size

Storage Temperature: -20~70 ℃

Operating Temperature: -20~70 ℃

Frequency: 125KHz/13.56MHz/860-960MHz

EEROM write time:  2.5ms

EEROM write endurance: 10,000cycles

EEROM data retention:  10years

Operating distance: LF: 2.5~5 cm; HF: 2.5~10 cm; UHF: 1-8 meters

Memory Capacity: 1KB,4KB,8KB ETC.

Read/Write: read and   write

Box

200/box   (21.5*9.5*6cm),

100/box(12*9.5*6cm),   or customized

Carton

1000/carton(23.5*21.5*17.5cm)

1500/carton(30.8*22.9*14.6cm)

2000/carton(51*23.5*14.5cm)

3000/caron(51*23.5*20cm)

5000/carton(51*23.5*33.5cm)

Or   Customized

Weight

1000/6kg(   without chip), 8kg/6kg with chip.

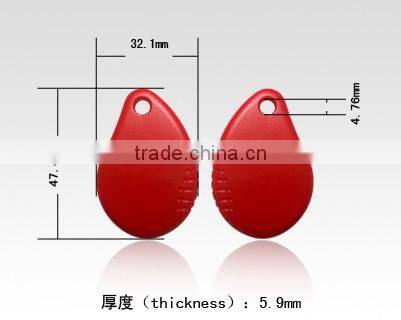

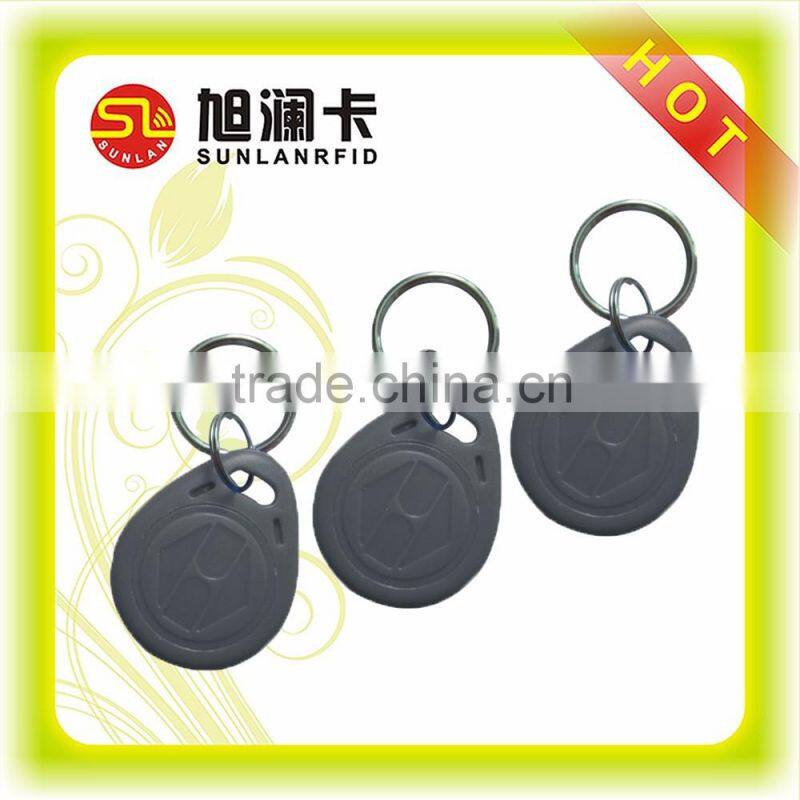

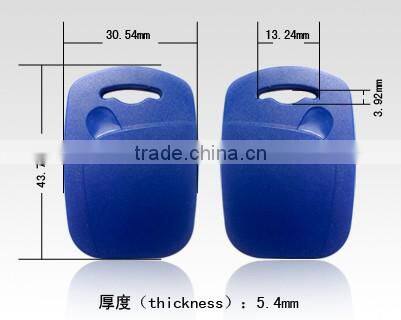

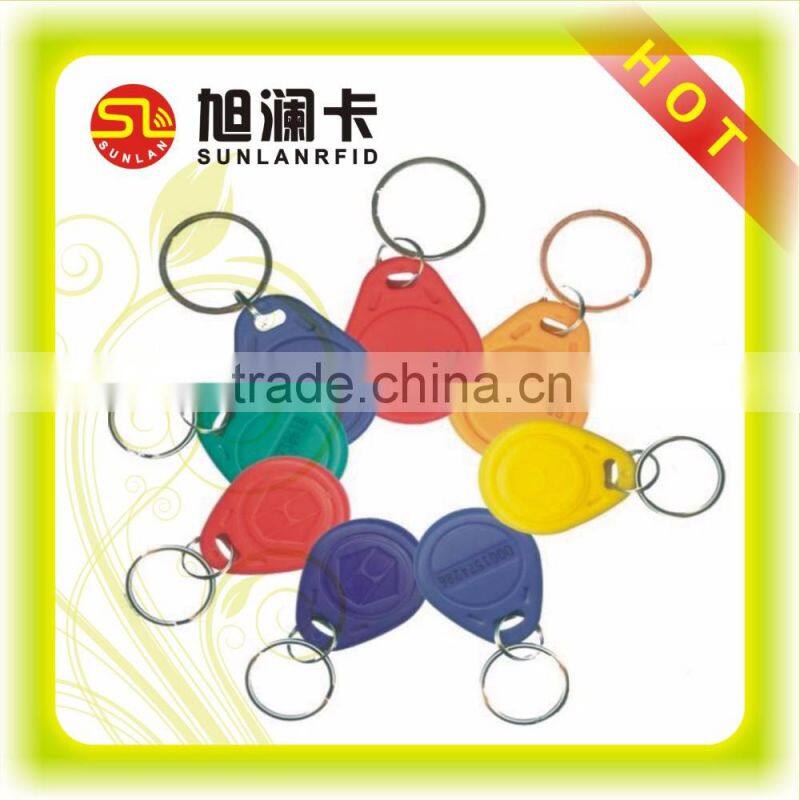

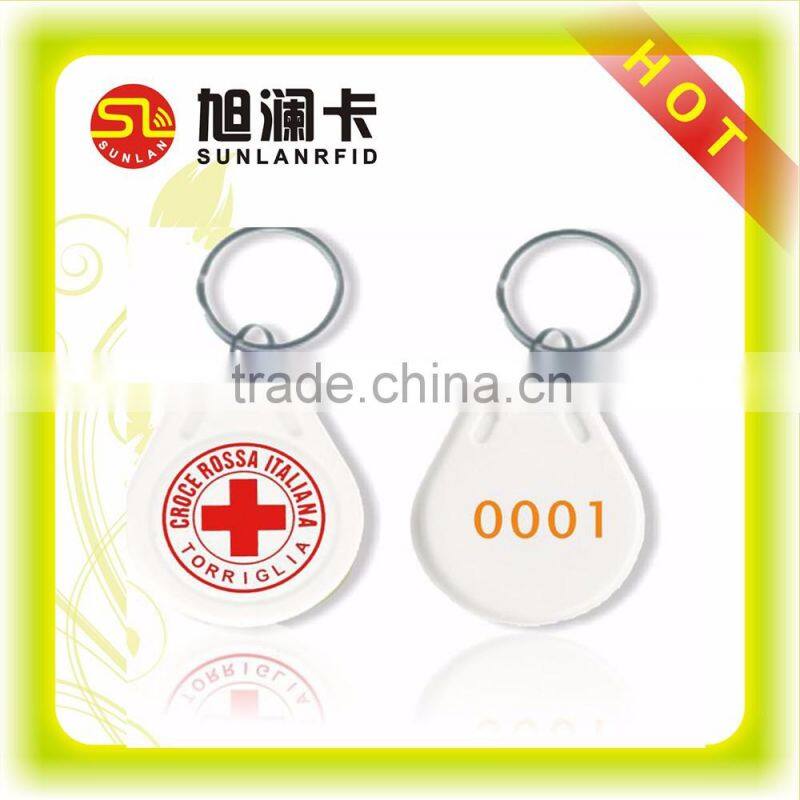

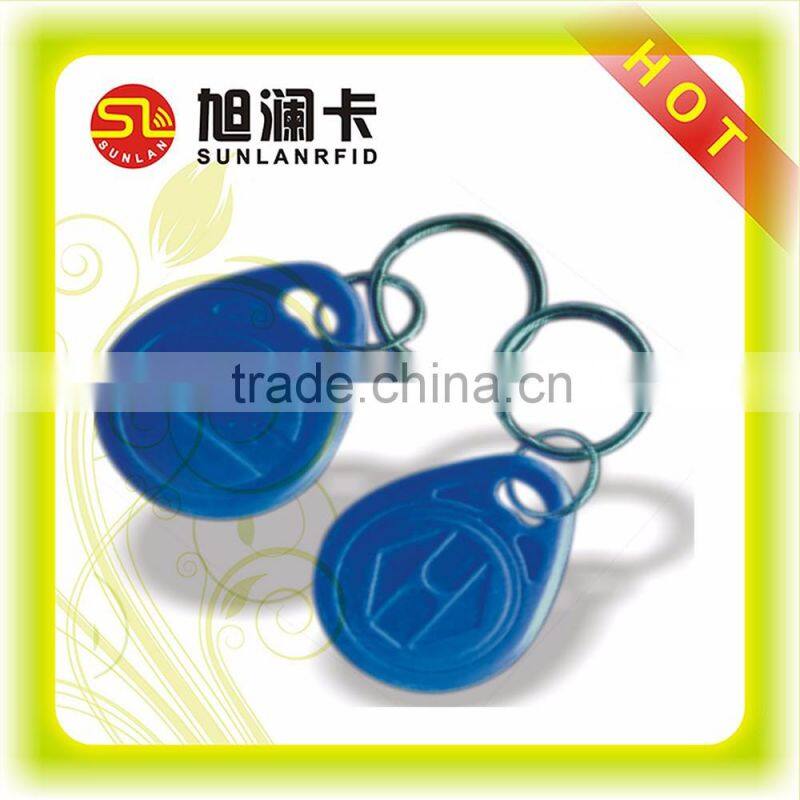

9. Sample picture
