25.6v Pcm for 8s Lifepo4 Battery Pack Rgb Led Pcb Board Assembly Pcb Supplier

FOB Price

Negotiable / Piece

10 Pieces(Min. Order)

Port Shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	LWS
Model Number	LWS-8S10A-047V1(8S)	Number of Layers	10-Layer
Base Material	FR-4	Copper Thickness	1oz
Board Thickness	0.1	Min. Hole Size	0.004"

Product Description

1.Product Description

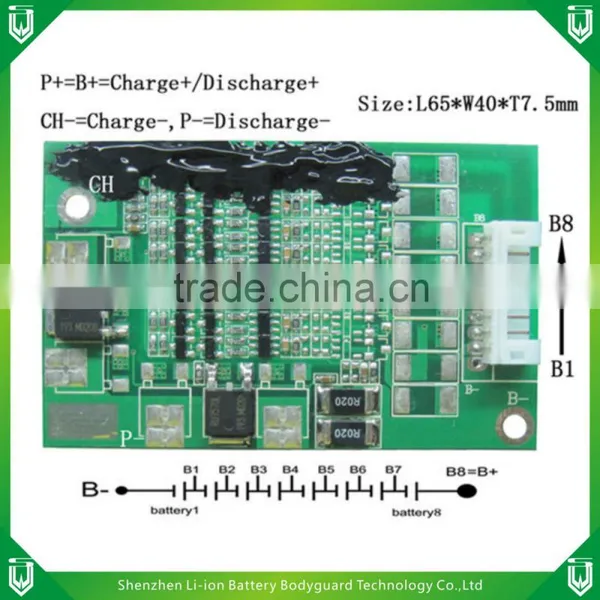

25.6v pcm for 8s lifepo4 battery pack rgb led pcb board assembly pcb supplier

Shenzhen Li-ion Battery Bodyguard Technology Co.,LTD
PCM Specifications For 25.6V(8S)LiFePO Battery Packs
Model: LWS-8S10A-047V1(8S)LiFePO
No.	Test item		Criterion
1	Voltage	Charging voltage	DC:28.8V 3.6/Cell
		Balance voltage for single cell	3.60±0.025V
2	Current	Balance current for single cell	36±5mA
		Current consumption	≤20μA
		Maximal continuous charging current	2A
		Maximal continuous Discharging current	2A
3	Over charge Protection	Over charge detection voltage for single cell	3.90±0.025V
		Over charge detection delay time	0.5S—2S
		Over charge release voltage for single cell	3.80±0.025V
4	Over discharge protection	Over discharge detection voltage for single cell	2.00±0.05V
		Over discharge detection delay time	10mS—200mS
		Over discharge release voltage for single cell	2.50±0.05V
5	Over current protection	Over current detection voltage	0.10±0.015V
		Over current detection current	10±2A
		Detection delay time	5ms—20ms
		Release condition	Cut load
6	Short protection	Detection condition	Exterior short circuit
		Detection delay time	200-500us
		Release condition	Cut load
7	Resistance	Protection circuitry(MOSFET)	≤20mΩ
8	Temperature	Operating Temperature Range	-40~+65℃
		Storage Temperature Range	-40~+125℃

We professionally manufacture lithium polymer battery and pcb for more than 5 years in China.

We have cooperated with HP,Emerson tool,NIke,WD.

Our company is established in 2013.

Product Certificates CE ROHS.

Quality control system certificates:ISO9001,ISO14001

2.Product Description

1.Complete products contract PCB assembly and manufacturing services

2.Circuir boards 2 to 30 layers PCB layout,fabrication, PCB assembly and box build

3.Active and passive components source is directly from original manufacturer

4.Enclosure cabinet case plastic injection molding,mental stamping,manufacture and assembly

5.High-precision 0201 size components SMT technology and lead-free

6.IC pre-program

7.Hight-precision E-Tasting

3.Services

1.after sales services

2.OEM,ODM,Customized Design

3.We can provide 24 hours service for you. We pride ourselves on our ability to custom tailor programs around our customers'needs. We take time to listen to your unique business needs and then set out to surpass them

4.FAQ

Payment Term:L/C,T/T,PayPal

Can provide variouse capacity and size is per your requirements.
