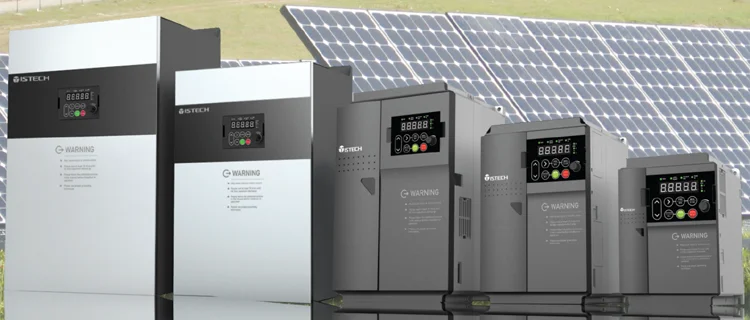

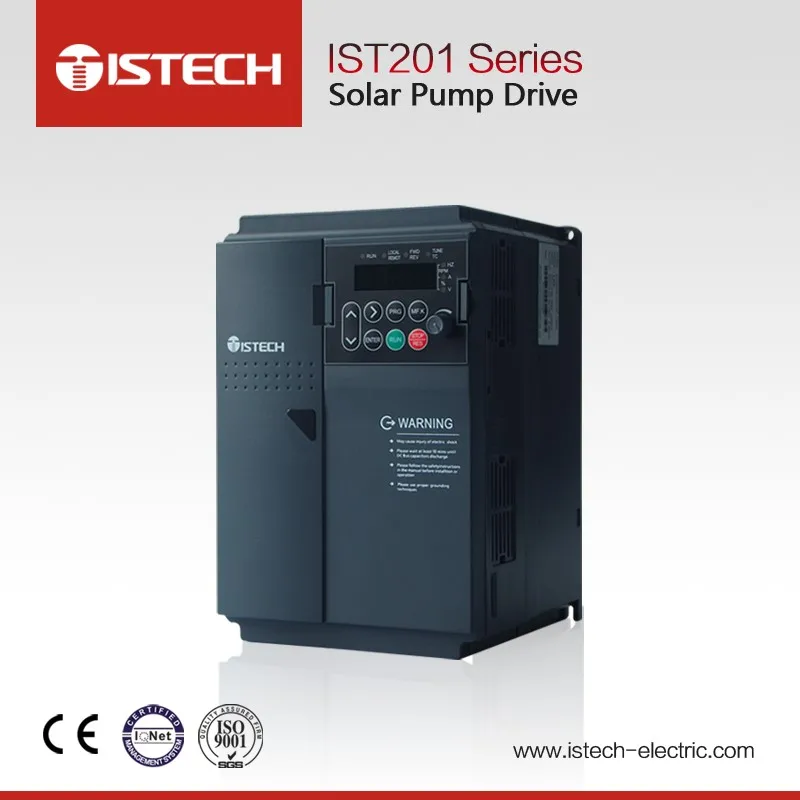

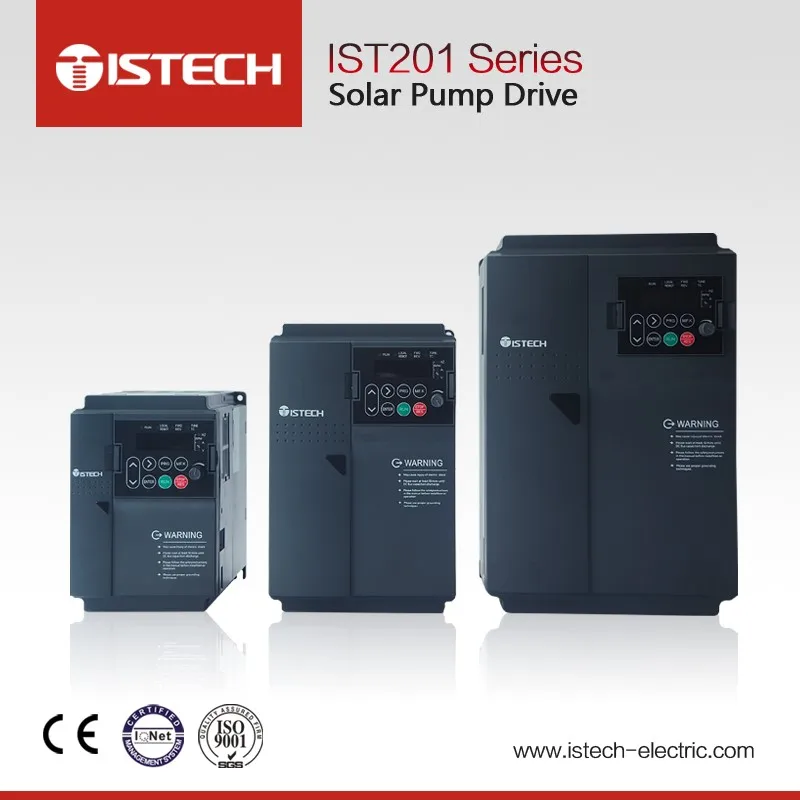

Help CenterISTECH IST201 Solar LV VFD 0.75kW/1HP 3phase 380V
Related Products
-
ISTECH IST201 Solar LV VFD System 0.75kW/1HP 3phase 380VUS$ 1 - 999MOQ: 1 Piece -
ISTECH IST201 Solar Pump LV VFD System 0.75kW/1HP 3phase 380VUS$ 1 - 999MOQ: 1 Piece
-
ISTECH IST201 Solar Pumping LV VFD 0.75kW/1HP 3phase 380VUS$ 1 - 999MOQ: 1 Piece
-
ISTECH IST201 Solar Water Pump LV VFD 0.75kW/1HP 3phase 380VUS$ 1 - 999MOQ: 1 Piece
-
ISTECH IST201 Solar Water Pumping LV VFD System 0.75kW/1HP 3phase 380VUS$ 1 - 999MOQ: 1 Piece
Product Application

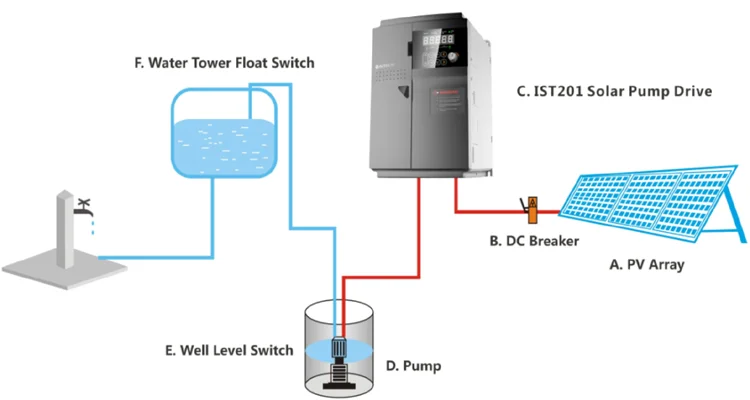

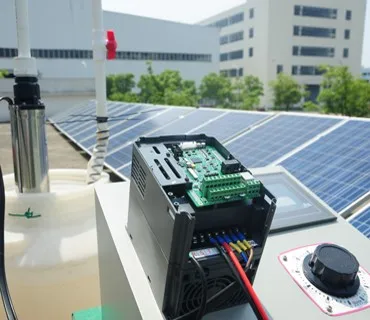

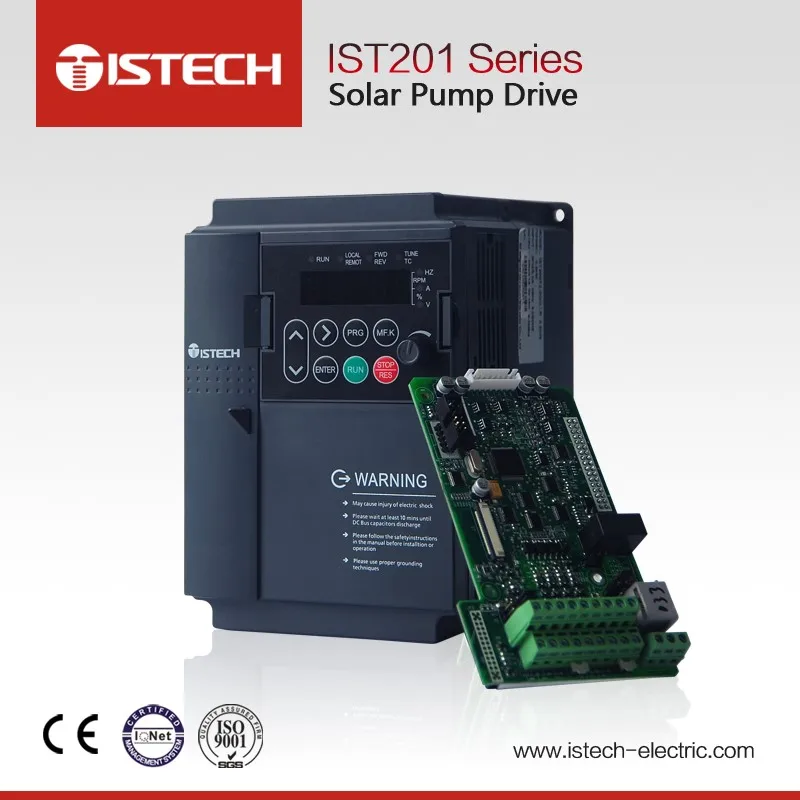

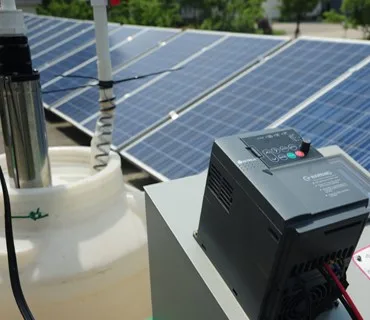

IST201 Solar Pump Drive Series is special application for Solar Water Pump System,Which mainly applied to
industries of agriculture and forestry irrigation, desert control, grassland animal husbandry and municipal water.
Main Features
1. Vector Control, More Power to Pump;
2. MPPT Max. power tracking, More Efficiency to Pump;
3. Automatic Stop and Restart
(1) Stop at high water level and restart at low water level;
(2) Stop at sunrise and sundown and restart at strong sunlight;
4. Protection of water level sensor avoiding pumping after water supply dries up;
5. TI DSP technology , Infineon PIM design, Built-in C3 filter;
6. Protection functions of overcurrent, overvoltage and over temperature, achieving reliable, automatic and unattended running.
DSP CPU
Brand: TI
Original: USA
High performance static CMOS Technology
Up to 150MHz (6.67ns cycle time)
High performance 32 bit CPU (TMS320C28x)
IEEE-754 single precision floating point unit (FPU)
IGBT
Brand: Infineon
Original: Germany
Capacitor
Brand: EPCOS
Original: Germany
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use
the machine.
* Engineers available to service machinery overseas.
Shanghai ISTECH (CNC Group)
Shanghai ISTECH Electric Co., Ltd. is a high-tech
enterprise belongs to CNC Electric Group.
The headquarters is located in Shanghai, China.
ISTECH focuses on R&D, manufacture and sales
of Variable Frequency Drive (VFD). With the
pursuit of "green energy saving and customer
value promotion". ISTECH committed to providing quality products and services to customers and always enjoy a
good reputation on the global VFD market.
Electronic Factory
Whole Set Factory
Medium Voltage VFD Test
Low Voltage VFD Test
1600kW On load Test Motor
R&D Center
1. What's the relationship of ISTECH and CNC Electric Group?
Shanghai ISTECH is a subsidiary of CNC Electric Group, which established in 1988, Top 500 electric enterprise in China.
2. What's the Variable Frequency Drive ?
Variable Frequency Drive is shortname as VFD, VSD, Inverter, AC Drive and so on. Which can adjust the motor's rotator speed, change the frequency.
3.What's the basic functions of VFD?
1)Soft start, 2) Stepless speed regulation, 3) Energy saving, 4)Multiple protection, 5)Automation.
4.How long the life of VFD?
Although VFD is a static device, but include the consuming device such as filter, capacitor, cooling fan. If they are regular maintenance, VFD is expected to use for more than 10 years.
5.What's the difference between Soft start and VFD?
Soft starter is actually a voltage regulator for motor starting, only change the output voltage; VFD not only change the voltage, but also change the frequency, adjusting the motor's rotator speed.
6.How to select the suitable AC Drive according to the different load?
A. Fan and Pump: Normally, select the same power capacity of VFD for motor. (But Air compressor, deep water pump, mud pump, the rapid change of the music fountain need to increase capacity).
B. Crane: Due to Start impact is very big, select the more power capacity of VFD for motor. Meanwhile, when the weight is lowered, there is an energy feedback, so the brake unit or the common bus mode is used.
C. Uneven load: Sometimes light weight, sometimes heavy, should select the power capacity of VFD according to the heavy load, such as steel rolling mill machinery, crushing machinery, mixer, etc..
D. Large inertia load: Select larger power capacity of VFD for this kind load, to speed up the start and avoid oscillation.
