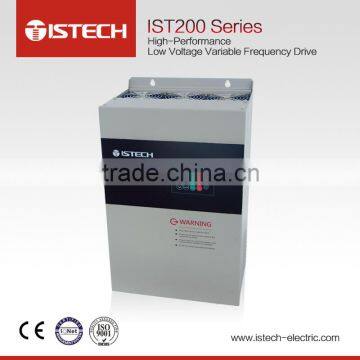

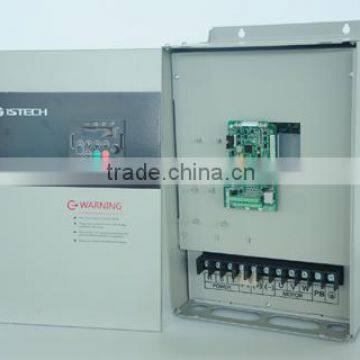

Help CenterMost Popular IGBT Frequency Converter 3-phase Ip20 18.5KW for Textile
Related Products
-
Most Popular IGBT IP54 Frequency Converter 440v 18.5KW for TextileUS$ 1 - 600MOQ: 1 Piece -
Most Popular IGBT IP54 Frequency Converter 480v 18.5KW for TextileUS$ 1 - 600MOQ: 1 Piece
-
Most Popular IGBT IP54 Frequency Converter 380v 18.5KW for TextileUS$ 1 - 600MOQ: 1 Piece
-
Most Popular IGBT IP54 Frequency Converter 220v 18.5KW for TextileUS$ 1 - 600MOQ: 1 Piece
-
Most Popular IGBT IP54 Frequency Converter 3-phase 18.5KW for TextileUS$ 1 - 600MOQ: 1 Piece
Product Application

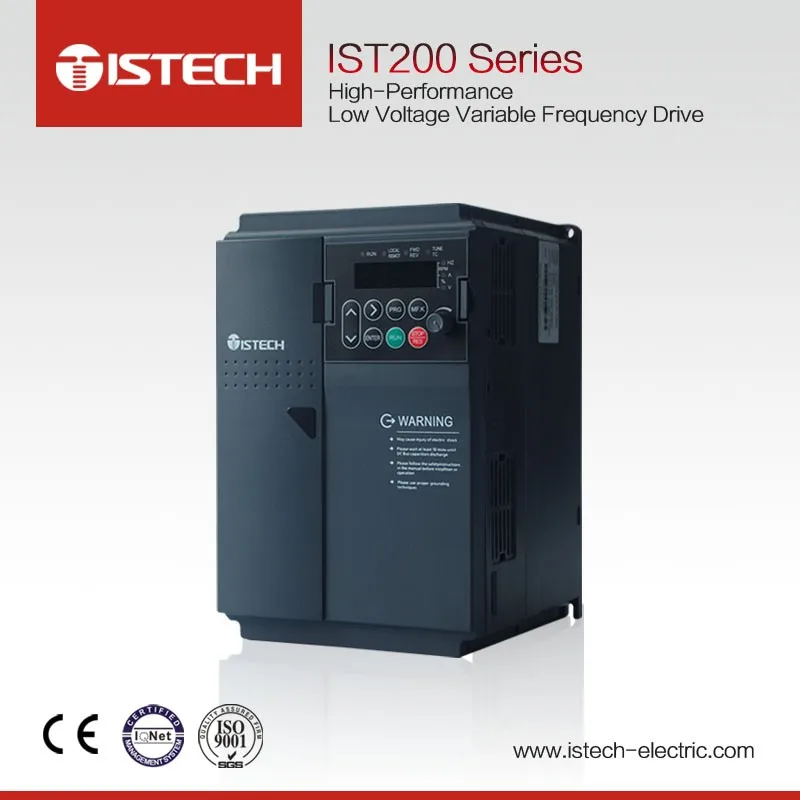

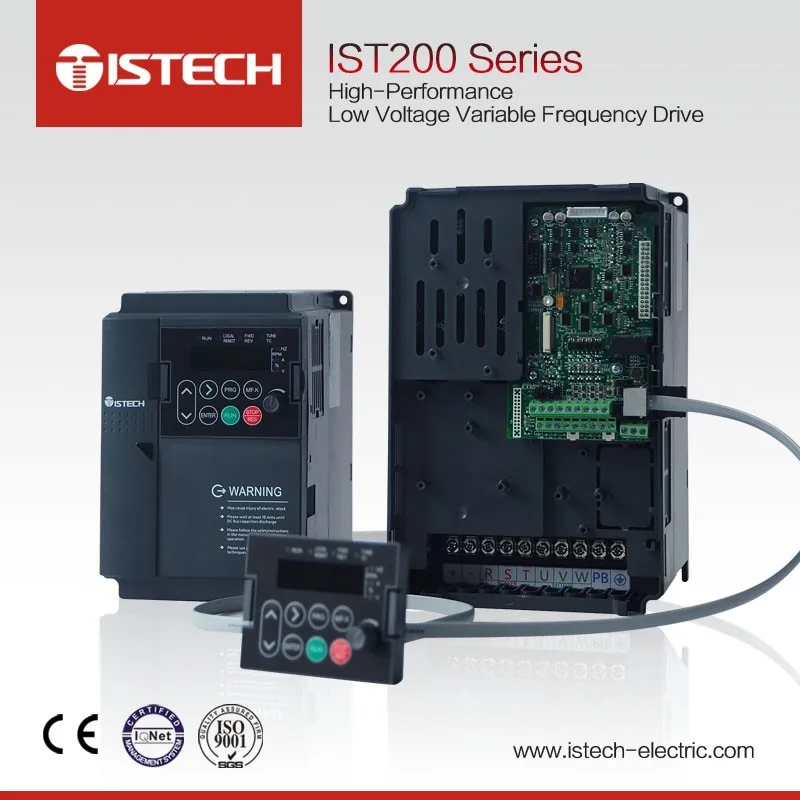

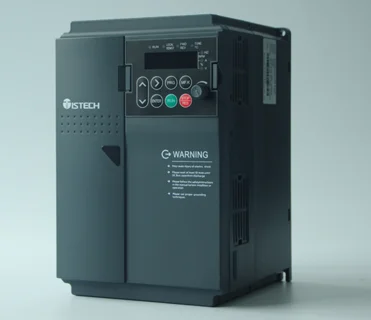

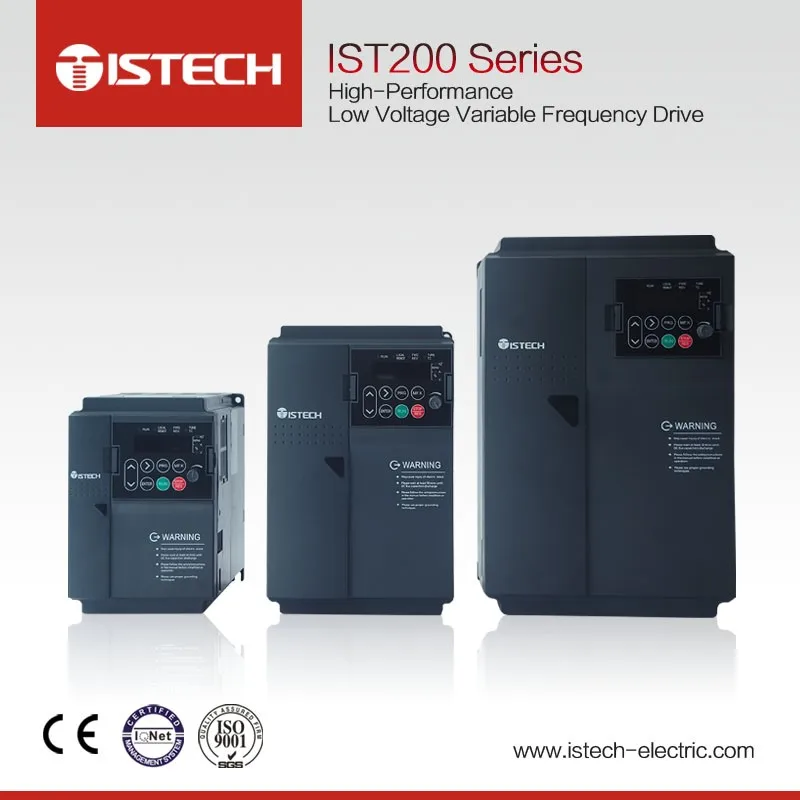

ISTECH IST200 Vector Control IGBT General Drive 3.7kW 415Vac For Textile
IST200 series AC drive is a general-purpose high-performance current vector control AC drive.
It is used to drive various automation production equipment involving textile, paper-making, wiredrawing, machine tool, packing, food, fan and pump.
General Specification
Input voltage: 1Phase 220V, 3Phase 220V,380V,415V,480V
Output voltage: 3Phase 220V,380V,415V,480V
Adaptable Motor:
1Phase 220V 0.75kW-5.5kW 1hp-7.5hp
3Phase 220V 0.75kW-75kW 1hp-90hp
3Phase 380V 0.75kW-400kW 1hp-450hp
3Phase 480V 0.75kW-400kW 1hp-450hp
DSP CPU
Brand: TI
Original: USA
High performance static CMOS Technology
Up to 150MHz (6.67ns cycle time)
High performance 32 bit CPU (TMS320C28x)
IEEE-754 single precision floating point unit (FPU)
IGBT
Brand: Infineon
Original: Germany
Capacitor
Brand: EPCOS
Original: Germany
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Shanghai ISTECH (CNC Group)
Shanghai ISTECH Electric Co., Ltd. is a hightech
enterprise belongs to CNC Electric Group.
The headquarters is located in Shanghai, China.
ISTECH focuses on R&D, manufacture and sales
of Variable Frequency Drive (VFD). With the
pursuit of "green energy saving and customer
value promotion", ISTECH committed to providing quality products and services to customers and always enjoy a
good reputation on the global VFD market.
Electronic Factory
Whole Set Factory
Medium Voltage VFD Test

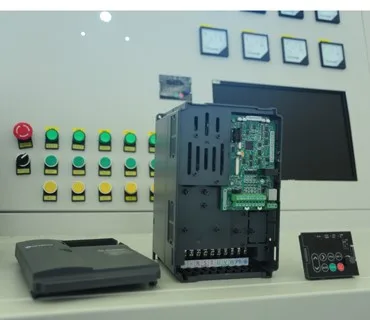

Low Voltage VFD Test
1600kW On load Test Motor
R&D Center
1. What's the relationship of ISTECH and CNC Electric Group?
Shanghai ISTECH is a subsidiary of CNC Electric Group, which established in 1988, Top 500 electric enterprise in China.
2. What's the Variable Frequency Drive ?
Variable Frequency Drive is shortname as VFD, VSD, Inverter, AC Drive and so on. Which can adjust the motor's rotator speed, change the frequency.
3.What's the basic functions of VFD?
1)Soft start, 2) Stepless speed regulation, 3) Energy saving, 4)Multiple protection, 5)Automation.
4.How long the life of VFD?
Although VFD is a static device, but include the consuming device such as filter capacitor, cooling fan. If they are regular maintenance, VFD is expected to use for more than 10 years.
5.What's the difference between Soft start and VFD?
Soft starter is actually a voltage regulator for motor starting, only change the output voltage; VFD not only change the
voltage, but also the frequency, adjusting the motor's rotator speed.
6.How to select the suitable VFD according to the different load?
A. Fan and Pump: Normally, select the same power capacity of VFD for motor. (But Air compressor, deep water pump, mud pump, the rapid change of the music fountain need to increase capacity).
B. Crane: Due to Start impact is very big, select the more power capacity of VFD for motor. Meanwhile, when the weight is lowered, there is an energy feedback, so the brake unit or the common bus mode is used.
C. Uneven load: Sometimes light weight, sometimes heavy, should select the power capacity of VFD according to the heavy load, such as steel rolling mill machinery, crushing machinery, mixer, etc..
D. Large inertia load: Select larger power capacity of VFD for this kind load, to speed up the start and avoid oscillation.
