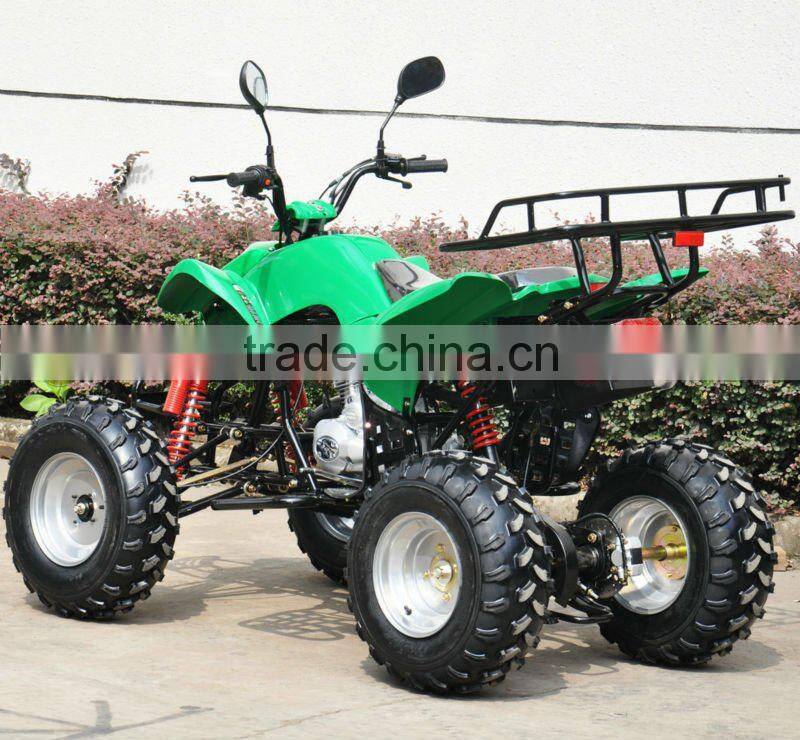

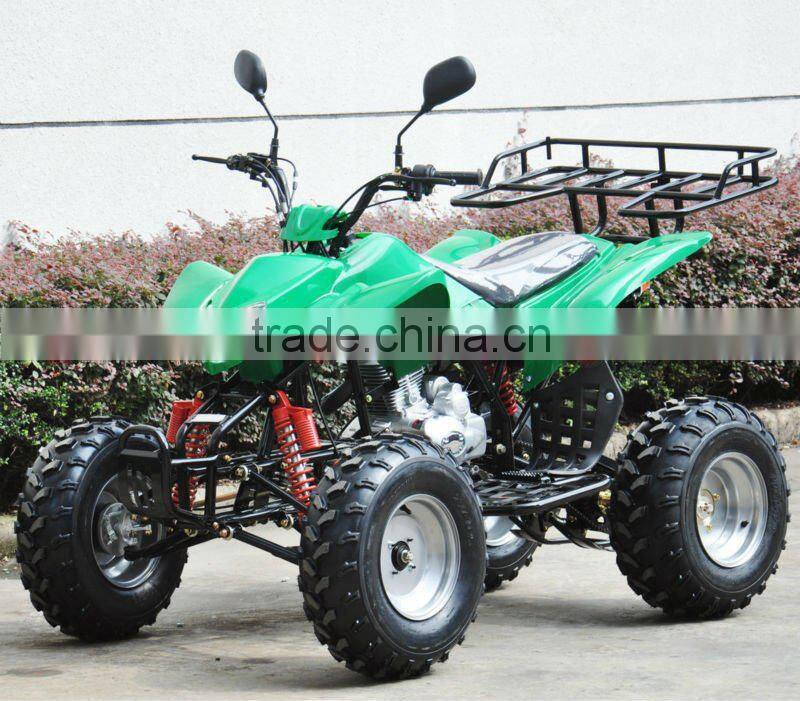

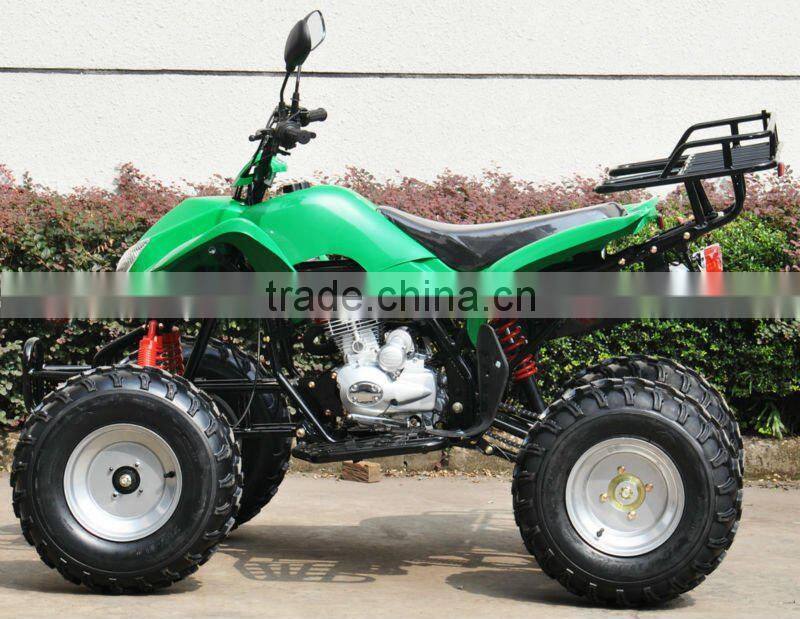

Help CenterCheap Price 200cc Quad Atv 4x4 Utility Atv / ATV012
Related Products
-
High Quality 150cc CVT, 200cc CVT, 250cc Manual ATV Quad (ATV013)US$ 699 - 899MOQ: 10 Pieces -
49cc Atv for Kids(ATV-1)US$ 115 - 150MOQ: 20 Pieces
-
2014 New Model 2-Stroke Mini Quad ATV For KidsUS$ 110 - 150MOQ: 30 Pieces
-
China Cheap Mini Quad, ATV Quad / ATV-6US$ 135 - 170MOQ: 30 Pieces
-
Automatic 49cc Mini ATV Quad For KidsUS$ 139 - 199MOQ: 30 Pieces
Specifications
Specifications1)Big Size Off Road ATV
2)Could use 150cc, 200cc or 250cc Engine
3)Wheel Size 8" or 10"
SPECIFICATION
ENGINE
Engine Type:Single cylinder,air-cooled, 4 stroke 150cc CVT (200cc or 250cc optional)
Ignition: CDI
Start mode Electric start
Lubrication: combined force-feed and splash lubrication
Front Tread: 820mm
Rear Tread: 750mm
Wheelbase 860mm
Net Weight: 155kg
Gross Weight :180kg
Ground Clearance: 200mm
Front Wheel: 21/7-8
Rear Wheel: 20/9.5-8
Front Brake: manual disk brake
Rear Brake: foot disk brake
Transmission System: chain drive
Seat height: 900mm
max climbing ability:17°
Speedo optional
Max Power Kw(r/min): 5.9/7500kw/(r/min)
Max torque: 8.3/6000N·m/(r/min)
Min fuel consumption: 354g/kw.h
Battery: 12V9AH
Turning degreedegree: ±23
Min. Turning radius(mm): 3500±300
parking performance(°): ≤15
Initial SpeedS: ≤30
Surpassing PerformanceS: ≤30
Breaking Stability: ≤2.5
Max Speed: 65(Km/h)
Max Loading: Capacity 90KG
Tank Capacity: 4L
Carton Size: 1475mmx845mmx805mm
Container Quantity: 66pcs/40HQ
1. Q: Can I get some samples?
A: We are honored to offer you samples for quality check.
2. Q: Do you have the products in stock?
A: No. All bikes are to be produced according to your order including samples.
3. Q: What’s the delivery time?
A: It usually takes about 25 working days to produce an order from MOQ to 40HQ container. But the exact delivery time might be different for different orders or at different time.
4. Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
5. Q: How does your factory do regarding quality control? A: Quality is priority. Highper People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
6. Q:What's your warranty terms? A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.
7. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Highper has been alibaba’s Gold supplier since 2004. If you check with alibaba, you will see that we have never got any complaint from our customers.
